Galvanized Wirec

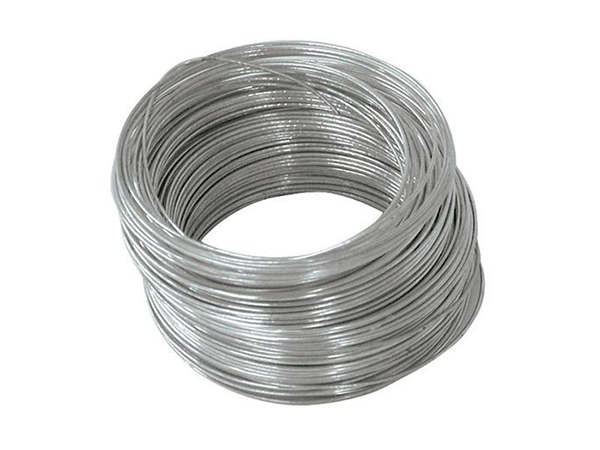

Electro galvanized wire, also called cold galvanized wire, is made of high quality carbon steel wire. The processing of this wire is to use electrolytic equipment for galvanizing. In general, the zinc coating is not very thick, but the electro galvanized wire has enough anti-corrosion and anti-oxidation. In addition, the zinc coating surface is very average, smooth and bright. Electro galvanized wire zinc coated commonly is 8–50 g/m². This wire is mainly used to make nails and wire ropes, wire mesh and fencing, binding of flowers and wire mesh weaving.

Specification:

· Material: carbon steel wire.

· Processing: steel rod coil – wire drawing – wire annealing – rust removing – acid washing – boiling – drying – zinc feeding – wire coiling.

· Wire diameter: 6–24 gauge (0.55–5 mm).

· Tensile strength: 350–550 N/mm².

· Elongation: 8% – 15%.

· Function: to form coil wire, spool wire or processed into cut wire or U type wire.

· Type: common use wire, light galvanized soft wire, heavily galvanized soft wire, extra-heavily galvanized soft wire and high carbon wire.

Feature:

· Firm zinc coating.

· Good anti-corrosion and anti-oxidation.

· Wide application.

Application:

· Mesh weaving.

· Tying wire in architectural site.

· Making handicrafts.

· Material of mesh and fence.

· Packing life products.

Packing:

· Detail:

Inside plastic films, outside hessian cloth.

Inside plastic films, outside moister-proof paper.

· Total:

In coils or spools (single coil weight ranges from 10 kg to 1000 kg).

In carton or pallet.

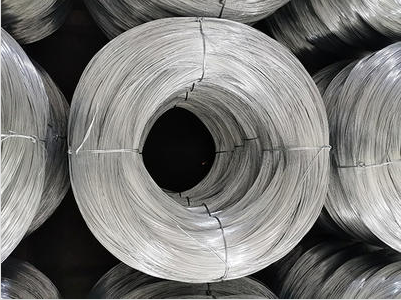

Hot dipped galvanized wirebelongs to the primary wire products of galvanization. The common sizes of hot dipped galvanized are from 8 gauge to 16 gauge, we also accept smaller or bigger diameter for customers' choices. Hot dipped galvanized wire with firm zinc coating provides strong corrosion resistance and high tensile strength. This kind of wire is widely used for making handicrafts, woven wire mesh, forming fencing mesh, packing products and other daily uses.

Specification:

· Material: low carbon steel wire.

· Common diameter: 8 gauge to 16 gauge.

· Processing: steel rod coil – wire drawing – annealing – rust removing – acid washing – zinc plating – wire coiling.

· Common zinc coating: 30–60 g/m². Also accept other sizes.

· Heavy zinc coating: ≥100 g/m², max. 300 g/m².

· Tensile strength: 500–800 MPa.

Feature:

· Higher tensile strength.

· Good flexibility and softness.

· Uniform zinc coating.

· Strong corrosion resistance.

Application:

· Nails.

· Handicrafts.

· Woven wire mesh.

· Express way fencing mesh.

· Packaging of products.

· Other daily uses.

Package:

· Detail:

Inside plastic films, outside hessian cloth or woven bag.

Inside plastic films, outside moister-proof paper.

· Total:

In coils or spools (single coil weight ranges from 10 kg to 1000 kg).

In carton or pallet.

Redrawing galvanized wirecan be divided into two types: electro galvanized redrawing wire and hot-dipped galvanized redrawing wire. Its production process is steel wire rod - the first drawing - annealed - galvanized - the second drawing. As material of fence and material, redrawing galvanized wire has excellent tensile strength and flexibility. In addition, the cost of redrawing galvanized wire is more cheaper than common galvanized wire.

Specification:

· Material: high quality low carbon steel, iron wire.

· Production process: steel wire rod - the first drawing - annealed - galvanized - the second drawing.

· Treatment: zinc coated.

· Surface: bright, smooth.

· Type: electro galvanized redrawing wire, hot-dip galvanized redrawing wire.

· Diameter: 9 gauge – 38 gauge (3.65 mm – 0.15 mm).

Characteristic:

· Excellent tensile strength and flexibility.

· Beautiful, bright and smooth surface.

· Enduring fastness.

· Anti-corrosion and anti-oxidation.

· Long service life.

Application:

· Reinforcing construction wire mesh.

· Welded wire mesh panels.

· Chain link fence.

· Crimped wire mesh.

· Nails brush steel rope.

· Construction and handcraft products.

Package:

· Detail:

Plastic film inside and hessian cloth outside.

Plastic film inside and woven bag outside.

· Total:

In carton and wooden pallet

In carton and metal pallet.
