Reciprocating Wear Tester
Standards
ASTM F2496: Scratch hardness and adhesion testing for prints/coatings.
ISO 1518-1 & -2: Scratch resistance determination for paints/varnishes (constant/variable loading).
GME 60248: Scratch resistance for automotive interiors and textiles.
D44 1221: Abrasion resistance for fluff surface materials.
D14 1055-2004 & D42 : Wear resistance for organic coatings and plastic parts.
Product Advantages
Dual-Station Efficiency: Simultaneous testing on two independent workstations accelerates workflow and reduces downtime.
Versatile Applications: Ideal for coatings, plastics, automotive interiors, fabrics, and electronic components.
Precision Control: Adjustable stroke (6–120mm), speed (1–100 cycles/min), and pressure (1N–24N) ensure tailored testing.
User-Friendly Interface: LCD screen with real-time parameter display and programmable settings for speed, cycles, and stroke.
Modular Design: Interchangeable friction heads (CS-10. H-18) and weights accommodate diverse testing requirements.
Lever-Balanced Accuracy: Maintains consistent surface load via counterweight-equipped test arms, ensuring repeatability.
Adjustable Height: Abrasive/load rack adapts to samples of varying thicknesses for universal compatibility.
Product Features
Dual Testing Stations: Independent operation with shared control panel for parallel sample evaluation.
LCD Control System: Intuitive interface for setting cycles (1–999.999), stroke length, and speed; displays real-time progress.
Lever-Balance Mechanism: Precision-engineered test arms with adjustable weights (1N, 2N, 2.5N, 5N, 10N, 24N) for ASTM/ISO compliance.
Interchangeable Friction Heads: Includes semicircular (R18) and flat abrasion heads for material-specific wear simulation.
Height-Adjustable Rack: Accommodates samples up to 120mm thick with easy-to-use locking mechanisms.
Comprehensive Kit: Includes brush, sandpaper, stainless-steel abrasive fixings, and spare parts for seamless maintenance.
Field Application
It is suitable for testing scratch and abrasion resistance performance of paints, plastics, decorative fabrics, auto- motive interiors, and velvet fabrics. It is widely used in product quality control, new product development perfor- mance verification,testing mechanism and other fields.
It is applicable to the performance verification of new products, quality control of the production department, and the measurement of material properties for the third-party testing organization, the product performance verification laboratory, and the quality and technical supervision department, etc.
Field Application
It is suitable for testing scratch and abrasion resistance performance of paints, plastics, decorative fabrics, auto- motive interiors, and velvet fabrics. It is widely used in product quality control, new product development perfor- mance verification,testing mechanism and other fields.
It is applicable to the performance verification of new products, quality control of the production department, and the measurement of material properties for the third-party testing organization, the product performance verification laboratory, and the quality and technical supervision department, etc.
Technical Parameters
|
Height of test arm : adjustable (130mm max) |
Working stations: 2 |
|
Number of reciprocating motions:999.999 max |
Control panel: intelligent touch panel |
|
Abrasion suite: various abrasives |
Test mode: automation |
|
Power supply: 220V |
Test speed: 1-200 times/minutes |
|
Weight: 85Kg |
Stroke: 0-150mm |
|
Appearance size: 600mm*500mm* 700 mm |
Load: optional loading/standard configuration 400g |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Xenon Test Chamber | Features and Benefits 1.The use of xenon arc lamp as a light source, can simulate the full sunlight spectrum, including ultraviolet, visible light... |
 |
Ink printing durability meter | Product Usage: Printing ink Decolorization test machine, also known as abrasion tester, friction tester, etc., mainly for printing ink for printed... |
 |

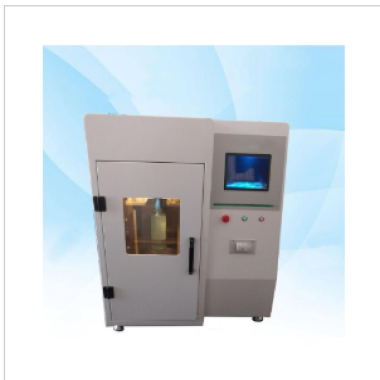

Glass Bottle Internal Pressure Resistance Tester | The internal pressure resistance tester for glass bottles is a device specifically used to test the internal pressure - resistance performance of g... |
 |
Bottle Wall and Bottom Thickness Tester | The wall and bottom thickness tester for bottles is a measuring instrument widely used in the pharmaceutical, food, cosmetics, and other industries... |
 |

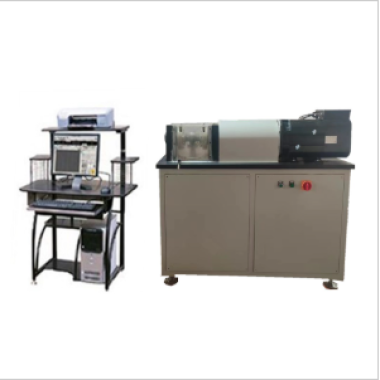

Sliding Bearing Fatigue Testing Machine | Standards ASTM D2596 / ASTM D2783 / IP 239 EP, DIN 51350 / 1-5. ISO / CD 11008. VW 1444. VW 1454 Material Research and Development During the re... |
