Dry Type Thermal Manikin for Thermal Comfort Research
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Standards
The system is designed and manufactured with reference to the following international and national standards:
(1) ISO 14644-1 / ISO 14644-3 – Cleanrooms and associated controlled environments
(2) DIN 1946-4 – Ventilation and air-conditioning systems in healthcare facilities
(3) ISO 14505-2 – Determination of thermal insulation using a thermal manikin (analogous method)
(4) ASTM F1291 – Thermal insulation of clothing using a heated manikin
(5) EN 14058 – Protective clothing against cool environments (reference testing)
(6) GB/T 18883-2020 – Indoor air quality standard
(7) GB/T 50785-2012 – Cleanroom design and testing for hospitals
(8) GB 50333-2013 – Technical code for hospital HVAC system design
(9) GB/T 4249-2019 – Indoor thermal environment impact on human body
(10) YY/T 0287-2009 – Thermal performance evaluation of medical protective clothing
Parameters
| Component | Technical Parameter |
|---|---|
| Manikin body | 16 independent heating zones (head, torso, arms, legs); glass fiber reinforced resin; standing or sitting posture; customizable Asian or European body shape |
| Heating system | Nickel-chromium heating wires; PT100 B-class sensors; surface temperature 32–37°C (33 ± 0.5°C typical); center temperature 37 ± 0.1°C |
| Zone uniformity | Maximum temperature difference between zones ≤ 1.0°C |
| Control system | 16-segment PID temperature control; 2 × 8-channel boards; automatic PID tuning |
| Control box | 780 × 780 × 260 mm; mobile base with brakes; aircraft-style quick connectors |
| Heat output | 70–100 W per manikin, adjustable |
| Surface material | Smooth, non-particle shedding, suitable for cleanroom use |
| Operating environment | Temperature 10–40°C; humidity 15–95% RH |
| Power supply | AC 220–240 V, 50 Hz |
| Power consumption | Peak ≤ 1200 W; steady-state heat flux 0–300 W/m² |
| Manikin height | Approx. 180 cm (standing posture) |
| Manikin weight | Approx. 45 kg |
| Optional customization | Child or infant manikins; individual body parts; lying posture patient simulation |
Features
(1) Sixteen independent heating zones for stable and uniform heat distribution
(2) Dry-type design without sweating or breathing for simplified operation and cost efficiency
(3) High-precision temperature control using dedicated PID regulation
(4) Adjustable surface and core temperature for various thermal simulation scenarios
(5) Flexible posture options including standing, sitting, or lying configurations
(6) Cleanroom-compatible surface with low particle emission
(7) Quick-connect cabling and mobile control unit for convenient installation
(8) Compatibility with expanded GB/T and YY/T standards for medical and HVAC testing
Accessories
(1) 16-segment heated thermal manikin body
(2) Dedicated PID temperature control system
(3) Aircraft-style quick-connect cables
(4) Control and monitoring software
(5) Optional child, infant, or lying-position manikin configurations
Test Procedures
(1) Place the manikin in the required posture and test environment
(2) Connect heating zones and control system using quick-connect cables
(3) Set target surface temperature and control parameters
(4) Allow the system to reach thermal steady state
(5) Conduct airflow, insulation, or thermal environment measurements
(6) Record power consumption, surface temperature, and environmental data
Maintenance Information
(1) Periodically verify temperature sensor calibration
(2) Inspect heating wires and connectors for damage
(3) Keep the manikin surface clean to maintain cleanroom compatibility
(4) Check control box ventilation and electrical connections
(5) Store the system in a dry environment when not in use
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
High-Precision Horizontal Fire Test Furnace for Construction Elements | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards The furnace complies with the following standards: (1) GB/T 9978.1-2008 –... |
 |
High precision MCD metal scratch testing machine | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application Primary applications: Determining scratch resistance of metallic surfaces in ... |
 |
Electrode tortuosity tester & diaphragm ion conductivity tester | The Electrode Tortuosity Tester and Diaphragm Ion Conductivity Tester are precision systems designed for advanced analysis of battery electrodes an... |
 |
Non-combustibility Tester | Non-combustible material refers to the material when it is heated by the fire even if it become the red or melting, which will not occur burning. N... |
 |

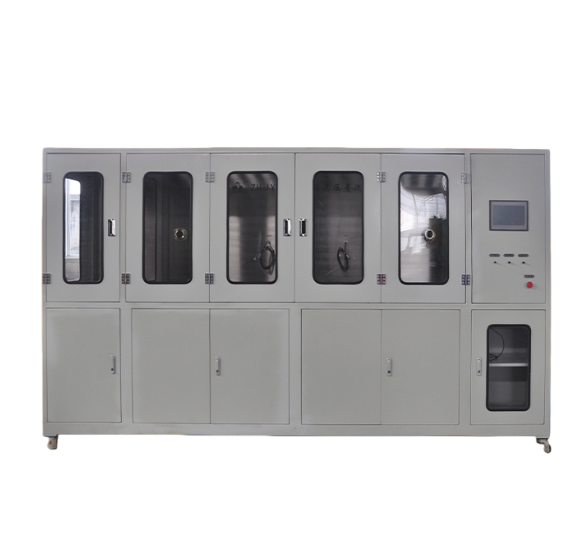

Pump and Valve Test Equipment | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards (1) ISO 4406:2021 — Hydraulic fluid power — Fluids — Method fo... |
