Ball Screw Gate Valves | Reliable Flow Control for High-Pressure Systems
Yulin wellhead ball screw (BSO) gate valve is a large-diameter and high-pressure isolation gate valve, which is the main component of the fracturing tree. It is usually installed on top of fracturing trees or wellheads for fracturing operations.
Product Description
Yulin Wellhead Ball Screw Gate Valve is a large diameter high pressure isolation gate valve. It is the main component of the Fracturing Tree. It is usually installed on top of fracturing trees or wellheads for fracturing operations. Separate fracturing fluid from the well. Multiple fracturing steps can also be performed under the most extreme conditions. The fracturing valve has flange or stud bolt connection and can be operated manually or hydraulically.
Features of Ball Screw Gate Valves:
Ball Screw Gate Valve has a long service life of seal surface supersonic sprayed hard alloy.
Ball Screw Gate Valve open/close is ball screw structure which reduces effectively torque to the 1/3 of common valve.
Ball Screw Gate Valve with balance end rod structure which can reduce valve torque and have open/close indication function.
Stem seal packing, seat end surface seal ring are flexible energized seal structure to have reliable seal.
Be applied to large size and high pressure valve.
Specifications of Ball Screw Gate Valves:
Working pressure: 10000 PSI--20000 PSI
Connection: Flange
Size: 4 1/16"--7 1/16'
Working temperature:K. L .P. R .S. T. U. V
Material Class :AA.BB.CC ,DD .EE.FF.HH
Specification level: PSL1-PSL4
Performance Requirement: PR1. PR2
Application： Oil, Gas
FAQs
Are ball valves better than gate valves?
Ball valves are more effective at forming a tight seal and have more reliability and longevity than gate valves, but tend to be more expensive. They are often used for shutoff and control applications. Because ball valves can open and close immediately, they are more likely than gate valves to cause water hammer.
What is difference between ball valve and gate valve?
What Is The difference between gate valve and ball valve? The main difference is in the operation. A gate valve moves a solid disk up and down to open/close the orifice. A ball valve rotates a ball (the orifice) with a bore in it 90 degrees to open/close the valve.
Why do we use ball valves?
The ball valve body design is conventional and flow is controlled by the position of a hole through the ball. This type of valve is used to control flow, Pressure Control in gas distribution systems and pressure reduction in connection with gas storage.
What are the types of ball valves?
For detailed specifications and applications, explore this product page.
Send product request
Other supplier products
 |
Wireline Pressure Control Equipment | Wireline Pressure Control Equipment API-Certified Solutions for Safe Wireline Operations Safe, reliable, and API-compliantwireline pressure contr... |
 |
Wellhead Gate Valve, Hydraulic Gate Valve | Wellhead Gate Valve, Hydraulic Gate Valve | Reliable Hydraulic Flow Control for Oil & Gas Wells Product Description Description API 6A Hydra... |
 |

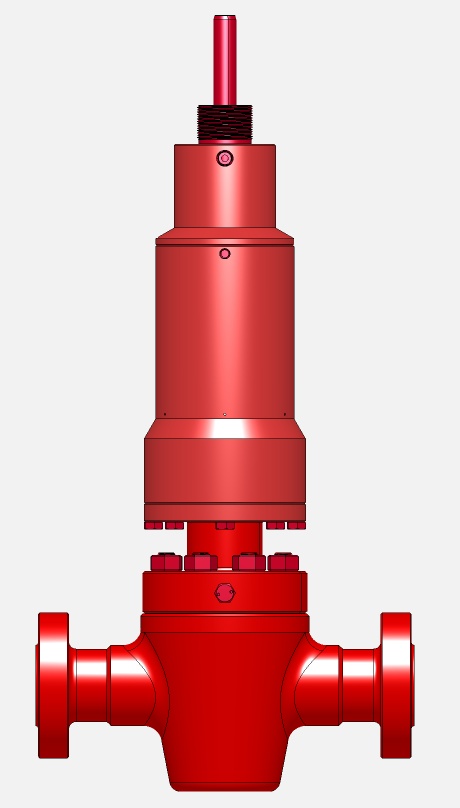

Surface Safety Valve (SSV) - API 6A Hydraulic Actuated Gate Valve | Surface Safety Valve (SSV) - API 6A Hydraulic Actuated Gate Valve Product Description Hydraulic Gate Valve | API 6A Surface Safety Valve (SSV) Y... |
 |
API 6A Pneumatic Diaphragm Gate Valve | API 6A Pneumatic Diaphragm Gate Valve - Surface Safety Valve Product Description Pneumatic Diaphragm Gate Valve | API 6A Surface Safety Valve (SS... |
 |

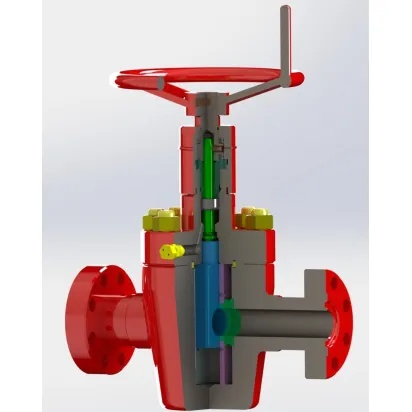

API 6A Slab Gate Valve | API 6A Slab Gate Valve Product Description YulinMachinery's high-performance two-way flatAPI 6ASlabGate Valveis designed for critical high-pressu... |
