RAL9005/9017 Polyester White Powder coating
Specifications
| Category | Details |
|---|---|
| Color Options | RAL colors, Pantone colors; custom color matching available |
| Application Schedule | <ul><li>Applied by electrostatic spray gun (60–80 kV negative voltage)</li><li>Curing: 180–200°C for 10–15 minutes (varies by powder chemistry)</li><li>Optimal film thickness: 80–110 μm (wrinkle pattern size depends on thickness)</li><li>Note: Excessively thin/thick films will not provide a satisfactory finish</li></ul> |
| Average Coverage | 7–10 m²/kg (based on 60 μm film thickness, 100% powder utilization) |
| Packing | Carton packaging with polyethylene inner bag; net weight: 20 kg or 25 kg |
| Storage Requirements | <ul><li>Store below 30°C in a ventilated, dry, clean area</li><li>Avoid fire, heat, direct sunlight, and open dumps</li><li>Shelf life: 12 months under proper conditions (re-test if expired, use if results are acceptable)</li></ul> |
| Health and Safety | Non-toxic; avoid dust inhalation. Operators should wear a dust mask and safety glasses |
| Chemistry Types | Epoxy, Epoxy-Polyester Hybrid, Polyester TGIC, Polyester TGIC-Free, Polyurethane |
| Finish Types | Anti-gassing, Anti-graffiti, Antimicrobial, Chrome Effect, Crocodile Skin, High Temperature Resistant, Metallic/Peal, Sublimation, Texture Effect, Transparent Clear, Wood Effect, Zinc Rich Epoxy Primers |
| Why Choose Our Products? | <ul><li>Own factory with high quality and competitive pricing</li><li>Premium raw materials ensure consistent quality</li><li>Trial and sample orders welcome</li><li>Exported to Europe, America, Southeast Asia, and other regions</li><li>Continuous customer support</li></ul> |
Test Data
| Chemistry Property | Inspection Standards | Test Indicators (High light) | Test Indicators (Glazed/Matte/Low light) |
|---|---|---|---|
| Impact resistance | ISO 6272, GB/T 1732-1993 | 50kg/cm | 40kg/cm |
| Cupping test | ISO 1520, GB/T 9753-1988 | 8mm | 7mm |
| The adhesion (grid method) | ISO 2409, GB/T 9286-1998 | 0 | 0 |
| Bending | ISO 1519, GB/T 6742-1986 | 2mm | 3mm |
| Pencil Hardness | ASTM D3363, GB/T 6739-1996 | 1H-2H | 1H-2H |
| Salt spray test | ISO 7253, GB/T 1771-1991 | >500 hours | >500 hours |
| Damp heat test | ISO 6270, GB/T 1740-1979 | >1000 hours | >1000 hours |
| Heat resistance | 110℃/24 hours (white) | Good gloss retention, ΔE≤0.3-0.4 | Good gloss retention, ΔE≤0.3-0.4 |
| Florida weathering exposure | ISO 2810, South 45°, 12 months | Gloss retention≥50% | Gloss retention≥50% |
| Artificial accelerated aging | 60℃/8 hours + 50℃/4 hours condensing, cycle for 500 hours | Gloss retention≥50%, Color stability: ΔE≤0.35 | Gloss retention≥50%, Color stability: ΔE≤0.35 |
| Annotate | <ul><li>Test material: 0.8mm degreased/rust-removed steel, coating thickness 50–70 μm</li><li>Performance may be lower for glossy finishes</li></ul> | — |
Types of powder coating
Powder coatings can be categorized by resin system (epoxy, polyester, hybrid, polyurethane), appearance (smooth, texture, hammer, metallic, pearlescent), or performance level (anti-corrosion, heat-resistant, UV-resistant, architectural grade, automotive grade).
Powder coating colours and effects
Powder coatings offer thousands of colors in gloss, matte, satin, metallic, candy, texture, wrinkle, hammer tone, wood grain, fluorescent, and other custom effects. Special powders can create soft-touch, anti-scratch, anti-fingerprint, or anti-graffiti surfaces.
Powder coating process
The process generally includes surface pretreatment (degreasing, phosphating, chromating, sandblasting), drying, electrostatic spraying, curing in an oven, and cooling. A well-controlled pretreatment and curing process ensures strong adhesion and long service life.
Powder coating benefits
Powder coatings are environmentally friendly, solvent-free, and produce minimal waste. They offer excellent corrosion resistance, weather durability, mechanical strength, and uniform film appearance. The coating is tough, impact-resistant, scratch-resistant, and has a long lifespan.
Applications for Powder Coatings
Powder coatings are widely used in appliances, aluminum profiles, architectural components, automotive parts, bicycles, furniture, outdoor equipment, machinery, electrical cabinets, pipeline systems, and general industrial and consumer goods.
在线联系供应商
Other supplier products
 |
High temperature-resistant powder coating | Surface Finish Options Overview As the application scope of powder coating continues to expand, some extreme environments have put forward... |
 |
Dark Gray Powder Coating/powder coating with batch test report | Product Description Description Powder coating Another Name Powder paint,Electrostatic powder coating, thermosetting powder coating ... |
 |
Electrostatic Spray Antique Copper Vein Hammer Tone Powder Coating | Colors Available: RAL colors coating powder Pantone colors Color-matching regarding customer requirement is general types for powder coating: ... |
 |
Epoxy polyester powder coating | Product model GA, SF, FX, etc. Product characteristics The coating has good decorative properties, good adhesion and excellent mechanical proper... |
 |

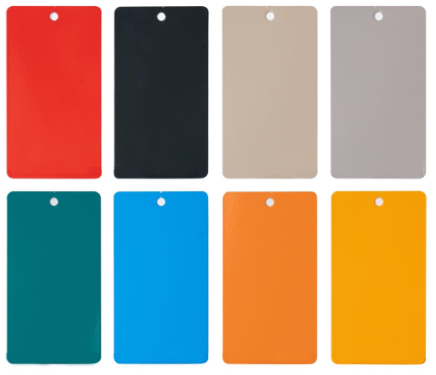

Basecoat powder coating/powder coated sheet price | Product Description MT-A2204 basecoat comes in an array of metallic finishes, which offer enhanced exterior durability with the application of a s... |
