Dynamic Shear Rheometer

Get a quote:

Whats/App: +86 185 0176 3615

Web: qinsun-lab.com

Dynamic Shear Rheometers are configured to meet the demands of everyday quality control testing of 4, 8, and 18mm samples in asphalt production facilities. These models are ideal for the classification of SHRP/Superpave PG binders.

A disc-shaped binder sample is confined between two parallel plates and subjected to horizontal oscillation to determine dynamic shear properties. The synchronous, brushless DC motor drives a rotor mounted on a frictionless air bearing to allow the most precise movement and sensitive measurements. An operation requires a clean, dry, and oil-free supply of compressed air.

Standards:

ASTM D4402 、ASTM D7175 、ASTM D7405 、ASTM D4402 M、ASTM P246

EN 14770 、EN 13702 、EN 16659

AASHTO M320-10 、AASHTO M332-14 、AASHTO T315 、AASHTO T316 、AASHTO R29 、AASHTO T391 、AASHTO T350-14

JTG E20-2011 T0628、

Technical Parameters:

Torque range 0.001-200mNm
Torque resolution 0.001mNm
Normal force range 0.01-50N
Normal force resolution 1mN
Test plate 1pair8mm& 1pair25mm (can be customized)
Rotating speed 0.01-2850r/min
Angular velocity range 0.01-300rad/s
Deflection angle resolution 10-4rad
Vibration frequency range 0.1-10Hz
Temperature range 5-85℃
Temperature resolution 0.01℃
Temperature control accuracy ±0.1℃
Bearings Porous carbon magnetic thrust bearings
Power supply 220VAC50Hz

在线联系供应商

至: Standard Groups
Your E-mail:
消息正文:


Send to other suppliers

Other supplier products

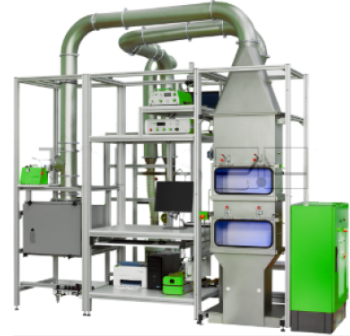

Vehicle Cabin Air Filter Tester
