FAA insulation burn through test burner
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
This system is applicable to aviation fuel fire testing of a wide range of aerospace materials, particularly those used in aircraft cabin structures and thermal management systems, including:
Thermal insulation materials
Acoustic insulation materials
Composite sandwich panels
Cabin wall panels
Ceiling liners
Interior partitions
Fire barrier layers
Multi-layer insulation assemblies
The NexGen burner provides standardized aviation fuel flame exposure, while the configured flame penetration apparatus enables direct assessment of whether flames can penetrate insulation layers under high-temperature conditions.
Standards
The system is compatible with the following international aerospace fire testing standards:
BSS 7387 – Flame spread and combustion behavior of aerospace materials
AITM 2.0056 – Heat release rate measurement of aerospace materials using cone calorimeter
FAR Part 25 Appendix F Part VII – Heat release and fire performance requirements for aircraft cabin materials
Parameters
| Item | Specification |
|---|---|
| Overall dimensions | 1500 mm (W) × 1800 mm (H) × 900 mm |
| System weight | 150 kg |
| Power requirement | 220 V, 10 A |
| Operating temperature | 10°C to 35°C |
| Fuel type | Aviation kerosene |
| Air supply | Minimum 120 PSI compressed air |
| Flame temperature capability | ≥ 2000 ± 50 ℉ |
| Heat flux output | ≥ 10.6 W/cm² |
| Temperature control bath | ≥ 2 × 0.14 m³ |
Accessories
The system is supplied with the following components:
NexGen aviation fuel burner
Flame penetration test fixture for thermal and acoustic insulation
Dynamic loading motion system
Fuel temperature control ice bath
Thermocouple calibration comb
Radiant heat flux sensor with cooling unit
Heavy-duty specimen mounting frame
Burner thermal insulation blanket
在线联系供应商
Other supplier products
 |
Automated pressure flow tester for meters | Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications - Fluid System Performance Evaluation: The Pressure Transmission and Flow Tes... |
 |
Oxygen Index Test Apparatus，Accurate fire resistance testing instruments | TestingStandards: ISO4589-2.ASTMD2863.GB/T2406.GB/T5454 Applications: ThisOxygen Index Testerisusedtodeterminethelowestoxygendensitythattestedma... |
 |
Fire Resistance Furnace Supplier / Manufacturer | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards This instrument is developed and manufactured in accordance with the following s... |
 |

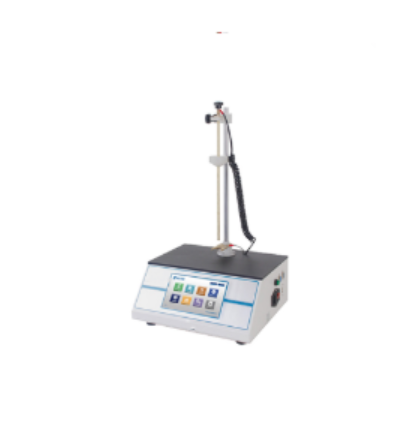

Aluminum tube coating continuity inspection device | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards The design and manufacture of the continuity tester for the inner coating of alu... |
 |
