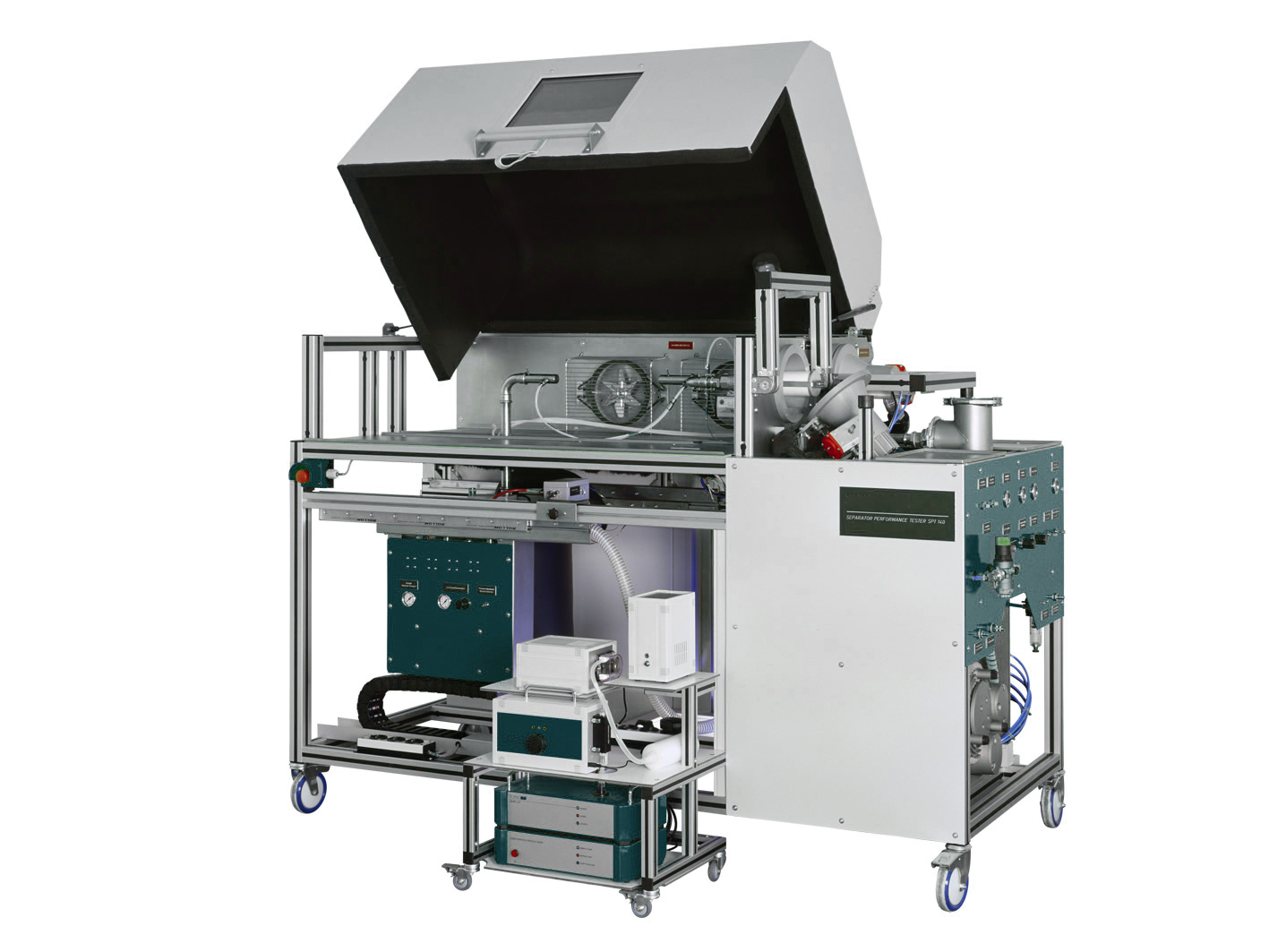

Industrial Oil Separator Test Machine
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Standards
ISO 11155 series – air filtration and separator standards
DIN 71460-1/2 – cabin and related oil mist separator standards
ISO 12103-2 – test dust and particle characteristics
ISO 5011 – filter media performance testing (referenced for separator elements
ISO/TS 16332-2006 – Road vehicles — Crankcase ventilation systems — Test method for oil mist separators
ISO 4020-2001 – Rubber — Determination of effect of liquids on material properties (applicable if testing rubber components of separators)
SAE J905-1999 – Automotive CCV systems — Test methods for crankcase ventilation oil separators
Features
compact test bench
wide range of flow rate
sample holder adjustable for different sample dimension
heated oil mist generator (maximum 120°C)
closed loop system for different pressure regimes
possibility of opening up the secured testing channel
heatable Aerosol Generator ATM 243 also utilizable without SPT 140
Software guided testing procedure
test rig control and data acquisition software for Windows
precise flow rate analysis
Technical data
| Parameter title | Unit | Value |
|---|---|---|
| test flow rate | m³/h | 0.9 ... 18 or 1.2 ... 24 |
| testaerosol | - | dropletaerosolbased on mineral or synthetic engine oil |
| differential pressure of test specimen | Pa | ± 20000 |
| operating medium, gas/air | - | room air (common laboratory conditions) |
| operating medium, gas/air - compressed air supply | bar | max. 6 (300 L/min) |
| operating medium, water - water supply | bar | max. 6 (from water network, max. 20 L/h, for cooling circuit) |
| power supply | - | 400 V, 16 A |
| aerosolgeneration technology | - | ATM 243 or LDG 243 (optional) |
| dimensions (w × h × d) | mm | 2100 × 1200 × 925 |
| weight | kg | approx. 400 |
Accessories
oil droplet generator LDG 244 to produce large droplets for the simulation of oil film and oil gush effects
Test Procedure
Install the separator in the adjustable sample holder, ensuring complete sealing.
Start the oil mist generator and set the flow rate and temperature.
Start the automated test program; software guides the test process.
Measure separation efficiency, oil leakage, and differential pressure changes.
Record pressure regulation curves and flow characteristics.
Upon completion, move the separator to a safe area; software generates the test report.
Export data for long-term analysis, performance optimization, and standard compliance.
