Dental Implants Fatigue Tester

Standard

• ISO 14801:2016: Specifies dynamic fatigue testing protocols for endosseous dental implants, including load ratios, frequency, and failure criteria.
• YY/T 0521-2018 (China): Defines methodologies for evaluating the fatigue strength of dental implant-abutment complexes under cyclic loading.

Product Advantages

1. Electromagnetic Precision: Novel servo motor technology ensures backlash-free operation with 0.001 mm displacement resolution.
2. Biorelevant Simulation: Integrated 37°C water bath system replicates physiological conditions for in vitro corrosion testing.
3. Universal Fixturing: Adjustable angle clamps accommodate straight/angulated implants (0°–25° pre-set options).
4. High-Frequency Stability: 20 Hz operation with ±0.05% load accuracy across 2 million cycle tests.
5. Compact Design: Benchtop footprint (450 × 400 × 600 mm) suits laboratory environments.
6. Regulatory Compliance: Pre-loaded ISO 14801 protocols with automated data reporting for FDA/CE submissions.

Product Features

• Electromagnetic Servo Actuator: 600 N dynamic load capacity with programmable R=0.1–10 ratios.
• Dual Sensor System: 0.01 N resolution load cell + 0.001 mm LVDT displacement transducer.
• Dynamic Load Control: 0.1–20 Hz frequency range with sine/square/random waveforms.
• Thermal-Mechanical Bath: 37±0.5°C recirculating water system with anti-evaporation design.
• High-Resolution Imaging: Built-in 2MP camera system for fretting corrosion analysis.
• Safety Suite: Emergency stop, overload clutches, and water leak detection system.

Technical Parameters

Parameter	Specification
Max. Dynamic Load	±600 N (0.01 N resolution)
Frequency Range	0.1–20 Hz (0.01 Hz increments)
Load Ratio (R)	0.1–10 (adjustable)
Displacement Range	±5 mm (0.001 mm resolution)
Water Bath Temperature	37±0.5°C (PT1000 sensor)
Data Sampling Rate	10 kHz (synchronized across 8 channels)
Power Requirements	220V/110V ±10%, 50/60Hz, 1,200W
Dimensions (W×D×H)	450 × 400 × 600 mm
Weight	55 kg (net) / 65 kg (with water bath)
Noise Level	<55 dB (A-weighted)

Accessories

1. Dental Implant Fixture Kit:
   • Adjustable angle clamps (0°–25° pre-set options)
   • Self-centering abutment adapters (3.0–6.5 mm compatibility)
2. Thermal-Mechanical Bath:
   • 10L capacity with recirculating pump
   • Corrosion-resistant titanium interior
3. FatigueMaster Pro Software:
   • Automated S-N curve generation and fatigue limit calculation
   • 21 CFR Part 11-compliant audit trail with blockchain timestamping
   • Remote monitoring via iOS/Android app
4. Operator Kit:
   • Calibrated torque wrench set (0.1–10 Nm)
   • Implant alignment jigs (ISO 14801 compliant)
5. Calibration Bundle:
   • NIST-traceable force calibration weights
   • LVDT verification tool
6. Safety Kit:
   • Water leak detection system
   • Acoustic enclosure with 25 dB noise reduction

Other supplier products

	5kN Universal Testing Machine	Standards: 1. Test machine host 1 set, 2. 1 set of test control software, 3. 1 set of data acquisition card, 4. Stepper motor 1 set, 5. Decelera...

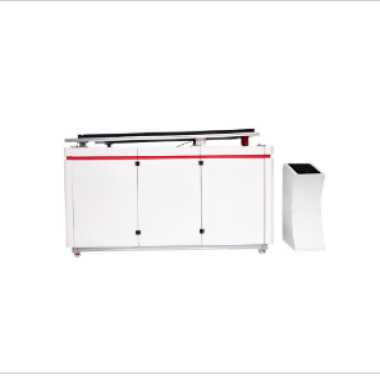

	Strength Tester for Lead - end of Photovoltaic Modules	Standard IEC 61215-2:2016: Terrestrial Photovoltaic (PV) Modules – Test Requirements for Electrical and Mechanical Components CE Certific...
