Single - Strand Bending Tester STD - FB2 - SH
Standards
ASTM A370. ASTM A416. ISO6934.4
The Single Fiber Bending Tester makes it possible to easily measure and quantify softness, elasticity, and diffusion differences in a single strand of yarn or hair. Elasticity and diffusion differences can be quantified by measuring the hardness and recoverability when bending the target. With the STD-FB2-SH, measurements can be performed easily for a single strand, eliminating effort spent creating multiple samples.
Features
Capture minute area moments as felt by a fingertip thanks to the device' s wire torsion torque detection method. Quantify data correlating to sensory evaluations with high reproducibility.
Successfully eliminate user-caused measurement errors thanks to a simple measurement operation.
Specification
| Product Name | Single Fiber Bending Tester |
| Dimensions (W×D×H) approx. | Measuring unit: 210×240×580 mm Amplifier: 180×400×400 mm |
| Weight approx. | Measuring unit: 30 kg Amplifier: 10 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | STD-USB (optional) PC (optional)*1 Data logger output terminal |
| OS | Windows 7/8/8.1/10 |
| Sample size | Diameter: ⌀0.07 mm/⌀0.1 mm/⌀0.12 mm (max.) Three types of chucks are available as the standard accessories. Length: 20 mm (min.) |
在线联系供应商
Other supplier products
 |

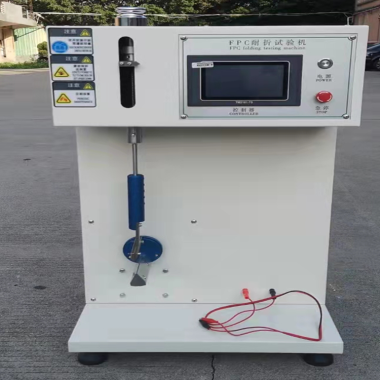

FPC Flex Durability meter | Standard ASTM F392 Product features 1. the stepper motor drive, high-precision positioning, low noise, can be used for a long time 2. program-c... |
 |
Spectrophotometer tester | Standard CIE No.15. ISO 7724-1: Meets international colorimetry and spectral measurement standards. ASTM E1164. DIN 5033: Compliant with industri... |
 |

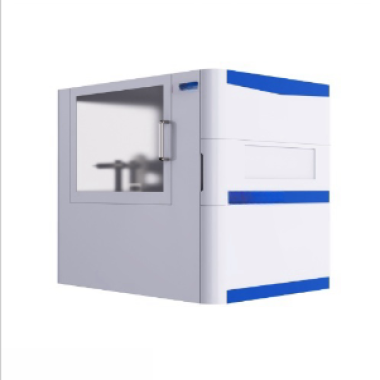

Cylindrical Battery In-Situ Volume Swelling Testing System | The Cylindrical Battery In-Situ Volume Swelling Testing System is designed for real-time measurement and analysis of volume and dimensional changes... |
 |

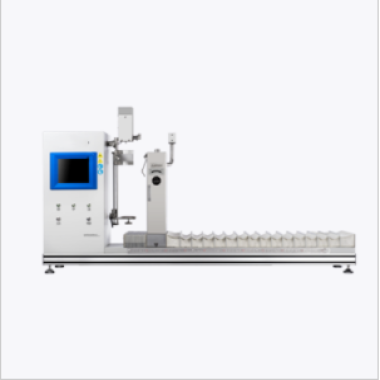

Spray Aerosol Ignition Distance Tester | Product Description Conforms to UN Recommendations on the Transportation of Dangerous Goods - Manual of Tests and Criteria 31.4 Ignition Distance ... |
 |
