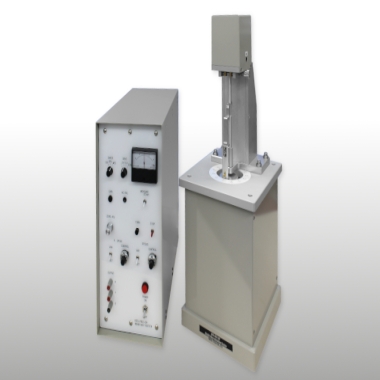

Single - Strand Bending Tester STD - FB2 - SH

Standards

ASTM A370. ASTM A416. ISO6934.4

The Single Fiber Bending Tester makes it possible to easily measure and quantify softness, elasticity, and diffusion differences in a single strand of yarn or hair. Elasticity and diffusion differences can be quantified by measuring the hardness and recoverability when bending the target. With the STD-FB2-SH, measurements can be performed easily for a single strand, eliminating effort spent creating multiple samples.

Features

Capture minute area moments as felt by a fingertip thanks to the device' s wire torsion torque detection method. Quantify data correlating to sensory evaluations with high reproducibility.

Successfully eliminate user-caused measurement errors thanks to a simple measurement operation.

Specification

Product Name Single Fiber Bending Tester
Dimensions (W×D×H) approx. Measuring unit: 210×240×580 mm
Amplifier: 180×400×400 mm
Weight approx. Measuring unit: 30 kg
Amplifier: 10 kg
Power supply, Frequency 100VAC, 50/60Hz
Interface STD-USB (optional)
PC (optional)*1
Data logger output terminal
OS Windows 7/8/8.1/10
Sample size Diameter: ⌀0.07 mm/⌀0.1 mm/⌀0.12 mm (max.)
Three types of chucks are available as the standard accessories.
Length: 20 mm (min.)
