Test for Flammability of Materials ,AS1530.2,Fire reaction test apparatus

Introduction

Thistester is developed base on thestandard AS1530.2. test for flammability of materials. The method is applied to the testing of a thin sheet or woven material which is sufficiently pliable to be inserted into the test apparatus by hand withoutspecial softening treatment,

Standard

AS1530.2 Test for flammability of materials.

so that it may be graded according to a flammability index.

Apparatus

Two parallel brass rails, light gauge angle section which is formed in length to be slightly convex, with location pin;

All other frames made of stainless steel material;

A533.4mm scaler is fixed to one side of the mounting frame, with 21 equally space and 25.4mm apart;

Two stainless steel wire alone location pin with lightly tension to a held specimen in position;

Ignition copper trough, with an internal dimension of 20mmx10mmx3mm, with brass support, height-adjustable.

Stainless steel flue and hood;

4 thermocouple, type K, positioned symmetrically within the flue, 570mm above the test specimen;

1 thermocouple, type K, positioned in the control box, monitor ambient temperature;

Labview software with DAQ module for temperature record and the Area (A) calculation;


在线联系供应商

至: Standard International Group (HK) Limited
Your E-mail:
消息正文:


Send to other suppliers

Other supplier products

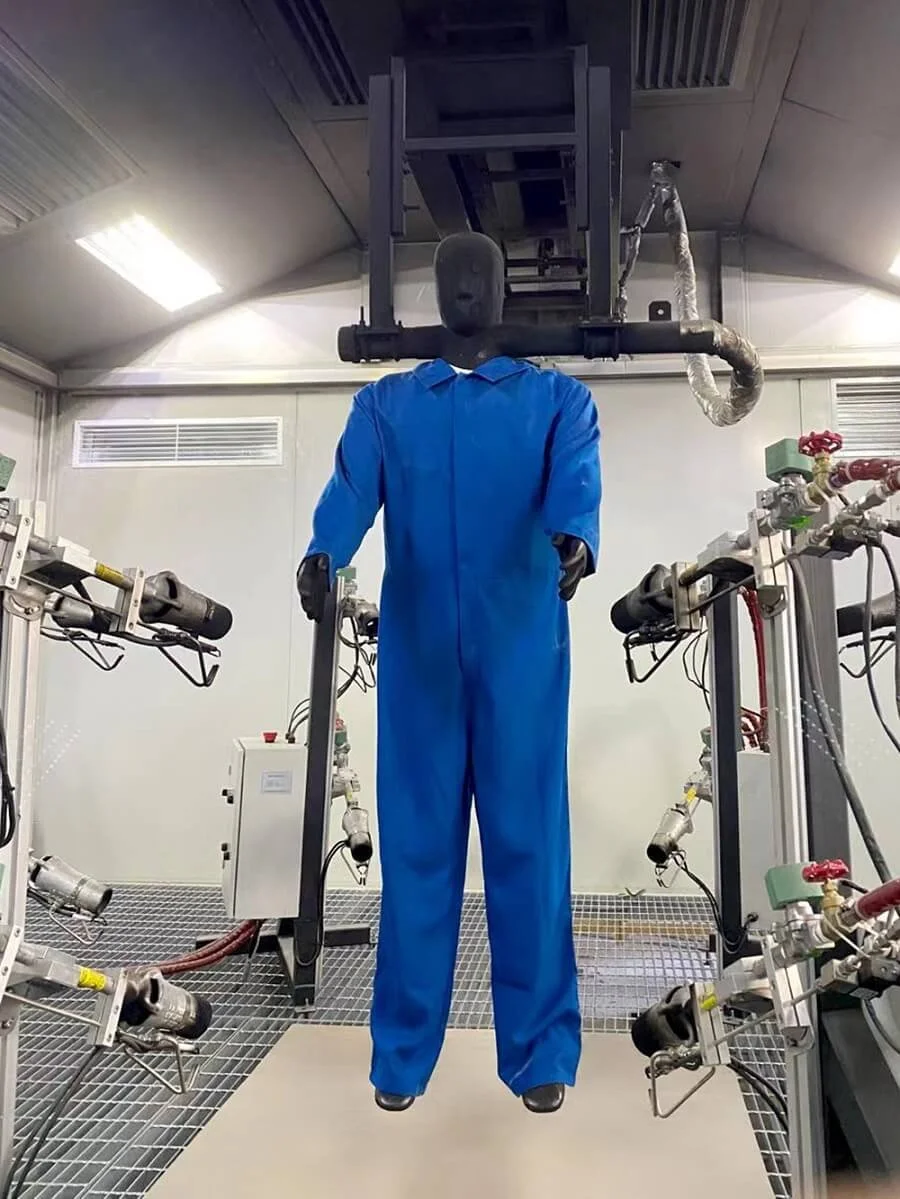

Burning Manikin System
