Powder Wet Vibrating Screen System For Lithium Battery Material Testing
The Powder Wet Vibrating Screen System is designed for particle size separation and distribution analysis of lithium battery materials under wet conditions. The system combines controlled vibration with liquid-assisted sieving to accurately classify fine powders and slurry-based materials. It is suitable for quality control, formulation verification, and process optimization of electrode materials and functional powders used in lithium-ion battery manufacturing.
Application
(1) Wet particle size distribution (PSD) analysis of lithium battery cathode and anode materials.
(2) Classification and screening of slurry-based powders containing solvents or binders.
(3) Quality consistency evaluation of active materials, conductive additives, and ceramic powders.
(4) Agglomeration and dispersion assessment during material development and scale-up.
(5) Incoming inspection and batch-to-batch comparison of battery raw materials.
(6) Laboratory and pilot-scale material research for lithium-ion and solid-state batteries.
Standards
(1) ASTM E11 – Standard Specification for Woven Wire Test Sieve Cloth and Test Sieves.
(2) ISO 3310-1 – Test Sieves – Technical Requirements and Testing – Metal Wire Cloth Sieves.
(3) IEC 62660-3 – Secondary Lithium-Ion Cells – Safety Requirements (reference application).
(4) RoHS – Restriction of Hazardous Substances Directive.
(5) CE Certification – Conformité Européenne.
Features
(1) Wet sieving design suitable for fine powders and slurry-based materials.
(2) High-precision vibration control for stable and repeatable particle stratification.
(3) Anti-clogging structure supporting continuous wet screening.
(4) Corrosion-resistant construction for use with acidic, alkaline, and organic solvents.
(5) Multi-layer sieve stack enabling simultaneous multi-size classification.
(6) Integrated control system for standardized and repeatable test operation.
(7) Low-noise operation suitable for laboratory environments.
(8) Safety-oriented design with emergency drainage and protective enclosures.
Parameters
| Parameter | Specification |
|---|---|
| Sieve Diameter | 200 mm, 300 mm, 450 mm (interchangeable) |
| Mesh Range | 5 μm – 5 mm (ASTM E11 compliant) |
| Vibration Amplitude | 0.5 – 3.0 mm (adjustable) |
| Vibration Speed | Variable frequency control |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Noise Level | < 65 dB (A-weighted) |
| Wet Operation Mode | Continuous or batch |
| Dimensions (W×D×H) | 500 × 450 × 800 mm |
| Weight | 85 kg (net) / 105 kg (gross) |
Accessories
(1) Stainless steel test sieves with standard mesh sizes.
(2) Sieve pan and cover with sealing structure for wet operation.
(3) Wet screening liquid circulation and drainage components.
(4) Variable frequency vibration controller.
(5) Sieve cleaning tools for wet powder removal.
(6) Operation and data recording software.
(7) Power and safety protection modules.
Test Procedures
(1) Assemble the required sieve stack according to the target particle size range.
(2) Secure the sieve stack and connect the wet circulation or drainage system.
(3) Add the powder sample and appropriate liquid medium to the top sieve.
(4) Set vibration amplitude, frequency, and test duration.
(5) Start the system and perform wet sieving until completion.
(6) Collect retained and passed materials from each sieve for analysis and reporting.
Maintenance Information
(1) Clean sieves, drainage lines, and contact components immediately after wet testing.
(2) Inspect sieve mesh integrity regularly to prevent measurement deviation.
(3) Verify vibration amplitude and frequency calibration at scheduled intervals.
(4) Check sealing components and corrosion-prone parts for wear.
(5) Store sieves and accessories in a clean and dry environment after use.
在线联系供应商
Other supplier products
 |
Reciprocating Friction and Wear Test Machine | Applicable Standards ASTM Standards: Formulated by the American Society for Testing and Materials (ASTM), standards such as ASTM D6079 are used to... |
 |
NFPA 701-1 Flammability Tester | Introduction This tester mainly based on NFPA 701 R & D and the United States NFPA 701 that provides fabric and film flame propagation test me... |
 |
Thrust Washer Friction Testing Machine | Applicable standards When the end face rotary friction and wear testing machine is tested, it is usually necessary to follow certain standards and... |
 |
Automatic voltage internal resistance tester | Standard ASTM E83: Standard Test Method for Verification of Linear Displacement Measuring Systems ISO 3611: Calibration of Measuring Instruments ... |
 |
Leather Water Vapor Permeability Tester | The Leather Water Vapor Permeability Tester measures the ability of leather and leather-like materials to transmit water vapor. By assessing the we... |
Same products
 |
Falling Sand Abrasion Test machine | 卖方: Standard International Group (HK) Limited | The sand abrasion tester is a specialized testing device used to evaluate the abrasion resistance... |
 |
Conveyor Belt Drum Friction Testing Machine | 卖方: Standard International Group (HK) Limited | Main Purposes of Conveyor Belt Drum Friction Testing Machine The conveyor belt drum friction tes... |
 |
Dry Sand Rubber Wheel Wear Tester | 卖方: Standard International Group (HK) Limited | The dry sand rubber wheel abrasion tester is mainly used to test the abrasion resistance of mater... |
 |

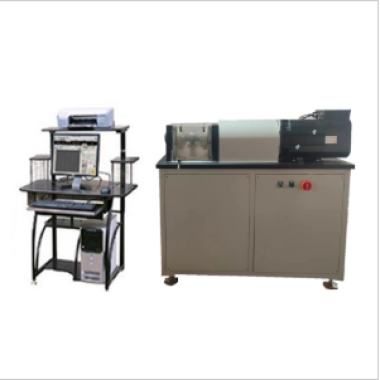

Sliding Bearing Fatigue Testing Machine | 卖方: Standard International Group (HK) Limited | The sliding bearing fatigue testing machine is an important testing device, mainly used to evalua... |
 |
