Fabric Friction Charge Tester
Friction charged charge tester Friction Charging Tester is the antistatic fabric and knitted fabric friction generated by the amount of charged charge test equipment, used to measure the amount of static electricity charge. Standards compliant: JIS L-1094; JIS T-8118; ZB W 04008-89; GB / T12703.2-2009; GB 12014-2009; GB / T23316-2009 Calculation formula: Q = CV / A Here, C: the charge amount of the capacitor (F) = 0.1 × 10-6 (F) V: Voltage reading of potentiometer (V) A: friction area of sample (m2) = 0.25 × 0.25 (m2) Steps: 1, connecting the Faraday tube and the amount of charge measurement device: the end of a dedicated cable connected with the input of the charge meter connected to the other end of the Faraday tube with the outer cylinder of the socket connection. 2, turn on the charge amount of the tester power - the power switch up to the "1" position. 3, press the "clear" button, so that the charge meter shows the number is zero. 4, with a roller friction machine friction test, immediately after the end of the friction with the insulation rods into the Faraday tube tube inside the tube. In this process the specimen and other objects should be kept above 300mm. 5. Read the reading on the charge quantity measuring device. Friction Charging Tester Note: 1, the system of Faraday tube outer cylinder should be reliably grounded. 2. Clear the charge amount measurement unit before each measurement. 3, the measured object must be measured from the power supply. 4, before the test, please turn on the power switch to make the machine warm up for 15 minutes. 5, voltage / current generator is not to sell goods. Fabric Friction Charging Charge Tester: Voltage meter (R8240): 1 set Capacitor: 1 set Cable (A01009-200): 1 root Connection cable (A01009-50): 1 root Power supply-type strip in addition to the electrode: 1 root Friction abutment / ground pad (nylon friction cloth): 1 set Insulated rods (20Φ x 500L mm acrylic clear fiber): 1 root Certificate of proof of voltage meter (traceability): 1 book
在线联系供应商
Other supplier products
 |
Vacuum Blood Collection Tube Suction Volume meter | The main uses, compliance standards, and technical parameters of the Vacuum Blood Collection Tube Aspiration Volume Tester are as follows: Complia... |
 |
Anti-impact Test Bench For Automobile Steering | The steering tester (hereinafter referred to as "test bed") can complete the axial impact test of the rack and pinion steering gear assembly. Part ... |
 |
Glow wire tester | F242 Glow-wire tester, By simulating the thermal stress caused by heat source or ignition source such as hot component or overload resistor in a sh... |
 |
Mask Synthetic Blood Penetration Tester | Medical Face Mask Synthetic Blood Penetration Resistance Tester Medical masks synthetic blood penetration tester is used to determine the resistan... |
 |
Air - tightness Testing Device for Automotive Connectors | The air - tightness testing device for automotive connectors uses the pressure principle to conduct non - destructive tightness tests on containers... |
Same products
 |
Liquid Sliding Penetration Comprehensive Performance Tester | 卖方: 上海千实精密仪器 | G373 Liquid penetrating and strike-through comprehensive performance tester - Penetrability test ... |
 |
Nonwovens liquid loss tester | 卖方: 上海千实精密仪器 | Nonwovens liquid loss tester built-in loss of Taiwan and sample fixture for non-woven fabric mate... |
 |
Elmendorf Tearing Strength Tester | 卖方: 上海千实精密仪器 | G008 Manual Tearing Tester - Material Tear Resistance Test G008Manual Tearing Tester, The Elmend... |
 |
Dry Cleaning & Washing Cylinder | 卖方: 上海千实精密仪器 | IntroductionThe dry cleaning and washing cylinder consists of a stainless steel rotary test chamb... |
 |

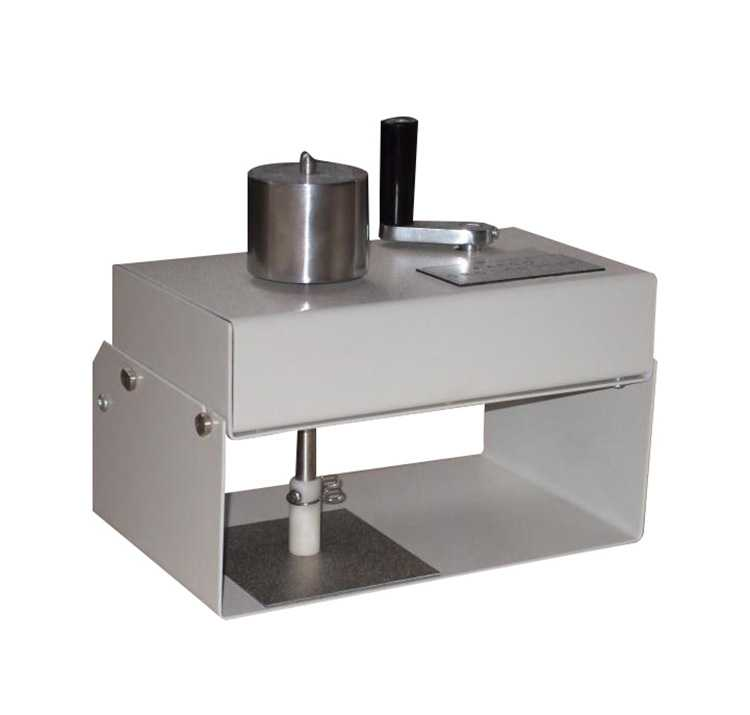

Rotary Rubbing Color Fastness Tester (Crockmeter) | 卖方: 上海千实精密仪器 | Standard AATCC 116: Colorfastness to Crocking (American Association of Textile Chemists and Co... |
