Helmet Strap Tensile Tester
Purpose
Apply a certain initial load to the helmet strap system for a certain period of time. Then, let a weight of a certain mass fall from a certain height so that the impact force is also applied to the strap system, thereby evaluating the tensile performance of the strap system.
Applicable Standard
GB24429
Main technical specifications
Pneumatic lifting device ( can be software controlled, can be manually controlled)
Initial weight: 5.0kg ±0.5kg
Impact weight: 4.0kg ±0.2kg
Impact height: 600mm ±5mm
High-precision displacement sensor grabs the data.
HT-6018-A special upper computer software to control the rise, fall and data algorithm.
The report can be saved as Word, Excel, PDF, JPG and other formats.
Connected to a printer, the report can be printed.
The software supports data storage, historical information query, data export, printing, etc..
Software with Chinese and English, can be switched.
With a dedicated computer
在线联系供应商
Other supplier products
 |

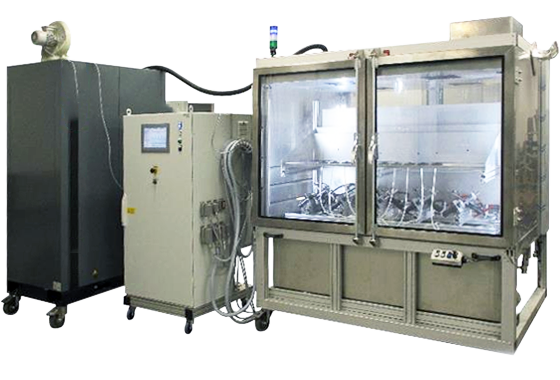

Windshield Washer Nozzle Fatigue Test MachineISO 6255，Automotive windshield washer system test equipment | The Windshield Washer Nozzle Fatigue Test Machine is designed to evaluate the durability and performance of automotive nozzles, including windshiel... |
 |
