Particle Strength Tester

Particle Strength Tester
  • Particle Strength Tester
供应商: 上海千实精密仪器

供应产品
在线联系供应商

Standard

  • ASTM D4179: Standard Test Method for Single-Pellet Pressure Resistance of Catalysts and Catalyst Carriers
  • ASTM D6175: Standard Test Method for Radial Crush Strength of Extruded Catalyst and Catalyst Carrier Particles
  • ISO 9773: Methods for Testing Catalysts – Radial Crush Strength

Product Advantages

  1. Unrivaled Precision
    • Sub-micron Force Resolution: Detects forces as low as 0.001 N for fragile materials like pharmaceutical granules.
    • High-Speed Data Acquisition: 10,000 Hz sampling rate captures transient deformation events.
  2. Universal Applicability
    • Tests particles from 0.1 mm to 50 mm in diameter (spherical, cylindrical, irregular shapes).
    • Multi-Mode Testing: Compression, tension, shear, and indentation modes in one platform.
  3. Intelligent Automation
    • AI-powered load application adjusts speed and force in real-time to prevent sample damage.
    • Auto-Centering Fixture: Ensures perfect alignment for irregularly shaped particles.
  4. User-Friendly Workflow
    • 10.1” HD touchscreen with gesture control and multilingual interface (12 languages).
    • One-Click Testing: Preprogrammed protocols for ASTM/ISO standards simplify operator training.
  5. Data Integrity
    • Blockchain-secured data storage prevents tampering (compatible with 21 CFR Part 11).
    • Cloud-connected analytics for remote monitoring and collaboration.

Product Features

  • Non-Destructive Testing (NDT) Option: Ultrasonic imaging module visualizes internal cracks without breaking samples.
  • Environmental Chamber Compatibility: Temperature (-40°C to 200°C) and humidity (10%–95% RH) control.
  • Dynamic Force Profiling: Programmable force ramps with sinusoidal, triangular, or custom waveforms.
  • 3D Force Mapping: Scans particle surfaces to identify weak points before full testing.
  • Emergency Stop System: Laser-based safety curtain halts operation upon intrusion detection.

Technical Parameters

ParameterSpecification
Force Range 0.001 N – 5,000 N (500 kgf)
Force Accuracy ±0.1% of reading (1–5,000 N)
Displacement Resolution 0.01 μm
Testing Speed 0.001–1,000 mm/min (adjustable)
Return Speed Up to 2,000 mm/min for rapid cycling
Connectivity USB 3.1, Ethernet, Wi-Fi 6, Bluetooth 5.0
Power Consumption 600 W (max), 50 W (idle)
Dimensions 550mm (W) × 480mm (D) × 720mm (H)
Weight 75 kg (net) / 90 kg (gross)

Accessories Included

  1. Testing Fixture Kit:
    • Compression platens (2mm/5mm/10mm diameters).
    • Tensile grips with serrated jaws (0.5–50mm capacity).
    • Shear blade set (V-notch and flat options).
  2. Software Suite:
    • License key forParticleAnalyst Pro(Windows/macOS).
    • 6-month free access to AI-driven failure prediction module.
  3. Calibration & Safety:
    • NIST-traceable calibration weights (1g–500g set).
    • Emergency stop pendant with magnetic dock.
  4. Portability & Storage:
    • Shockproof carrying case with custom foam inserts.
    • Dust cover and anti-vibration pads.
  5. Documentation:
    • Quick-start guide (printed and digital).
    • Compliance certificates for ASTM/ISO standards.

在线联系供应商

至: 上海千实精密仪器
Your E-mail:
消息正文:


Send to other suppliers

Other supplier products

Car seat headrest insertion and withdrawal force durability tester
 Car seat headrest insertion and withdrawal force durability tester Applicable standards: GB 11550-2009 "Automobile seat headrest strength requirements and test methods" : This standard specifies the test methods a...
Geomembrane tear strength tester
 Geomembrane tear strength tester Standard ASTM D7176(Standard Test Method for Determining the Resistance of Geomembranes to Slow Steady-State Strain) ISO 17548(Geosynthetics - ...
Atlas Ci xenon lamp aging test chamber
 Atlas Ci xenon lamp aging test chamber The Ci Series Weather-Ometers are the most widely used rotating rack water-cooled xenon-arc weathering testing instruments in the world. Their larg...

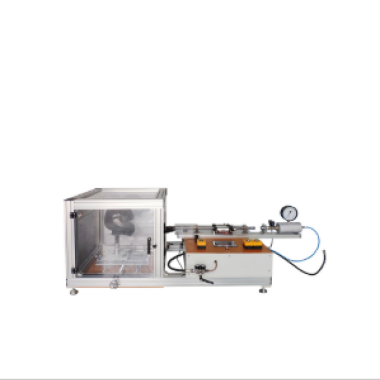

Helmet Goggles High Speed Particle Impact Testing Machine
 " Helmet Goggles High Speed Particle Impact Testing Machine" Main Purpose To test the impact - resistance performance of glasses, goggles and face shields at a certain speed. Applicable Standards SNELL S...

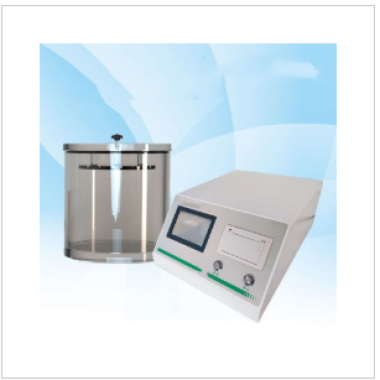

Catheter Vacuum Leak Tester
