Taber Abrasion Resistance Tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Taber Abrasion Tester is also referred to as Taber abraser or Taber abrader, which is used to evaluate the wear resistance of materials or finished products.
The machine features a rotary platform, allowing two abrading wheels to slide against the test piece at a constant speed.
This single platform Taber Abrasion Tester owns an elaborate design and adopts a precise drive system and a transmission device to ensure it runs smoothly, reliably and with low noise during use, providing a reliable and comfortable testing experience.
It is widely applicable to the determination of abrasion resistance of the leather, fabrics, textiles, coatings, paint, glass, ceramics, paper, high-pressure decorative laminates, natural rubbers, plastics, etc.
Test Principle of Taber Abrasion Tester
A test piece is mounted to the round turnplate (as a specimen holder) with rotation function under control. Two abrasive wheels attached to the free ends of pivoted arms rub against the specimen under the given downward pressure. Driven by the turntable, one abrading wheel grinds the test piece inward toward the center, and the other one rubs the test piece outward toward the periphery. Abrasion resistance is assessed by an average rate of loss in mass / volume of the specimen or the number of cycles to the end-point.
Standards：
ISO Standards: ISO 9352. ISO 5470. ISO 7784
ASTM Standards: ASTM D1044. ASTM D3884. ASTM D4060
Chinese Standards: GB/T 5137.1. QB/T 2726
German Standard: DIN 53109
ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, ASTM D4685,
TAPPI T476, ISO 9352, ISO 5470-1,
JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109,
DIN 53754, DIN 53799, SATRA TM163
Product Advantages
Versatile Applications: Suitable for testing abrasion resistance of fabrics, cardboard, coatings, leather, tiles, glass, natural rubber, and more.
User-Friendly Operation: Intuitive LCD control panel with real-time speed display and adjustable speed settings (30–75 RPM).
Precision Compliance: Meets ASTM-standard 125g pressure requirements via adjustable counterweights, with optional loads up to 1250g.
Customizable Testing: Preset wear cycles (1–999.999 revolutions) and vacuum suction height adjustment for debris removal, enhancing test accuracy.
Durability & Performance: Branded silent motor ensures low-noise operation and long-term reliability.
Consistent Results: Pre-grinding standardization of abrasion wheels guarantees high repeatability in test outcomes.
Product Features
Digital Control Interface: LCD screen displays real-time speed (30–75 RPM adjustable) and allows manual or programmed cycle settings.
Advanced Balance System: Rear arm equipped with interchangeable counterweights (250g, 500g, 750g, 1000g) for precise pressure control, including 125g ASTM compliance.
Adjustable Vacuum System: Height-adjustable suction port adapts to materials of varying thicknesses, efficiently removing debris during testing.
Modular Abrasion Wheels: Replaceable wheels (e.g., CS-10. H-18) and sandpaper discs (S-11) cater to diverse material testing needs.
Sample Preparation Kit: Includes sample stickers (S-36) and a diamond wheel polisher for pre-test surface conditioning.
Technical Parameters
| Parameter | Specification |
|---|---|
| Rotational Speed | Adjustable: 30–75 RPM (digital control) |
| Sample Diameter | 100 mm |
| Test Platform Diameter | 113 mm |
| Cycle Range | 1–999.999 revolutions (presettable) |
| Air Pressure | 250g (standard) |
| Weight Options | 250g, 500g, 750g, 1000g (included); 125g (optional) |
| Wheel Pressure Range | 125g, 250g, 500g, 750g, 1000g, 1250g |
| Vacuum Arm Adjustment | Height-adjustable |
| Power Supply | 220V, 50Hz |
| Dimensions | 220 (W) × 380 (D) × 300 (H) mm |
| Net Weight |
20 kg |
在线联系供应商
Other supplier products
 |
Textile Far - Infrared Radiation Heating Tester | Applications Textile Far Infrared Radiation Temperature Rise Tester is used for various textiles including fibers, yarns, fabrics, nonwovens, and ... |
 |
Thermal Conductivity Tester for Silicone and Ceramic Substrates，ASTM D5470 industrial and lab material thermal tester | Thermal Conductivity Tester for Silicone and Ceramic Substrates is a high-precision instrument designed to measure thermal resistance, thermal cond... |
 |
Laboratory needle flame tester | Product description Needle flame testeris the needle-shaped burner by a certain size, fill the inside with a specific gas (butane), and at 45 °... |
 |
Office Chair Caster Durability Test machine | Implementation standards GB/T4085 EN425 Product features 1. The instrument adopts PLC touch screen control, simple and intuitive operation; 2. ... |
 |

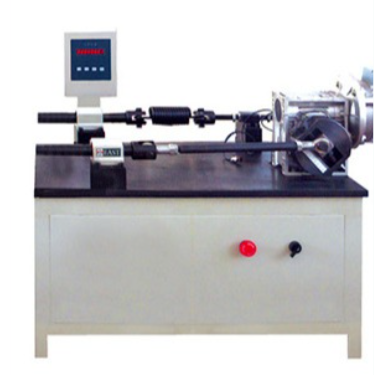

Flexible shaft fatigue testing machine for vehicles | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application This tester is applicable to a wide range of vehicle control cables and flexib... |
