Thermal Comfort Environmental Chamber
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
HVAC and Thermal Comfort Research: Study human thermal comfort and conduct experimental teaching in controlled climate environments.
Textile and Apparel Testing: Test and optimize textile and garment performance under varying temperature and humidity conditions to ensure comfort, durability, and compliance with standards.
Electronics and Components Reliability: Perform high/low temperature, constant and cyclic, and humid-heat testing for electronics, components, and materials to evaluate environmental reliability.
Automotive Battery Testing: Simulate different environmental conditions to verify safety, reliability, and performance of power batteries.
Pharmaceutical and Life Sciences: Evaluate drug stability, degradation, and efficacy under controlled temperature and humidity conditions.
Medical and Sports Science: Measure human oxygen consumption, CO₂ production, and energy metabolism; customized chambers can serve as human metabolism test units for medical and sports research.
Standards
Internal compliance with laboratory safety and electrical standards.
Temperature and humidity control performance aligned with industrial environmental simulation requirements.
Customization may include air exchange compliance per client specifications.
Parameters
| No. | Item | Technical Specifications |
|---|---|---|
| 1 | Chamber Dimensions | External: 4 m (L) × 4 m (W) × 3.2 m (H) Internal: 3.8 m (L) × 3.8 m (W) × 2.6 m (H) Standard insulated door: 0.8 m × 2.0 m with double-glass observation window Internal lighting: 1 daylight lamp; power outlet: 2.5 kW Digital display panel for temperature and humidity readings Optional window installation available upon request |
| 2 | Temperature Range | 10–43°C ±0.5°C adjustable |
| 3 | Humidity Range | 35–90% ±5% adjustable |
| 4 | Air Change Rate | 4–12 ACH; optional single-pass fresh air supply available (additional installation required) |
| 5 | Electrical Control System | Centralized control panel; Supply: AC 380V/50Hz, max power ≤15 kW; Equipped with short-circuit and over-temperature protection |
| 6 | Working Environment | Standard laboratory conditions |
| 7 | Other Requirements | Refrigeration unit piping and electrical lines default 5 m; site preparation including leveling, wall openings, rain shelter, water supply, drainage, and main power line to control box to be provided by user; chamber panels: 100 mm PU double-color steel |
| 8 | Special Notes | Default specifications are factory standards; custom requirements exceeding these parameters require additional consultation and pricing |
Features
High-Precision Temperature and Humidity Control: Maintains stable, uniform environmental conditions with ±0.5°C and ±5% RH accuracy.
Flexible Chamber Design: Spacious interior allows large-scale experiments and accommodates multiple test subjects or equipment simultaneously.
Observation and Control: Equipped with observation window, internal lighting, and digital panel for real-time monitoring of chamber conditions.
Customizable Air Exchange: Air change rates can be adjusted; optional fresh air integration ensures specific ventilation needs.
Safety and Reliability: Electrical protection, short-circuit, and over-temperature safeguards ensure operational safety.
Modular Installation Support: Refrigeration, water supply, drainage, and electrical preparation allow for seamless on-site setup.
Send product request
Other supplier products
 |

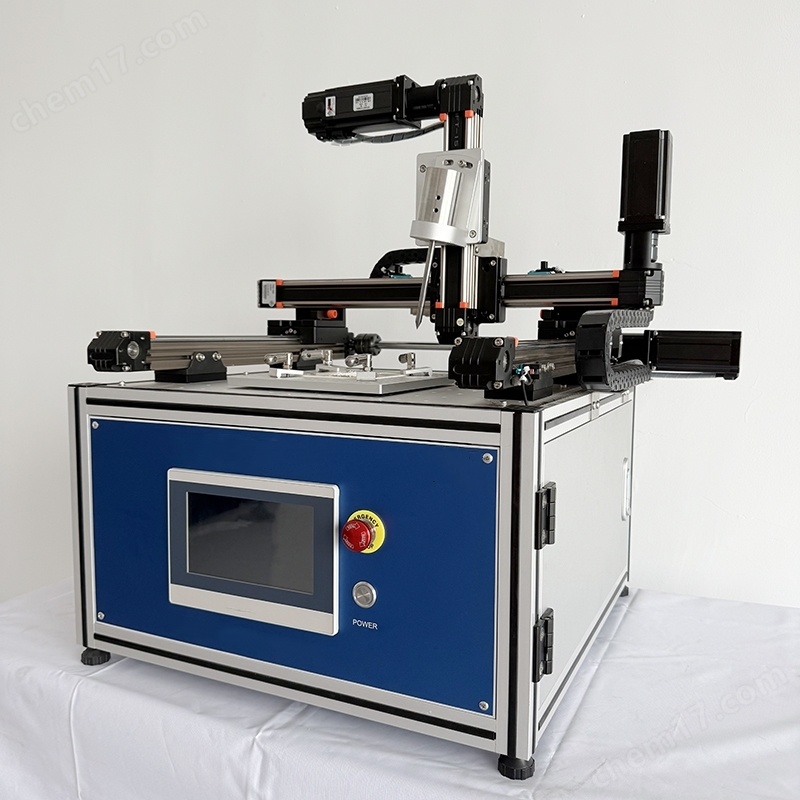

Coating scratch test equipment for durability testing | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards (1) GB 4706.1-2005 Safety of household and similar electrical appliances –... |
 |
