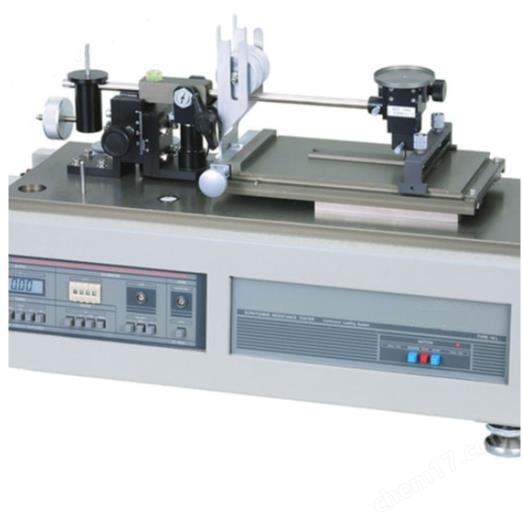

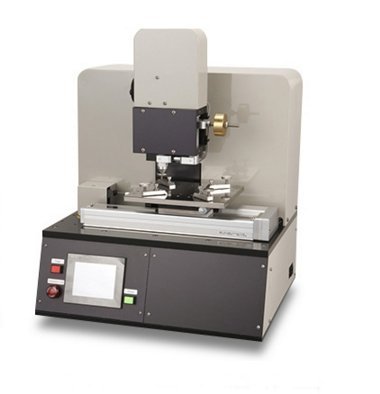

Multifunctional Dynamic Scratch and Wear Tester
Get a quote：
Web: qinsun-lab.com
Email：serving@qinsun-lab。com
The Multifunctional Dynamic Scratch and Wear Tester is designed to evaluate the scratch, wear, and impact resistance of various materials and surfaces. It accommodates both laboratory samples and finished products, whether flat or curved. This versatile tester provides precise, repeatable testing under controlled loads and motion parameters, supporting research, quality control, and product validation across multiple industries.
Application
Primary applications
Scratch, wear, and impact resistance testing for materials and surfaces
Evaluation of automotive interior materials, polymers, and metal coatings
Laboratory research and product quality assurance Testing of both flat and curved samples for industrial or consumer products
Typical tested products
Automotive interior panels and trims
Metal and polymer-coated components
Consumer products with protective surface coatings
Laboratory-prepared material samples
Standards
(1) BMW GS 97034-8 – Automotive interior materials surface tilt test specification
(2) BMW GS 97034-9 – Automotive interior materials surface scratch test specification
(3) GB/T 23989-2009 – Determination of scratch resistance of coatings
(4) GB/T 1768-2006 – Paint film wear resistance measurement
(5) GB/T 12444-2006 – Metallic materials wear test method
(6) ISO 7148 – Metallic materials – Friction and wear test method
(7) ASTM G171 – Scratch hardness determination of materials
(8) ASTM G133 – Reciprocating sliding wear test method
(9) ASTM G99 – Pin-on-disk friction and wear test method
(10) ASTM D7027 – Evaluation of scratch resistance of polymer coatings
Parameters
| Test Function | Technical Specification |
|---|---|
| Test Force Range | 0~30 N (adjustable in 1 N increments) |
| Stroke Length | Up to 120 mm |
| Test Line Speed | Up to 1500 mm/s |
| Cycle Count | 0~999.999.999 (programmable) |
| Sample Type | Sample A: Disk edge, radius 2.5 mmSample B: Pin tip |
| Working Stage | X-Y working test stage |
| Power Supply | AC 220 V, 50 Hz, 750 W |
Features
Dual control system: PLC + Windows, allowing system switching.
User-friendly interface: 12-inch embedded industrial computer with Chinese/English option.
Supports Wi-Fi connection to printers for automated reporting.
Real-time curve display for monitoring scratch and wear performance.
Capable of testing both flat and curved samples with interchangeable test heads and media.
Flexible programming for test mode, speed, stroke, and applied load.
Supports both wet and dry testing methods.
