7.5kW Super Xenon Weather Meter
SX75 7.5kW Super Xenon Weather Meter is designed to artificially replicate indoor and outdoor environments—such as sunlight, temperature, humidity, and rainfall—to accelerate the aging of products and materials, thereby predicting their service life.
This model delivers irradiation levels up to three times that of solar ultraviolet light (180W/m²), meeting the demands of today's rapidly evolving products.
Standards
ISO 4892-2: Plastics—Methods of exposure to laboratory light sources (Xenon-arc lamps).
ASTM G155: Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Nonmetallic Materials.
SAE J2527 / J2412: Performance-based exposure of automotive exterior and interior trim using a controlled irradiance xenon-arc apparatus.
JIS D0205: Test of weatherability for automobile parts.
JASO M346: Light-exposure test method for automotive interior parts.
AATCC TM16.3: Colorfastness to light (Xenon-Arc).
GB/T 16422.2: Plastics—Methods of exposure to laboratory light sources—Part 2: Xenon-arc lamps.
Features
Ultra-Accelerated Aging: You can achieve testing speeds up to three times faster than standard xenon testers, significantly reducing the R&D cycle for new materials.
7.5kW Water-Cooled Stability: The high-power water-cooled lamp ensures stable irradiance even at maximum output, preventing spectral shifts that can occur in less powerful air-cooled systems.
Precision Environmental Control: The SX75 offers a tighter tolerance for BPT ($pm 1^circtext{C}$) and chamber temperature, providing the high level of repeatability required for scientific research.
Complex Moisture Simulation: Beyond simple rainfall, the dual spray and rear spray functions allow you to simulate the specific effects of evening dew and backside condensation.
High-Irradiance BPT Management: Even at $180text{W/m}^2$, the sophisticated airflow and cooling systems allow you to maintain a Black Panel Temperature as high as $95^circtext{C}$ for specialized heat-resistance testing.
Parameters
|
Light source |
One 7.5-kW water-cooled xenon arc lamp |
|
Test types |
Light only,Light&Spray on front face(Rain),Dark only,Dark&Spray on back face(Dew),Dark&Spray on both faces |
|
Irradiance |
60 W/㎡to 180W/㎡ at 300nm to 400nm (Filter requirement example;quartz inner filter and#295 outer filter) |
|
Temperature and humidity range |
Light test:50℃to 95℃±1℃of black panel temperature(BPT;depending on the level of irradiance); 50%rh to 60%rh±5%rh(at 63℃of BPT and 180W/㎡) |
|
Dark test:38℃±1℃of chamber temperature; 95%rh±5%rh |
|
|
Quantity of specimen |
Maximum 54 pieces(Specimen size:150mm x70mm,1mm thick) |
|
Electrical requirements |
Three-phase,200V,approx.74A |
|
External dimension |
Approx.Width 105cm,Depth 135cm,and height 204cm (Weight:approx.570kg) |
|
Related standards |
ISO,ASTM,SAE,JIS,and JASO(subject to different accessories) Simultaneous BPT and CT control(SAE)available. |
Accessories
High-Power Xenon Lamp: Specialized 7.5kW water-cooled xenon arc burner.
Filter System: Selection of inner (Quartz) and outer (#295. #320. etc.) filters to tailor the spectrum.
Specimen Holders: Precision-machined stainless steel holders for 54 standard samples.
BPT Sensor: High-accuracy Black Panel Thermometer for surface temperature control.
Chiller Unit: High-capacity water cooling system for lamp thermal management.
Irradiance Calibration Meter: For periodic verification of the UV intensity.
Send product request
Other supplier products
 |
Conduit Bending Test Machine | The Conduit Bending Test Machine is designed to evaluate the bending and torsion resistance of photovoltaic (PV) module conduits. By applying speci... |
 |
Bundesmann Water Repellency Tester - Test Equipment | I. Product Overview TheTextile Bonded Door Drench Testeris a specialized instrument designed to evaluate the water resistance and durability of te... |
 |

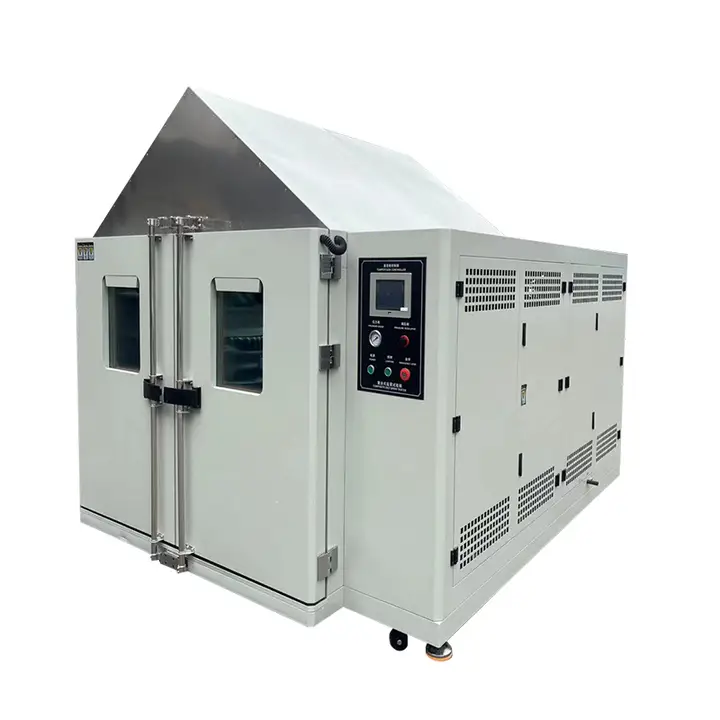

walk in Salt Spray Test Chamber | The Large-Scale Composite Salt Spray Test Chamber is a professional environmental simulation instrument designed to replicate complex corrosion con... |
 |
Comprehensive Engine Oil Filter Test Bench | The test bench is mainly used to test the differential pressure-flow characteristics, filter element bypass valve characteristics, pressure drop re... |
 |

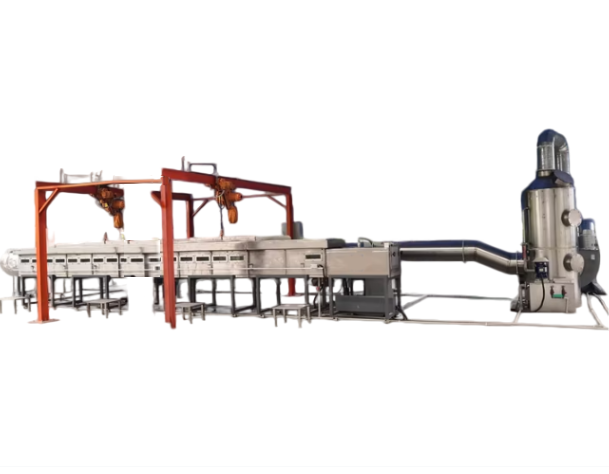

ASTM E84 Building Materials Flame Spread Test Apparatus | The ASTM E84 Building Materials Flame Spread Test Apparatus is designed to evaluate the combustion performance of flooring, ceiling, wall coverings... |
