Electrostatic blue Polyester wrinkle Powder coating
Applications
-
Applied by electrostatic spraying gun that can provide negative tension of 60-80 kV.
-
Curing schedule : 180-200ºC /10-15 minutes depending on the powder chemistry.
-
Optimal film thickness : 80 -110 um.
-
The size of wrinkle pattern obtained depends on the coating thickness.
-
Excessively thin or thick films will not give a satisfactory finish.
Average Coverage
7-10m³/kg, the membrane is 60μm
(calculate by 100% utilization rate of powder coating).
Storage Requirements
Store below 30 °C, ventilated, dry, clean room, not near the fire, heat, direct sunlight, open dumps is prohibited.Under this condition, the powder can be stable for 12 months, more than the storage period may be re-examined, such as the results meet the requirements, can still be used.
Health and Safety
This product is non-toxic. In the course of inhalation of dust should be avoided. The operators should wear appropriate dust mask and glasses.
Specifications
| Chemistry Property | Inspection Standards | Test Indicators (High light) | Test Indicators (Glazed/Matte/Low light) |
|---|---|---|---|
| Impact resistance | ISO 6272, GB/T 1732-1993 | 50kg/cm | 40kg/cm |
| Cupping test | ISO 1520, GB/T 9753-1988 | 8mm | 7mm |
| The adhesion (grid method) | ISO 2409, GB/T 9286-1998 | 0 | 0 |
| Bending | ISO 1519, GB/T 6742-1986 | 2mm | 3mm |
| Pencil Hardness | ASTM D3363, GB/T 6739-1996 | 1H-2H | 1H-2H |
| Salt spray test | ISO 7253, GB/T 1771-1991 | >500 hours | >500 hours |
| Damp heat test | ISO 6270, GB/T 1740-1979 | >1000 hours | >1000 hours |
| Heat resistance | 110℃/24 hours (white) | Good gloss retention, ΔE≤0.3-0.4 | Good gloss retention, ΔE≤0.3-0.4 |
| Florida weathering exposure | ISO 2810, South 45°, 12 months | Gloss retention≥50% | Gloss retention≥50% |
| Artificial accelerated aging | 60℃/8 hours + 50℃/4 hours condensing, cycle for 500 hours | Gloss retention≥50%, Color stability: ΔE≤0.35 | Gloss retention≥50%, Color stability: ΔE≤0.35 |
| Annotate | 1. The above experiment uses 0.8mm steel with degreasing and rust removal, and the coating thickness is 50–70 microns.2. The above coating performance may be lower for glossy and slightly lower gloss finishes. |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Sheng Tang Guo Feng Series Powder Coatings | Introduction The MT Sheng Tang Guo Feng Series Powder Coatings blend traditional Chinese aesthetics with modern coating technology, offering a uni... |
 |
Functional Powder Coatings for Industry | Functional Categories Overview FunctionalityKey FeaturesTypical Applications Anti-Corrosion Salt spray resistance, marine-grade protec... |
 |
Functional Material Powder Coatings | 1. Targeted Solutions for Industrial Challenges Functional powder coatings address industry-specific needs where traditional coatings fall short, ... |
 |
Heat Resistant Powder Coating for Extreme Temperatures | 1. Professional Heat Resistant Coating Solutions for Industry When metal components face high-temperature environments, traditional coatings often... |
 |

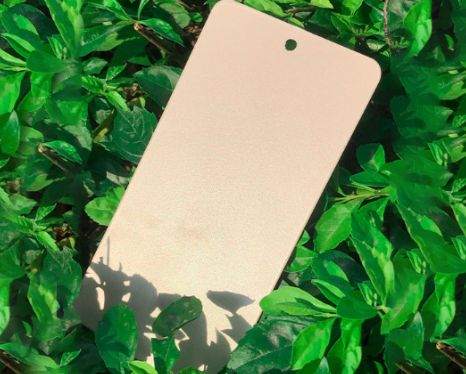

Aluminum veneer high gloss metal powder coating | Product parameters Name: Powder coating Color: High weather-resistant sand grain brown/high metal matte silver/rose gold Color code: Customized ... |
