Roof-Mounted Photovoltaic Module Fire Test Apparatus
The Roof-Mounted Photovoltaic Module Fire Test Apparatus is a specialized testing system developed in accordance with GB/T 30735-2014 for evaluating the external fire performance of roof-mounted photovoltaic modules and roofing products. Based on test principles derived from ENV 1187 (t1 method) and ISO 12468-1. the apparatus simulates different fire exposure conditions such as wind influence and thermal radiation.
Standards
The apparatus is designed to meet the requirements of the following standards:
(1) GB/T 30735-2014 – Test Method for Reaction to External Fire of Roofs and Roof Coverings
(2) ENV 1187: t1 – Test Methods for External Fire Exposure to Roofs
(3) ISO 12468-1:2013 (Method B) – Fire Performance of External Roofs and Roof Coverings — Part 1: Test Methods
(4) ISO 12468-1:2013 (Method C) – Fire Performance of External Roofs and Roof Coverings — Part 1: Test Methods
(5) UL 1703: multi-family and hotel room individual dwelling unit smoke detection monitors: electric signal detection of house dust;
(6)UL 790: standard method of fire test for roof covering materials;
(7)ASTM e 108-04: standard method of fire test for roof covering materials;
(8)NFPA 256: fire test of roof deck.
(9)IEC 61730-2 Appendix b: fire tests on PV modules.
Parameters
| Item | Specification |
|---|---|
| Radiant Panel Radiation Surface | 600 mm × 600 mm |
| Wood Crib Fire Gas Combustion Device | 1 set |
| Test Specimen Rack Angle | Adjustable, 0–50° |
| Air Duct Material | SUS304 stainless steel |
| Air Duct Thickness | 2 mm |
| Fan Airflow Capacity | Max. 250 m³/min |
| Fan Power | 5.5 kW |
| Fan Frequency Control | 3-phase 380 V, 5.5 kW |
| Air Duct Adjustable Angle | 0–35° |
| Impeller Anemometer | 3 units |
| Wind Speed Accuracy | 0.1 m/s |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Testing apparatus-Back & Butt Forms | The 5th Percentile Female SAE Butt Form is meticulously derived from the NHTSA Hybrid III Fifth Percentile Female Anthropomorphic Test Device (ATD)... |
 |
Thermal Radiation Performance Tester(RPP) - lab instrument | Automotive interior materials droplet characteristic testeris according to appendix 7 of ECE R118 to determine the melting characteristics of mater... |
 |
Multi-Functional Scratch Tester | Multi-Functional Scratch Tester is suitable for testing automotive interior materials, plastic, rubber, leather, coated fabric, coating materials, ... |
 |
G238BB Electronic Crockmeter | G238BB Electronic Crockmeter(Electronic rubbing colour fastness tester) G238BB Electronic Crockmeteris used for testing the color fastness of fabr... |
 |

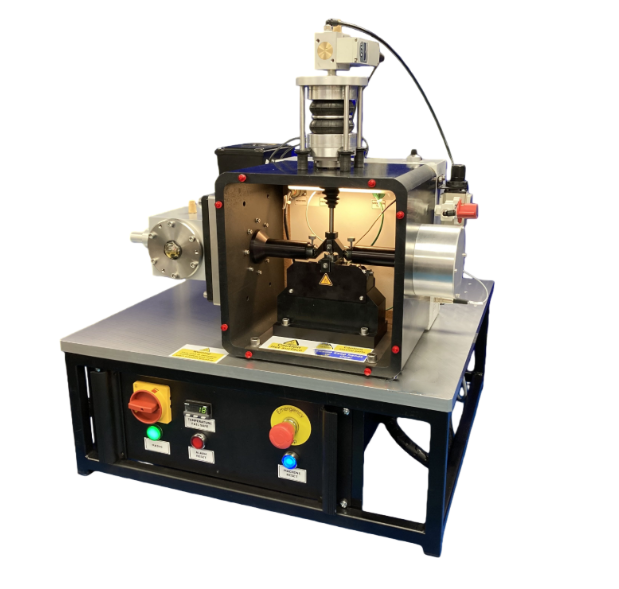

Reciprocating Tribometer | The Reciprocating Tribometer is a value-engineered tribological testing instrument designed for lubricated ball-on-flat experiments. You can perfor... |
