Safety Harness Test Rubber Dummy
Application
Performance testing of fall protection safety harness systems
Performance evaluation of harness systems for guardrail work
Verification of area-restricted safety harness systems
Rescue harness performance testing
Dynamic and static load testing of safety harnesses
Safety inspection for construction and industrial high-altitude work
Verification of safety harness products in testing laboratories and inspection agencies
Standards
GB6095-2021 Fall Protection Safety Harness
GB/T6096-2020 Fall Protection Safety Harness System Performance Test Methods
GB6095-2009 Safety Harness
GB/T6096-2009 Safety Harness Test Methods
Product Specifications
| Item | Technical Parameters |
|---|---|
| Dummy Weight | 100 ± 2 kg, 136 ± 2 kg |
| Surface Hardness | >90 HD |
| Rubber Thickness | ≥40 mm |
| Number of Attachment Points | 4 (1 each for left and right hands, 1 head, 1 crotch) |
| Attachment Material | 304 Stainless Steel M16 Lifting Rings |
| Key Dimensions | Shoulder width: 483 mm, Hip width: 400 mm, Leg circumference: 150 mm, Neck circumference: 150 mm, Leg spacing: 50 mm |
| Exterior Material | Molded as a single internal structure, integrated outer rubber layer |
| Surface | Smooth transitions to avoid metal contact interfering with tests |
Product Features
Integrated one-piece mold design with smooth surface, simulating human body shape
Adjustable hardness at different body parts to simulate varying load-bearing properties
Full-body rubber construction avoids metal interference with harness testing
Equipped with four high-strength M16 stainless steel lifting rings for various experimental connections
Dimensions comply with GB/T6096-2020 standard
Suitable for dynamic load, static load, and fall slip experiments
Accessories and Consumables
| Accessory/Consumable | Description |
|---|---|
| Lifting Rings | 4 × M16 304 stainless steel rings (1 each for left and right hands, 1 head, 1 crotch) |
| Flat Lifting Straps | For connecting the harness to the dummy |
| U-Shaped Shackles | For harness fixation, adaptable to different test scenarios |
| Sensor Connectors | For data acquisition in dynamic load testing |
| Rubber Protective Covers | Prevent metal contact from affecting test results |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Compression Fatigue Tester | Standard YY/T 0959-2014 (China): Specifies compression fatigue testing protocols for intervertebral fusion devices, including load ratios, frequen... |
 |
Hot Cold Chamber | Features and Benefits 1.Hotcoldchambercan range from very low temperatures ( -70 ° C or lower) to high temperatures (+180 ° C or higher) t... |
 |
Five-Finger Scratch Tester | The Five-Finger Scratch Tester is a precision instrument designed to assess the scratch resistance of automotive interior materials, plastics, rubb... |
 |
Walk-in Constant Temperature and Humidity Test Chamber,Walk in Chamber Temperature Aging Room | Applications The Walk-in Constant Temperature and Humidity Test Chamber is suitable for conducting accelerated humidity and heat testing, cyclic h... |
 |

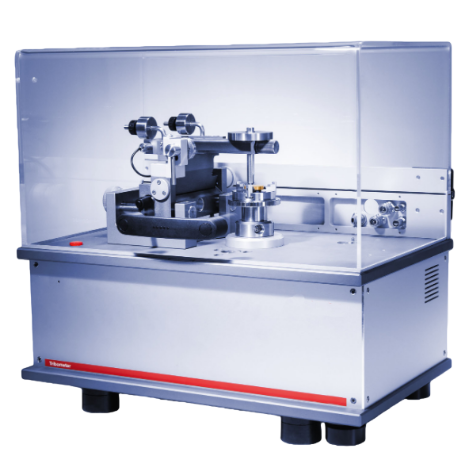

Multi-Functional Tribology Tester | The Multi-Functional Tribology Tester is a high-precision friction and wear testing system designed for materials science, lubricants, oil additive... |
