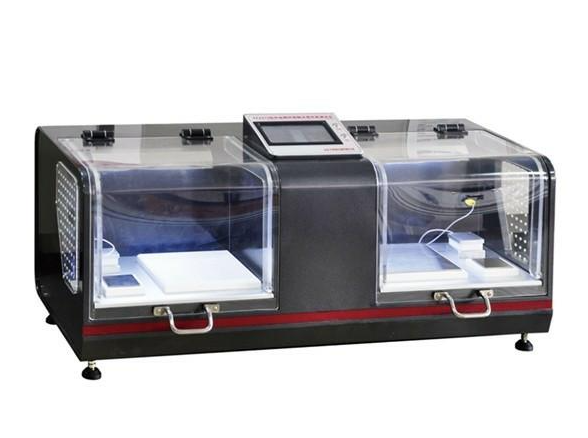

Fabric Cooling Sensation Tester JIS L1927-2020
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
Fabric Cooling Sensation Tester is used to evaluate the instant cooling sensation upon skin contact for textiles and sheet materials, such as nightwear, bedding, and undergarments.
Standards
GB/T 35263-2017 Textiles - Testing and Evaluation of Instant Cooling Sensation Performance
CNS 15687 Test Method for Instant Cooling Sensation Performance of Fabrics
FZ/T 50048-2020 Test Method for Instant Cooling Sensation Performance of Filament Chemical Fibers
FZ/T 73067-2020 Knitted Garments with Contact Cooling Sensation
FZ/T 62042-2020 Bedding Made from Cooling Fabrics
JIS L1927-2020 Textiles - Test Method for Determining Cooling Sensation Properties
FTTS-FA-019 Fabric Instant Cooling Sensation Verification Specification
T/CTCA 4-2018 Bamboo-Woven Cooling Mattress
Features
1. Desktop model.
2. Color touchscreen display with an elegant and stylish appearance. Menu-driven operation offers smart-level convenience.
3. Core control components utilize STMicroelectronics' 32-bit multifunctional motherboard.
4. Automatic testing with automated calculation of test results.
5. Heating plate and thermal detection plate both employ high-precision sensors.
Parameters
| Item | Specifications |
|---|---|
| Heated Plate & Bamboo Mat Probe Temperature | 20°C ~ 40°C |
| Temperature Resolution | 0.01°C |
| Temperature Sensor Response Time | 0.1s |
| Fabric Probe | Copper plate area: 9 cm², pressure: (0.1±0.01) N/cm² |
| Bamboo Mat Probe | Mass: 1.1 kg, heat flow meter dimensions: 100mm×50mm, measurement accuracy: 2% |
| Contact Coolness Coefficient (QMAX) Resolution | 0.001 J/cm²·s |
| Sample Size | Fabric: 200mm×200mm; Bamboo mat: 400mm×200mm |
| Test Environment Requirement | (20±0.5)°C (constant temperature and humidity chamber) |
| Power Supply | AC220V±10% 50Hz 100W |
| Instrument Dimensions (L×W×H) | 1000×580×446 mm |
| Weight | Approximately 40 kg |
