Cartridge Dynamic Cycle Tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Standards
(1) ISO 23840 — Hydraulic fluid power — Filters — Evaluation of filter performance using multipass test.
(2) JB/T 7857 — Performance test of hydraulic filter elements.
(3) ISO 2942 — Hydraulic fluid power — Filter elements — Verification of fabrication integrity.
(4) GB/T 14041.1-1993 — Hydraulic filter elements — Structural integrity test methods.
(5) ISO 4003 — Permeable sintered metal materials — Determination of fluid permeability.
(6) GB/T 5249-1985 — Permeable sintered metal materials — Bubble test method for pore size determination.
(7) QC/T 794-2007 — Filter paper for internal combustion engines.
Features
1. Specialized Functions: It can test the chemical element precipitation characteristics of filter elements under long-term dynamic cycling, and simultaneously evaluate the durability of filter elements under repeated dynamic stress cycling and predict fatigue life.
2. Intelligent Control: Utilizing touchscreen operation + PLC control, it can automatically identify and alarm abnormal states during the test process, offering convenient operation and stable performance.
3. Comprehensive System Configuration: Includes a circulation system (variable frequency pump set, temperature control/stirring components), a real-time temperature control system (temperature control accuracy ±2℃), and an industrial-grade electrical system, with clearly defined functional modules.
4. Lightweight Structure: The test bench frame is made of high-strength industrial aluminum profiles, combining the advantages of light weight, high strength, and aesthetic appearance.
Technical Parameters
| No. | Technical Indicators | Specifications |
|---|---|---|
| 1 | Test medium | Water containing boron, and containing lithium hydroxide |
| 2 | Test flow | 2-10 m³/h (working point: 5.7) |
| 3 | Rated pressure | 0.8 MPa |
| 4 | Test cartridge differential pressure | 0.4 MPa |
| 5 | Maximum working temperature | 80°C |
| 6 | Test tank volume | 2000L |
| 7 | Maximum cartridge size | 2.5 inches × 60cm (diameter × height cm), with a set of equipment |
| 8 | Test bench power | 22kW |
| 9 | Test bench power supply | Three-phase five-wire AC380V / 50Hz |
Accessoriess
1. Core Functional Components:
Circulation System: Variable frequency pump set, test oil tank, temperature control system (including 2 independent heaters), bypass pressure regulator, stirrer;
Real-time Temperature Control System: Heating device, temperature sensor;
Electrical Control System: PLC module, touch screen, industrial-grade hardware components;
2. Auxiliary Components:
Manual sampling assembly;
High-strength industrial aluminum profile test bench frame;
Piping, joints, seals, and other connecting components.
Test Procedures
1. Preliminary Preparation
Check the connection status of all systems on the test bench (circulation, temperature control, electrical) to ensure pipeline sealing and completeness of accessories; Add the test medium to the test tank and install the filter element to be tested.
2. Parameter Setting
Connect the power supply and set the test parameters (such as flow rate, temperature, circulation time, etc.) via the touch screen; Start the temperature control system and stabilize the medium temperature to the target value (temperature control range 80±2℃).
3. Test Operation
Start the variable frequency pump set to allow the medium to enter dynamic circulation at the set flow rate; The system runs automatically, and the PLC monitors the test status in real time, automatically alarming in case of abnormalities.
4. Sampling and Monitoring
Manually sample at intervals as needed to analyze the chemical element precipitation of the filter element; Continuously monitor the circulation status of the filter element and record the test data.
5. Test Completion
After the test, turn off the pump set and temperature control system in sequence; Remove the test filter element, clean the test medium and pipelines, turn off the equipment power, and organize the test records.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

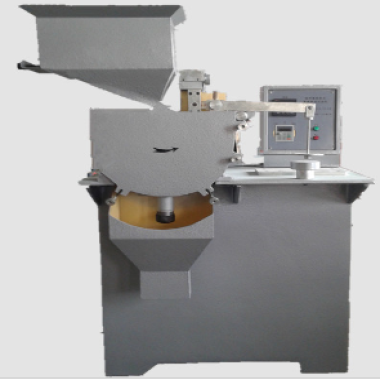

Dry Sand Rubber Wheel Wear Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com The dry sand rubber wheel abrasion tester is mainly used to test the abrasion resistance of... |
 |
