Glow wire tester
F242 Glow-wire tester, By simulating the thermal stress caused by heat source or ignition source such as hot component or overload resistor in a short period of time, so as to test the flammability and ignitability of circuit component, which is widely used in electronic and electrical, household appliances, household and industrial lighting, electrical insulation materials and so on. And, it can predict the safety during use of circuits, effectively control production and verify product performance.
Standards compliant：
ASTM D 6194-03,ASTM D6194,
IEC 60695-2-10:2021, IEC 60335,IEC60695-2-1, IEC60695-2-10, IEC60695-2-11, IEC60695-2-12, IEC60695-2-13;
UL 746 A;
VDE 0620;
GB/T 5169.10-2006;EC :Fire hazard testing for Electrical and electronic products -- Part 10: Glowing-wire/ Hot-wire based test method, Glowing-wire apparatus and common test procedure.
GB/T 5169.11-2006/IEC : Fire hazard testing for Electrical and electronic products -- Part 11: Glowing-wire/Hot wire basic test method, Glowing-wire flammability test method for finished products.
GB/T 5169.12-2006/IEC ; Electrical and electronic products ,Part 12: Glowing- wire/Hot-wire based test method, Glowing-wire flammability index (GWFI) test method for materials.
GB/T 5169.13-2006/IEC ; Electrical and electronic products ,Part 13: Glowing- wire/Hot wire basic test method, Glowing-wire flammability (GWFI) test method.
Major Features：
Transparent safety door
The heat-resistant glass observation window allows the test to be observed at any time during the test while keeping the test free from external environmental disturbances.
Automatic heating, illumination, exhaust device
Glowing-wire automatic heating timing, equipped with automatic control of the glowing-wire contact position, precise control, convenient and reliable, and the test device is equipped with lighting and exhaust.
Intelligent touch screen control panel
The microcomputer control system is more efficient and reliable, and the programmable 7-inch color LCD touch screen realizes various functions such as control, detection, calculation and data display.
Stepping motor control - accurate moving speed
The moving speed of the sample is controlled by high-end stepping, which has high precision and long service life. In addition, the test device is equipped with flame ruler, and the flame height can be observed at any time during the test.
Sample rack dis-assembly type design
The sample holder of the test device can be removed for loading and cleaning,and it use physical pressure, which has precise pressure,convenient operation and high efficiency.
Field Application：
It is used in the evaluation of flammability tests and light-off temperature tests for electrical equipment and its components and accessories, as well as solid electrical insulating materials or other solid flammable materials.
It is used for the test of ignition hazard of electronic and electrical products, the evaluation of hot burning performance and the test of high temperature resistance.
It is used to determine the light-off property, light-off temperature, flammability and flammability index of solid insulating materials and other solid combustible materials.
It is used to test flame retardant properties for the insulated enclosure of household appliances, switch panels, printed circuit boards,and insulating materials.
It is applicable to the performance verification of new products, quality control of the production department, and the of material properties for the third-party testing organization, the product performance verification laboratory, and the quality and technical supervisiondepartment, etc.
Technical Parameters：
|
Enclosure: It is equipped with observation window, inner black fireproof material coating. |
special standard ring, horizontal static Temperature sensing delay : 1.7S |
|
Control screen: Intelligent touch Observation window: transparent |
Transformer parameters: 500VA, secondary: 2.5V, 150A Sample load: 1.0N ± 0.1N |
|
Test speed: 10mm/s ~~25mm/sadjustable |
Glowing depth: 0~9mm can be preset |
|
End of test: buzzer sounds, test piece automatically detaches |
which is controlled by high-precision steppermotor. Glowing time: 0~99s |
|
Test cabinet size: 885mmX580 mm× 1000 mm |
Effective volume ofthe test area : ≥0.5m3 |
|
Pressure limiting depth: 7mm |
Exhaust pipe diameter: 100mm |
|
Testtemperature: room temperature~999C (adjustable) |
Physical dimension: 1000mm×650mm×1250mm |
|
Glowing-wire material: ¢4mm, Ni/Cr (80/20), |
Weight: 90kg |
|
Temperature measuring element: armored K-type thermocouple(¢0.5mm), -200~1300C, precision 1C |
Power supply: 220V 50Hz |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Fiber Crimp Elasticity Tester | Product Introduction: YG362C fiber crimp elasticity meter is used for crimp degree of 1-22dtex fiber. Crimp elasticity, crimp recovery rate index... |
 |
Wire Cut - through Tester for Ford Automotive Wires | Applicable Standard: Engineering Specification - Ford Global Wire specification, PART NO. ES - AU5T - 1A348 - AA Technical Parameters: 1. Sens... |
 |
G354B toilet paper dispersibility testing machine | Product Introduction: G354B toilet paper dispersibility tester is a test instrument used to test the dispersibility of toilet paper, dispersibilit... |
 |

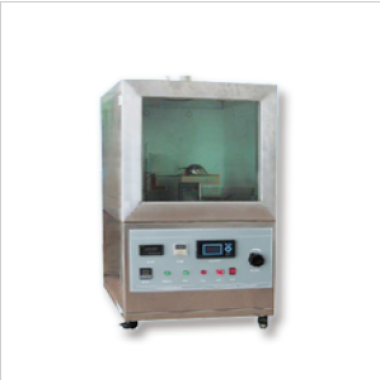

Smoke - Emission Testing Machine for Aerospace Wires and Cables | Standards Compliance: U.S. Military Specifications: MIL-W-5086C & MIL-W-22759D (smoke density and toxicity limits for wiring). Chinese Nati... |
 |
