Electrochemical Corrosion and Wear Testing Machine
Все товары поставщика
Introduction to Main Purposes
1. Evaluation of Material Corrosion and Wear Performance: By simulating the corrosion and friction - wear environments under actual working conditions, evaluate the corrosion - resistance and wear - resistance of materials, helping to screen out materials more suitable for specific working environments.
2. Evaluation of Material Surface Modification and Coating Performance: Evaluate the performance of materials with surface modification or coatings, and determine their long - term performance and stability in corrosive environments, so as to optimize the surface treatment process.
3. Evaluation of Material Tribological Performance: Study the specific behavior of materials during the friction process, measure and analyze parameters such as the friction coefficient and wear amount, providing data support for the tribological design of materials.
Technical Parameters
Test Load Range 30～1000g(weight loading), 10～50N(automatic loading)
Accuracy 0.2% F.S
Reciprocating sliding frequency 0.1～5Hz
Slide length adjustable 0.5～25mm
X-axis travel distance adjustable 0～40mm
Z-axis lift height adjustable 0～150mm
Lower specimen size range 30～80mm
Upper sample size range Ф4～Ф6mm
Ball Sample reservoir size 120mm×90mm×50mm
Maximum capacity 300ml
Friction measurement range ≦50N
Friction system measurement accuracy 0.2% F.S
Dimension of main unit(mm) 400*300*600
Weight of main unit(Kg) 50
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

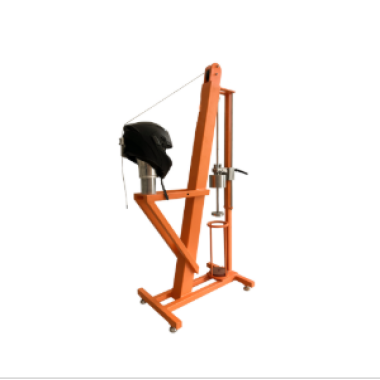

Safety Helmets Wearing Stability Tester | Standard GB 811-2022: Safety Helmets – General Technical Requirements GB 24429-2009: Sports Helmets – Requirements and Test Methods... |
 |
