Oxidizing Solids Tester
Product Description
Conforms to UN Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria 34.4.1 Test O.1: Test for oxidizing solids, 34.4.3 Test O.3: Test for oxidizing solids by weight and GB/T 21617-2008 Test Methods for Oxidizing Solids of Dangerous Goods.
Standards
GB/T 21617-2023
GB/T 21617-2008
Product Features
1. It adopts an embedded processor and the Windows CE operating system.
2. With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.
3. It is compatible with both O.1 standard and O.3 standard.
4. It uses full - automatic photoelectric detection technology to reliably detect combustion phenomena.
5. It has a full - automatic weighing detection by balance, which automatically records the mass loss during the combustion process.
6. It is equipped with a mold made of standard metal wire.
7. It can automatically detect the breakage of metal wires and provide audible and visual alarms.
8. It has a high - precision temperature and humidity detection function to effectively collect environmental temperature and humidity data.
9. During the test process, it displays the running time and test animation images in real - time.
10. It supports remote - controlled ignition to ensure the safety of personnel during the experiment.
11. The test process is fully automated, requiring no manual intervention. It supports functions such as parameter setting, data storage, and report viewing.
12. It is equipped with a temperature and humidity module to monitor the temperature and humidity of the test environment in real - time.
Technical parameters
| Working Environment | (5～40)℃, <85%RH |
| Heating Method | Standard shape inert metal wire heating |
| Heating Wire Power | 150W±2W |
| Detection Method | Infrared sensor array detection method or balance weighing detection method |
| Balance Weighing Accuracy | ±0.1g |
| Ambient Temperature Measurement Range | -10℃～+60℃ |
| Ambient Temperature Measurement Accuracy | ±0.5℃ |
| Ambient Humidity Measurement Range | 5%RH～95%RH |
| Ambient Humidity Measurement Accuracy | ±5.0%RH |
| Timing Display Resolution | 1s |
| Timing Accuracy | ±7ms/Min |
| Test Plate | Made of corundum, 150mm long, 150mm wide, 6mm thick |
| Sample Making Molds | Made of PTFE, inner diameter 70mm, angle 60° cone |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Industrial Dry Cleaning Machine,industrial garment steamer | TheIndustrial Dry Cleaning and Energy-Saving Dryer Machinesare designed for high-performance, reliable, and efficient textile cleaning and drying. ... |
 |
Luggage Walked Wear Tester | Product Introduction This product is used for suitcases, bags, strollers with wheels… Through the test mileage and test speed, to check the... |
 |
Bearing Friction Torque Measuring Instrument | Bearing friction torque is an important factor affecting bearing noise, vibration, and lifespan, and is a key indicator for measuring the dynamic p... |
 |

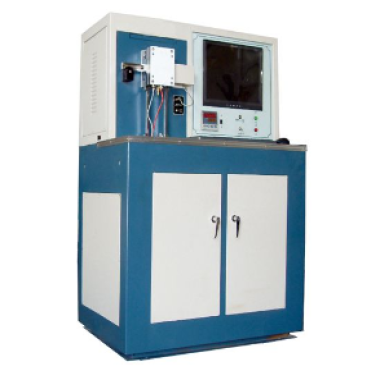

Friction and wear testing machine | It can perform flat grinding, curved grinding, edge grinding, folded edge grinding, and abrasion resistance tests such as anti-frosting, edge seali... |
 |
