Goggle Puncture Resistance Evaluation Apparatus
Applicable standards:
GB 811-2010
ECE R22.05
EN1077
Purpose
It is to make a certain weight of sharp objects fall from the height specified in the standard and act on the surface of helmet or goggles, so as to determine the ability of helmet or goggles to resist penetration by sharp objects.
Technical parameters
1. impact height 1000mm ~ 3000mm
2. impact hammer 3kg, impact hammer cone tip angle of 60 degrees
3. the head fixed frame has an adjustable device to facilitate rapid and convenient installation of helmets
4、The conduit adopts high-strength aluminum tube anodic treatment, beautiful appearance.
5、Hammer lifting method adopts manual lifting
6、Impact hammer adopts electromagnet release device.
7、Total height of the instrument is about 5m
8、Voltage 220V
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

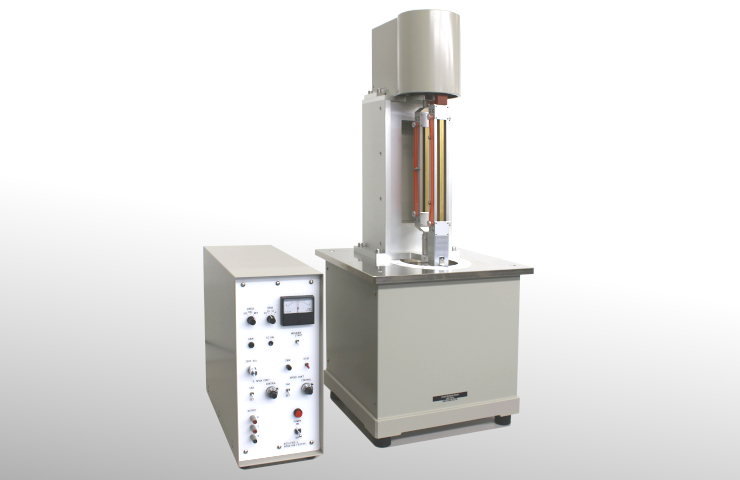

Fabric and Sheet Large Bending Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com TheLarge Bending Tester accurately and quickly measures factors related to curvatures in sm... |
 |
