VMC-1165 3-AXIS MACHINING CENTER
VMC-1165 3-AXIS MACHINING CENTER
Product Description
The VMC-11653-Axis Machining Centeris engineered for high-precision and heavy-duty machining tasks. With its robust construction and advanced features, it is ideal for industries requiring reliable performance and versatility.
3-Axis Machining Center Specifications
|
Item |
unit |
VMC-1165 |
|
Worktable area |
mm |
1200*650 |
|
Worktable maximum loading |
kg |
750 |
|
T-Slot(slot*width*distance) |
mm |
5-18*120 |
|
Spindle nose taper |
BT |
BT40 |
|
XX/Y/Z axis travel |
mm |
1100/650/650 |
|
Distance between spindle end face and worktable end face |
mm |
100-750 |
|
Specifications of X, Y and Z axle guideways |
mm |
45 (X-axis six sliders) /45/45 (Z-axis six sliders) |
|
Spindle Speed (Belt type/Direct Connection) |
rpm |
10000/12000 |
|
Tool magazine capacity |
T |
24 |
|
X/Y/Z axis fast displacement |
m/min |
36*36*36 |
|
Cutting feed speed |
m/min |
1-8000 |
|
Repeated positioning accuracy |
mm |
土0.003 |
|
Machine weight |
Kg |
7000 |
3-Axis Machining CenterFeatures
●High-Speed Spindle: Equipped with a 15 kW spindle motor, the VMC-1165 achieves a maximum spindle speed of 12,000 RPM, facilitating efficient material removal and fine surface finishes.
●Rotary Tool Center Point (RTCP) Technology: This technology enhances machining accuracy, particularly for complex geometries, by allowing precise tool orientation adjustments relative to the workpiece.
●Spacious Worktable: The machine features a worktable size of 1,200 mm x 660 mm with a maximum load capacity of 1,000 kg, accommodating a variety of workpieces.
●Rapid Feed Rates: The VMC-1165 offers rapid feed rates of 30 m/min in the X and Y axes and 36 m/min in the Z-axis, enhancing productivity by reducing non-cutting times.
●Tool Magazine Capacity: Equipped with a 24-tool automatic tool changer, the VMC-1165 minimizes downtime between tool changes, supporting efficient multi-tool operations.
Send product request
Other supplier products
 |
VMC-856 HIGH SPEED 3 AXIS GANTRY VERTICAL MACHINING CENTER | VMC-856 HIGH SPEED 3 AXIS GANTRY VERTICAL MACHINING CENTER Product Description The VMC-856 High Speed 3 Axis Gantry Vertical Machining Centersare... |
 |
H-850L COMPUTER NUMERICAL CONTROL (CNC) | H-850L COMPUTER NUMERICAL CONTROL (CNC) Product Description ● High rigidity precision linear guides are selected, featuring high speed, low noise... |
 |

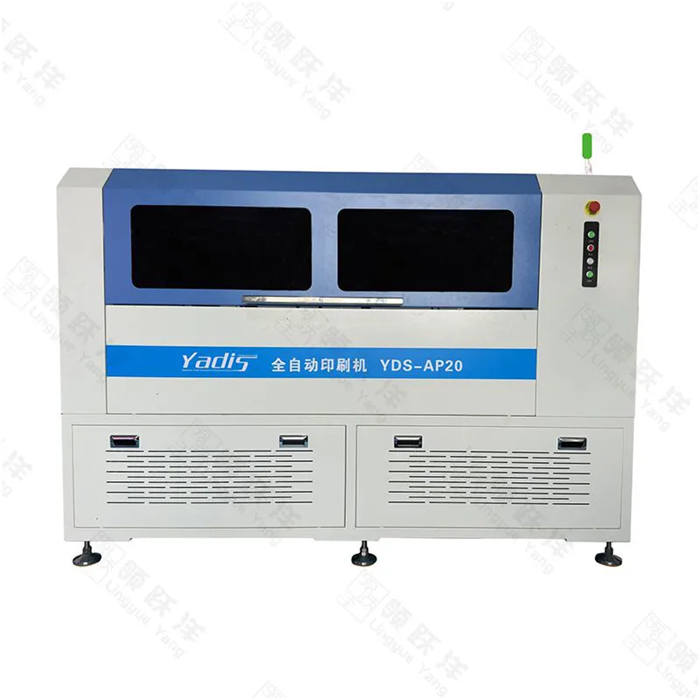

AP20 PRINTING PRESS | AP20 PRINTING PRESS Features ofSMT Printer Machine 1, Mainly for LED coil tin printing, support 100-270(mm) width (no wire) Light with FPCB. 2, ... |
 |
