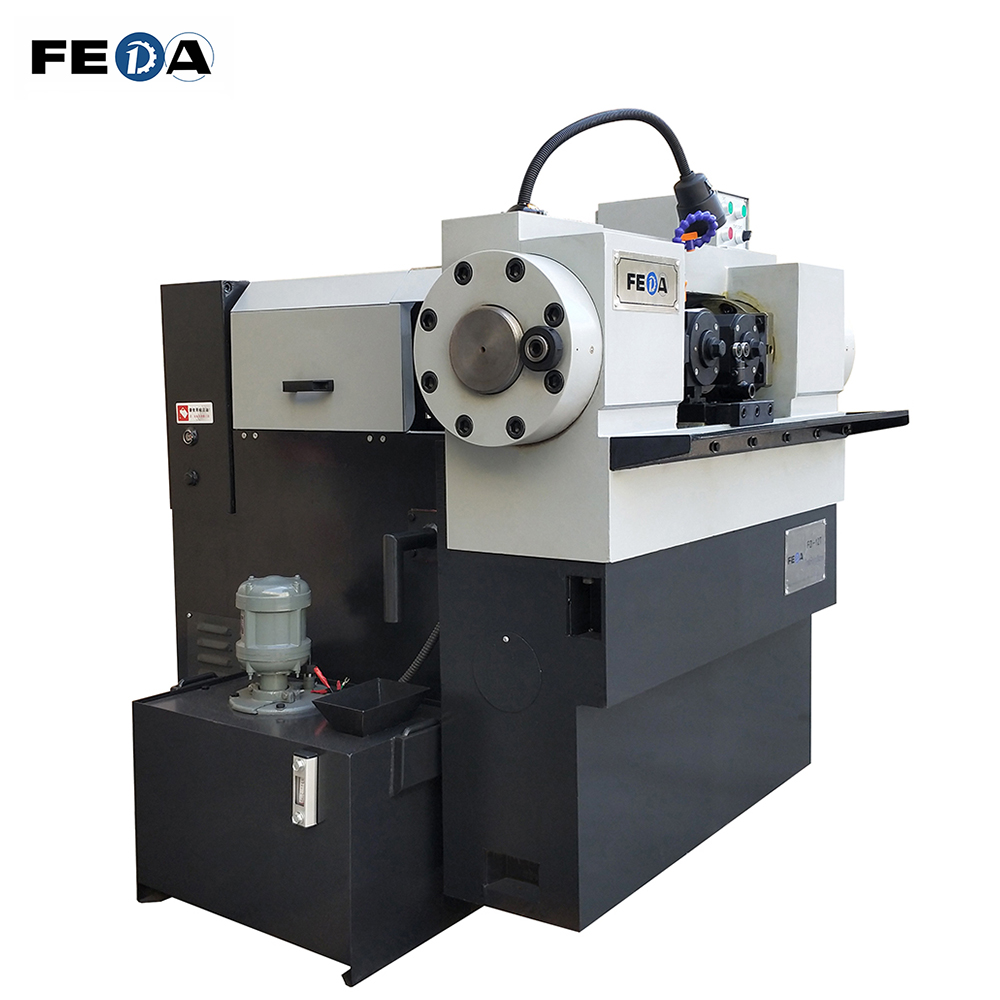

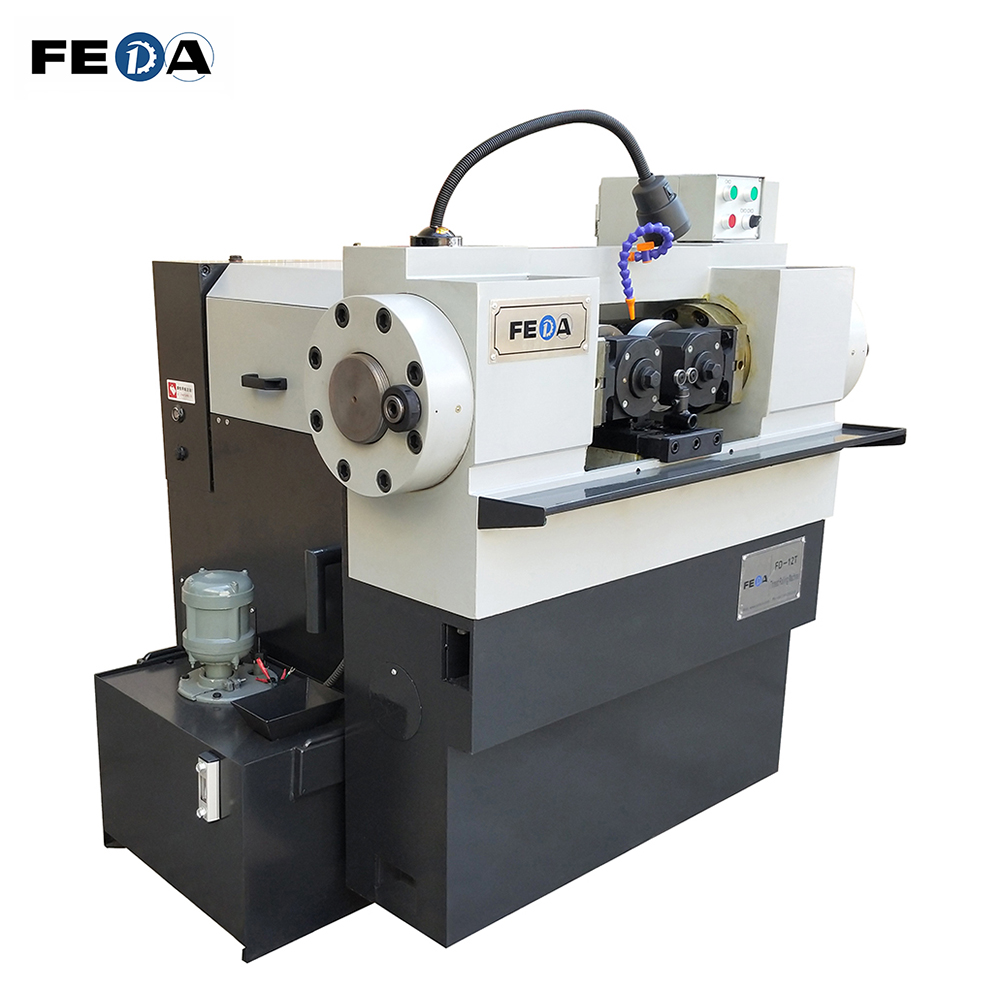

FD-12T thread rolling machinery thread rolling machine auto feed rebar thread rolling machine
1. Automatic feeding with adjustable brackets
2. Speed is adjustable for different products
3. 54mm hole diameter for SKD11/DC53 thread rolling dies
4. Max. Rolling pressure is about 120KN
5. It is easy to operate and maintain the machine
6. CE, ISO9001-2008
Specification
Working diameter 2-20/mm
Thread pitch 0.4-2.5P
Thread length In feed & Thru feed
Spindle speed 42/53/68/87rpm
Outside diameter of rolling die 120mm-175mm
Inside diameter of rolling die(keyway) 54mm
Thickness of rolling die 80mm
Min.center distance between die spindles 120mm
Max.center distance between die spindles 196mm
Machine motor / Hydraulic motor 4.2KW
Max.rolling pressure 12T
Supply voltage 380V 3P 50Hz
Weight(reference) 1500(KG)
Package Dimension(L*W*H) 1325*1300*1400 mm
Dimension(L*W*H) 1176*1160*1200 mm
