GT-FM24-PLC Filling Machine(3+9+9+3) Triple Guide Tube
* Description
GT-FM-PLC (triple guide tubes in 6-48 station)MGO powder filling machine, is improved on the basis of GT-FM-PLC (double guide tubes in 6-48 station).
The main difference of double guide tubes and triple guide tubes filling machine is as below:
Three guide tubes filling machine can install different diameters on one machine.
If there are different diameters install on one machine,when fill the heater,user can choose the diameters need to fill, can fill one diamter,2 diameters or more diameters together. Other diameter if do not need to fill, will not add MGO powder. It is a recommend filling machine for different diameter need to fill. Or need to fill different diameters often, but not in bulk quantity.
* Main details
1. Filling station:6-48 stations according to order and diameter.
2. Filling diamter:with 1-6 diameters on the machine according to order.
3. Filling length:300-max length according to order.
4. Filling speed: 150-500mm/min adjustable.
5. Power supply: AC380V, 50Hz.
6. Size of machine:1700*1000mm*(max length*2+2000)mm(L*W*H)
Send product request
Other supplier products
 |
China 90 Degree Auto Bending Machine GT-WGQD90 | * Decription GT-WGQD90 auto bending machine auto bend 90 degree for heating elements. Suitable for tubular heater bend both leg in 90 degree. * M... |
 |

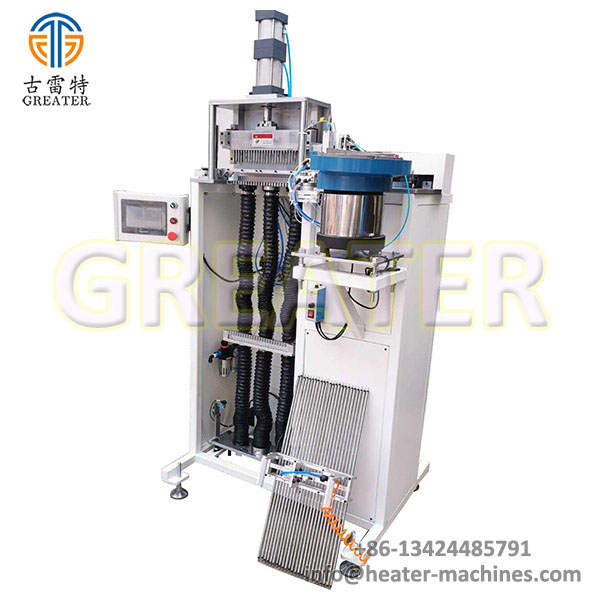

China GT-APA201 Automatic Upper Plug Assembling Machine | * Description GT-APA201 Automatic Upper Plug Assembling Machine use to assemble plugon upper end of heater tubes after filled MGO powder. The mach... |
 |
GT-WS201 Auto Wire Shrinking Machine | * Description GT-WS201 Auto Wire Shrinking Machine use to make the resistance wire in smaller diameter. Mainly use for hot runner heaters resistan... |
 |

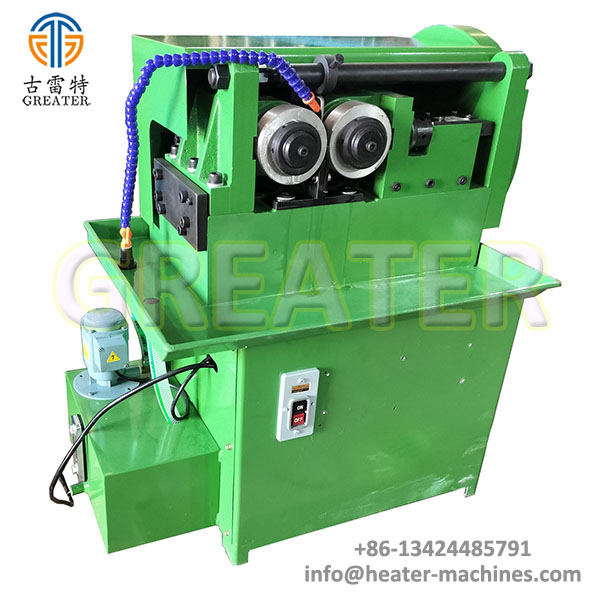

China Rolling Thread Machine GT-YBGY201 | * Description GT-YBGY201 Rolling Thread Machine is a machine to roll thread on the pin after reduced. * Main details 2. Manual operation, easy t... |
|
|
