Fabric Negative-ion Concentration Tester
Standard
GB/T 30128-2013: Textiles – Test and Evaluation of Negative Ion Generation
Application
Functional Textile R&D: Assesses air-purifying, health-enhancing, and antimicrobial fabrics.
Quality Control: Verifies compliance with negative-ion standards for medical textiles, bedding, and apparel.
Certification Laboratories: Provides data for GB/T 30128-2013 certification.
Product Advantages
Precision Ion Detection: Capacitive suction method captures ions with mobility >0.15 cm²/(V·s).
Multi-Range Measurement: Three ranges (0–20.000; 0–200.000; 0–2.000.000 units/cm³) adapt to diverse materials.
Automated Friction System: PLC-controlled discs (93 ±1 r/min) simulate real-world wear.
Standard Compliance: Meets GB/T 30128-2013 for reliable certification.
Sample Versatility: Tests coated/uncoated fabrics, knits, and nonwovens with adjustable pressure (7.5 ±0.2 N).
Real-Time Data: Generates ion concentration curves over time for dynamic analysis.
Product Features
Dual Friction Disc Design:
Upper Static Disc: Diameter 100 ±0.5 mm (fixed).
Lower Dynamic Disc: Diameter 200 ±0.5 mm (rotating at 93 r/min).
Capacitive Ion Sensor: High-sensitivity detection of activated negative ions.
Adjustable Parameters
Friction speed (93 ±1 r/min).
Applied pressure (7.5 ±0.2 N).
Sample Fixation: Clamping devices secure samples to discs, ensuring full coverage. Gaskets prevent slippage (coated fabrics rub coated surfaces).
Enclosed Test Chamber: (300 × 560 × 210 mm) minimizes external interference.
Automated Control: PLC-driven system with touchscreen operation.
Technical Parameters
| Parameter | Specification |
|---|---|
| Control Mode | Automatic (PLC) |
| Ion Collection Method | Capacitive Suction (Mobility >0.15 cm²/(V·s)) |
| Measurement Range | Range 1: 0–20.000 units/cm³ Range 2: 0–200.000 units/cm³ Range 3: 0–2.000.000 units/cm³ |
| Resolution | 10 units/cm³ |
| Friction Disc Speed | 93 ±1 r/min (Adjustable) |
| Applied Pressure | 7.5 ±0.2 N |
| Test Chamber Size | 300 ±2 mm × 560 ±2 mm × 210 ±2 mm |
| Power Supply | AC 220V ±10%, 50Hz |
| Dimensions (L×W×H) | 600 mm × 620 mm × 520 mm |
| Net Weight | 55 kg |
Send product request
Other supplier products
 |

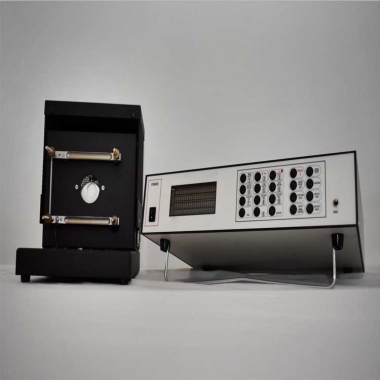

Electrostatic Decay Tester | Production: Electrostatic Decay Testeris professional designed to determine the attenuation of static electricity, corona discharge time, static v... |
 |
