Sweating Thermal Manikin丨Sweating Thermal Manikin tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Standards compliant
ISO 15831：2004（E）
Clothing-Physiological effects -Measurement of ASTM F 1291-04Standard Test Method for Measuring the Thermal Insulation of Clothing Using a Heated Manikin; thermal insulation by means of a thermal manikin;
ASTM F 1720
Standard Test Method for Measuring Thermal Insulatio ASTM F 2370Standard Test Method for Measuring the Evaporative Resistance of Clothing Using a Sweating Manikin.
Product Advantages
Human-Like Simulation: Mimics human thermoregulation via 32-zone heated segments, microporous "sweating" skin, and dynamic motion (walking/running) for realistic performance analysis.
Precision Engineering: ±0.1°C temperature control and segmented sweating rates (0–100% adjustable) deliver repeatable, human-independent test results.
Multi-Domain Applications: Validated for occupational safety gear, sportswear, aerospace suits, and extreme-environment protective clothing development.
Data-Driven Insights: ThermoTech software provides real-time thermal resistance (clo), evaporative resistance, and comfort metrics, eliminating subjective human trials.
Global Adoption: Trusted in 20+ countries for R&D in military, firefighting, and outdoor industries, meeting stringent safety certifications.
Product Features
Advanced Thermoregulation:
32 independently heated zones with 2°C max inter-segment differential for anatomical accuracy.
Isothermal or variable temperature modes (indoor to 55°C) simulate diverse climates.
Dynamic Sweating System:
Preheated water circulation ensures stable "sweat" evaporation, minimizing temperature-related errors.
Segmental control (0–100% rate adjustment) replicates localized perspiration patterns.
Motion Capability:
Adjustable gait (0–100 m/min walking; ≤250 m/min running) for dynamic thermal load testing.
Ergonomic neck cable enables unobstructed donning of helmets/masks.
Safety & Compliance:
Anti-leakage protection, overheat shutdown, and overrun alerts for operator safety.
Compliant with CE/UL electrical standards for global deployment.
Software Integration:
ThermoTech Control Analysis Suite: Real-time data visualization, EQT comfort modeling, and exportable reports (CSV/PDF).
Configuration
| Item No | Details |
| STD-5300201 | Thomas sweating thermal |
| STD-5300202 | Walking module |
| STD-5300203 | Thermal comfort analysis module |
| STD-5300204 | Walk-in constant temperature and humidity box |
| STD-5300205 | Pure water machine |
| STD-5300206 | Lenovo brand desktop computer, 1 set |
Technical Parameters
| Items | Parameters |
| Material | Antirust copper alloy material |
| Heating section | 32 section (other quantities need to be customized) |
| Temperature detection section | 32 section (other quantities need to be customized) |
| Temperature range | Indoor temperature-55℃ |
| Temperature control accuracy | ±0.1℃ |
| Temperature stability | ±0.1℃ |
| Heating output power | 800-1000W |
| Power accuracy | ≤1% |
| Height of manikin | 175cm(other height need to be customized) |
| Weight of manikin | ≤65kg |
| Heating component | Hot plate heat |
| Environment temperature monitor | 4 section |
| Environment humidity monitor | 2 section |
| Work modes | Constant temperature test, variable temperature test, constant power test, variable power test |
| Sweating system | Controlled, sweat preheating system |
| Walking speed | 0-100m/min |
| Running speed | ≤250m/min |
| Step | 0-100cm/step |
| Safety protection function | Anti-leakage safety protection device, overrun alarm, overheating automatic power off function |
| Test index | Thermal resistance results, Clo value and so on |
| Test software | ThermaoTech Control analysis software |
| Comfort evaluation module | Thermal comfort evaluation model and EQT evaluation model |
| Power | 220V, 50Hz |
| Dimension | 1200 mm(W)×1200mm(L)×2200mm (H) |
| Weight | 475kg |
Send product request
Other supplier products
 |
Guide pin anchoring force tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application This instrument is suitable for a variety of medical and surgical applications... |
 |
Custom Leakage negative pressure tester for infusion device | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The tester is suitable for leakage testing of medical infusion devices in the ... |
 |
UV Aging Test Chamber 450 X 450 X 450mm , Programmable Ozone Test Chamber | Whats/App: +86 156 1874 6768 Web: standard-groups.com Use of environmental test chamber Ozone Test chamberis used for testing rubber and polym... |
 |

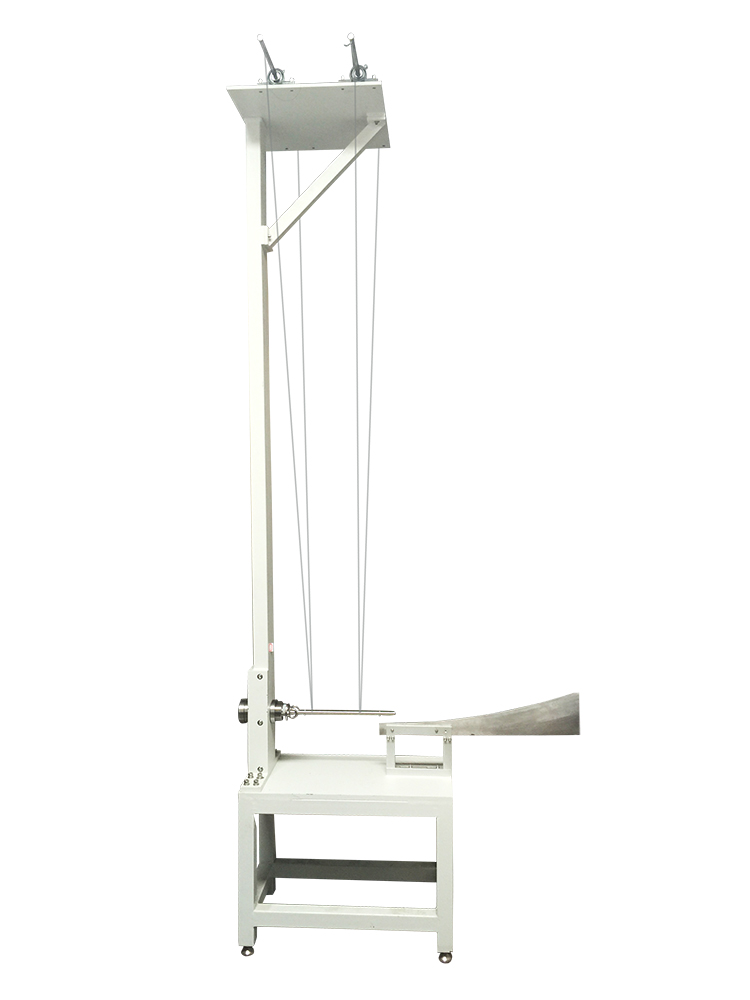

Rubber Rebound Elasticity Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Rubber elasticity tester, Rubber strikes the resilience elasticity tester for testing vulca... |
 |
