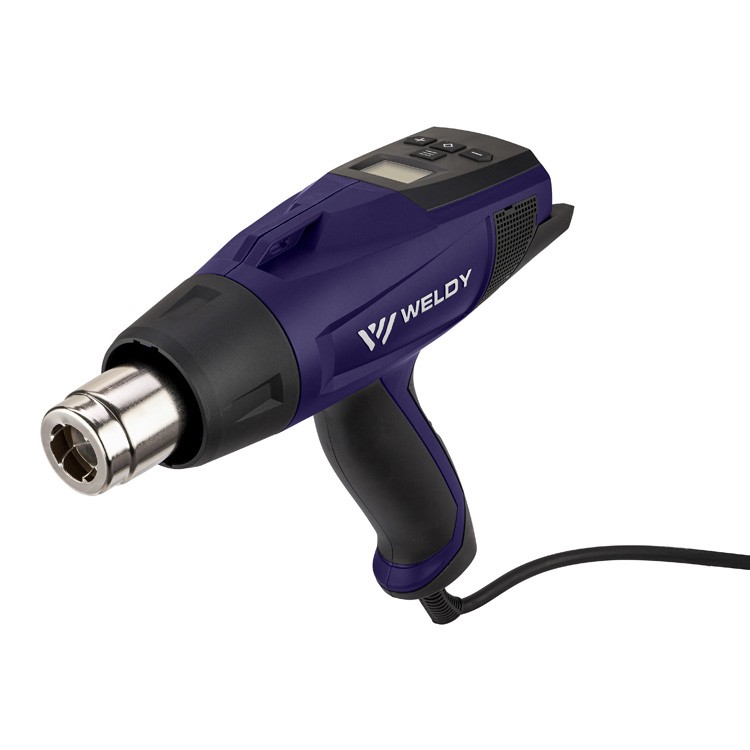

Weldy HG 530-A 100V/1300W JP Plug Universal Kit Hot Air Gun
Category: Weldy Hot Air Gun
Powerful in work mode, power-saving in Eco-Mode
Infinitely variable digital temperature control
Ergonomically designed, balanced, soft handle
Various functions for industrial applications.
TECHNICAL DATA
VOLTAGE
230 V; 100 V; 120 V
FREQUENCY
50/60 Hz
POWER
1300 - 2300 W
TEMPERATURE
80 - 650 °C 176.0–1202.0 °F
TEMPERATURE SETTING STEPLESS
Yes
AIRFLOW (20°C)
200 - 550 l/min 7.06–19.42 cfm
STEPLESS AIR VOLUME ADJUSTMENT
Yes
ECO-MODE
Yes
Display
Yes
OUTDOOR USE
Yes
NOZZLE CONNECTION Ø
35.5 mm / 1.4 in
LENGTH
250.0 mm9.84 in
WIDTH
80.0 mm 3.14 in
HEIGHT
230.0 mm
HANDLE DIAMETER
45 mm 1.77 in
WIGHT
0.75 kg
POWER CABLE LENGTH
2.0 m 6.56 ft
PLUG
EU, 2 poles, 16A; JP, 2 poles, 15A; US, 2 poles, 15A, polarized;
CN, 2 poles, 10A; UK, 3 poles, 13A; CH T11, 2 poles, 10A;
CN, 2 poles, 10A; UK, 3 poles, 13A; CH T11, 2 poles, 10A;
AU, 3 poles, 10A
NOISE EMISSION LEVEL
67 dB (A)
APPROVALS
CE
PROTECTION CLASS
II
