256+256M RAM and ROM ARM controller built-in Mini PCIe support Bluetooth automation control

•

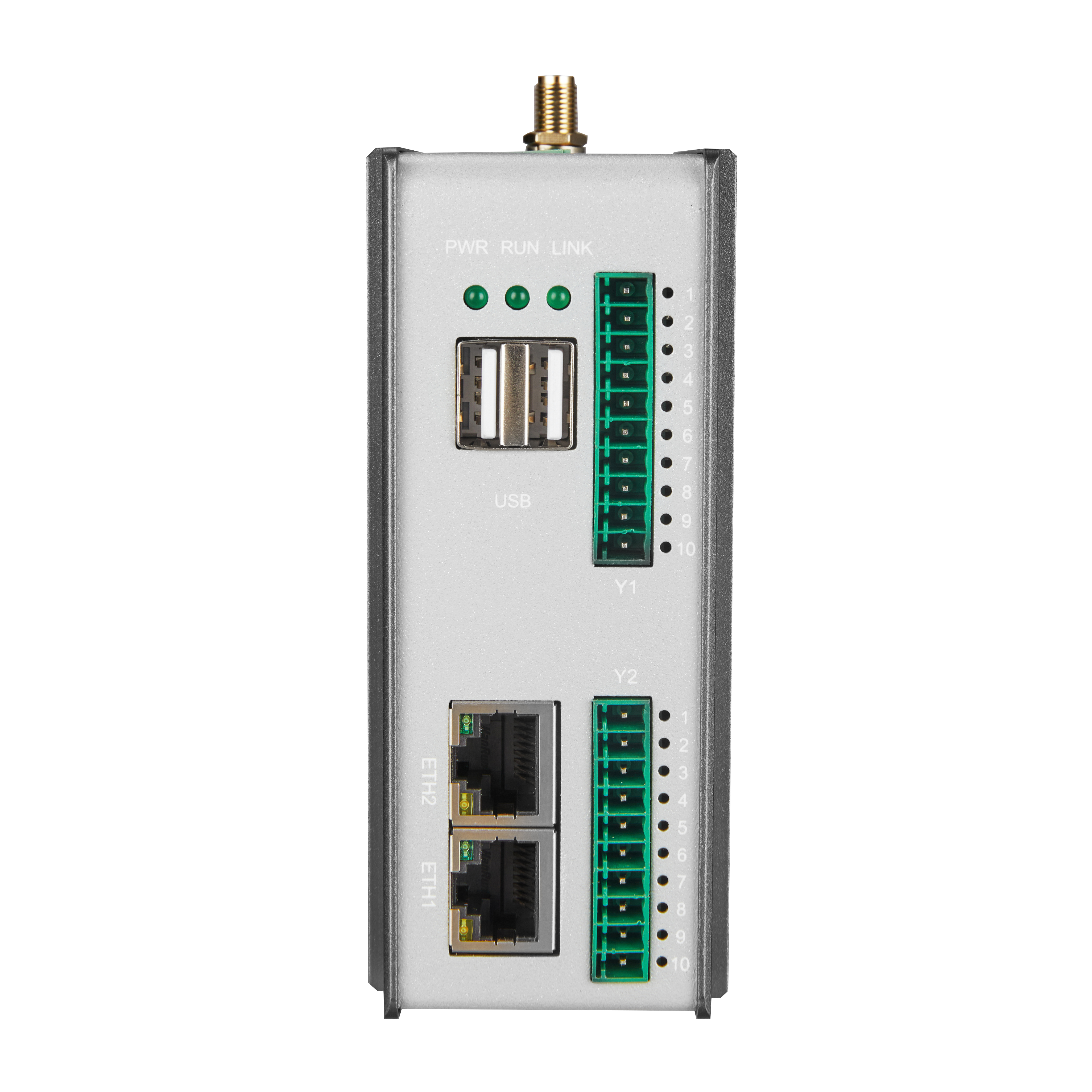

The ARMxy BL330 series is a versatile industrial ARM controller designed for flexibleI/O configuration. It is based on the Allwinner Technology T113-i dual-core ARM Cortex-A7 + XuanTie C906 RISC-V + HiFi4 DSP heterogeneous multi-core processor. Thisindustrial-grade computer features an ARM Cortex-A7 processor with clock speed of up to1.2GHz. It is equipped with either 256Mbyte NAND Flash or 4/8GByte eMMC storage options and offers various combinations of 128M/256M/512M/1GByteDDR3 RAM and ROM.
The BL330 series ARM embedded computer offers a rich array of interfaces including 1-310/100M Ethernet ports,2xUSB 2.0 ports,1xoptional HDMI 2.0a port,1xoptional X series IO board,2xoptional Y series I/O boards.These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control. The BL330 also supports hardware decoding of 1080P@60fps videos.
Additionally, it features a built-in Mini PCIe interface to support communication modules such as Bluetooth, WiFi, and 4G modules.
The BL330 series ARM embedded computer supports a range of operating systems anddevelopment tools, includingLinux-5.4.61 and Linux-RT-5.4.61 kernels,Ubuntu 20.04 operating system,Docker containers,Node-Red,Qt-5.12.5 and Qt-5.11.3 for graphical interface development.In addition,BL330 is compatible with BLIoTLink industrial protocol conversion software for data collection and transformation, and can seamless integration withvarious mainstream IoT cloud platforms and industrial SCADA software.Users can leverage the BLRAT for remote access and maintenance of the BL330 embedded computer.Additionally, with support for Node-Red, users can rapidly develop IoT applications on the BL330.
The BL330 series ARM embedded computer has undergone rigorous electrical performance design and high-low temperature testing to ensure stability and reliability. It is designed for DIN35 rail mounting, making it suitable for various industrial application environments.
This embedded computer is widely used in industrial IoT, photovoltaic power generation and energy storage systems, automation control, and transportation and rail applications.

ProductSelection Guide

The ARMxy series ARM embedded controllers adopt a flexible design concept, allowing users to customizeROM and RAM combinations by choosing different System-on-Module(SOM) boards as needed. Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.
Product naming convention
Host Model Number - SOM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number
For example BL330-SOM330-X10,means 1 Ethernet port, 256MB NAND Flash, 256MB DDR3 RAM, and 2 RS485 ports.
If you need to add WiFi, then you would append "W" to the host model number.For example:BL330W-SOM330-X10
If you need to add a 4G module, you would append "L" to the host model number.For example:BL330L-SOM330-X10

ARMxy BL330SOMModel List
