HBS-MP-30
FIBER LASER MARKING MACHINE HBS-MP-30Technical ParameterModel HBS-MP-30Laser Power 30WLaser Wavelength 1064nm Repetition Frequency 10-500KhzBeam Quality M2<1.2Marking Area 110mm x 110mm / 220mm x 220mmMarking Speed ≤7000mm/s Min. Character Size 0.3mm Repetition Precision ±0.002 mmPower Supply Single-Phase220V/50Hz-60Hz Single-Phase90-260V/50Hz-60Hz Power Consumption ≤500WOperating System Win7, Win XPCooling method Air cooledProduct Introduction30W Fiber Laser Marking Machine adopts the latest advanced MOPA platform technology. It is more diverse and flexible than the conventional Q-switch platform and wider pulse width range. The adjustment of different pulse width can indirectly affects the different peak power depending on the materials for marking and marking results. Marking with effective frequency of up to 500KHz is the most advanced technology in fiber laser marking today. Product Features● Enhance the marking speed at the utmost, the average marking speed is twice as fast as conventional marking machine and even five times faster than the others when marking certain materials.● Beam spot quality M2 1.2, finer marking and better result● Excellent laser spot quality and high peak power makes it possible to create the best marking result.● Settable bandwidth option, no trailing, no light-leaking, ensuring high frequency and peak power, wide application.● Built-in double light isolation design, minimal thermal damage and non-splashingProduct ApplicationWidely used in the products that requiring high depth, high smoothness, high fineness and black marking on aluminum, such as clocks & watches, mould, integrated circuit chip, computer accessories, industrial bearing, electronic & communication products, aerospace products, automotive spare parts, household appliances, hardware, tools, silverware, gold, wire & cable, food packaging, jewelry, etc.
Other supplier products
|
|
Pneumatic Dot Pin Marking Machine JZ115P |
PNEUMATIC MARKING MACHINEJZ115P JZS115PPlane Pneumatic Marking Machine Circular Pneumatic Marking Machine T... |
|
|
Portable Laser Marking Machine HBS-GQ-20P |
HBS-GQ-20CPORTABLE LASER MARKING MACHINE 20WTechnical Parameter：Model : HBS-GQ-20C Laser Power: 20W, 30W, 50WLaser Wavelength: 1060nmBeam Quali... |
|
|
Electric Dot Pin Marking Machine JZ115D |
ELECTRIC MARKING MACHINEJZ115D JZS115DPlane Electric Marking Machine Circular Electric Marking Machine Technical ParameterModel JZ115... |
|
|

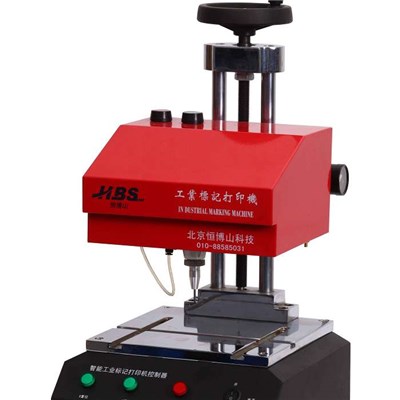

Sign Pneumatic Marking Machine GZB810P |
NAMEPLATE/SIGN PNEUMATIC MARKING MACHINE GZB810P ( GZB810PA)Technical ParameterModel GZB810PAMarking Area 110mm x 80mmRepetition Accuracy 0.04mmMar... |
|
|

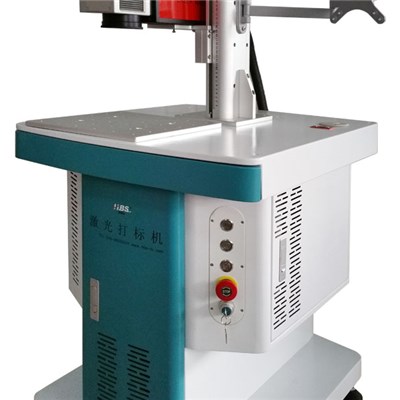

HBS-GQ-30 |
