Humidity heat chamber for pv modules
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
The Damp Heat Test Chamber is suitable for:
Damp-heat performance testing of photovoltaic modules
R&D and quality control of PV modules
Type certification and qualification tests
Indoor laboratory simulation of outdoor high temperature and humidity
Accelerated aging and lifespan evaluation of PV modules
Environmental adaptability studies and standard verification
Scientific research and laboratory durability studies
Standards
The chamber complies with the following international standards:
(1) GB/T IEC 61215 – Crystalline Silicon Terrestrial Photovoltaic Modules – Design Qualification and Type Approval
(2) UL 1703 – Safety Standard for Photovoltaic Modules
Parameters
| Item | Technical Specification |
|---|---|
| Test Temperature | 85℃ ±2℃ |
| Relative Humidity | 85% ±5% |
| Temperature Fluctuation | ≤±1℃ |
| Temperature Deviation | ≤±1℃ |
| Temperature Uniformity | ≤2℃ |
| Humidity Range | 30～95%RH |
| Relative Humidity Deviation | ≤±2.5%RH (for RH>75%) |
| Common Test Points | 85℃/85%RH ≥1000h; 90℃/90%RH ≥1000h |
| Control Method | Touchscreen + PID automatic control |
| Sample Capacity | Up to 12 PV modules |
| Inner Chamber Size | 1.5 × 2.5 × 1.5 m (L×W×H) |
| Outer Chamber Size | 2.5 × 3.0 × 2.5 m (L×W×H) |
| Inner Material | SUS #304 stainless steel panel |
| Outer Material | Powder-coated steel |
| Insulation Material | Rigid foam + glass wool |
| Test Door | Double swing, center-opening |
| Program Memory | Power failure automatic restart and continuation |
| Communication Interface | RS-232 or RS-485 |
| Circulation System | Fan-driven air circulation |
| Refrigerant | Environmentally friendly refrigerant; water-cooled condenser |
| Control Display | Touchscreen, English/Chinese switchable |
| Data Acquisition | Real-time graphical display, exportable |
| Power Supply | 380V, 60Hz |
Accessories
(1) Damp Heat Test Chamber Main Unit – inner/outer chamber, fan circulation, refrigerant, control system
(2) Touchscreen Control Panel – PID program setup and real-time monitoring
(3) Sample Holder – accommodates up to 12 PV modules
(4) Consumable Refrigerant – environmentally friendly
(5) Insulation Materials – PU foam and glass wool
(6) Optional Data Acquisition and Analysis Software – supports data export, historical records, and graphical display
Send product request
Other supplier products
 |
Cylindrical Battery In-Situ Volume Swelling Testing System | The Cylindrical Battery In-Situ Volume Swelling Testing System is designed for real-time measurement and analysis of volume and dimensional changes... |
 |
Custom low-load wear testing instrument | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The Low-Load Wear Testing Machine is widely used in applications where ultra-l... |
 |
Cleanliness automatic extractor | Component Cleanliness Cabinet equipped with cleaning modes such as pressure jet cleaning, perfusion cleaning, spray cleaning, etc., the cleaning ag... |
 |
Syringe barrel pressure integrity tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application This tester is suitable for evaluating a wide range of medical devices with Lu... |
 |
Automatic Scratch Tester | The Automatic Scratch Tester is designed for evaluating the hardness and friction performance of coatings on a wide range of materials and products... |
Same products
 |
Automated Strength Tester for Lead - end of Photovoltaic Modules | Seller: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application This tester is widely applie... |
 |

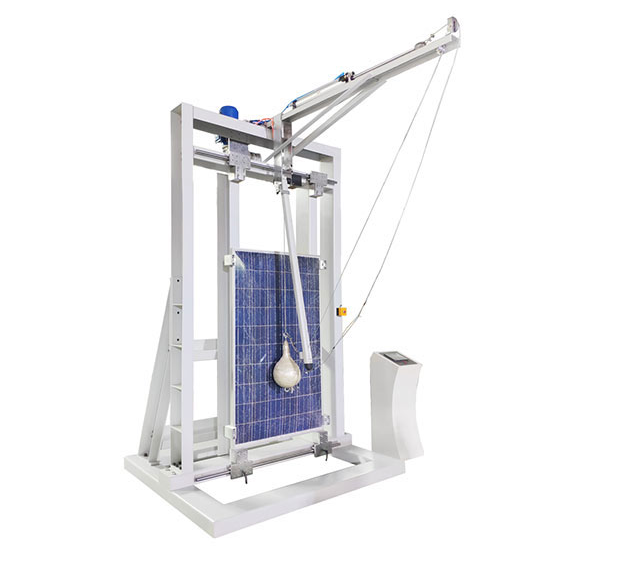

Solar Panel Fracture Testing Machine | Seller: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The machine is widely applie... |
 |
Conduit Bend Testing Equipment | Seller: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The machine is widely used i... |
 |

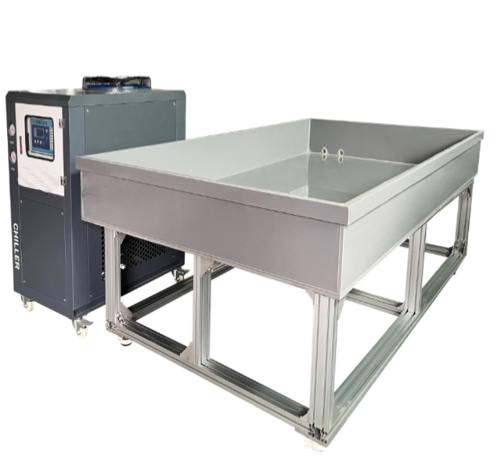

Wet leakage current test system of photovoltaic module | Seller: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The system is applicable to ... |
 |

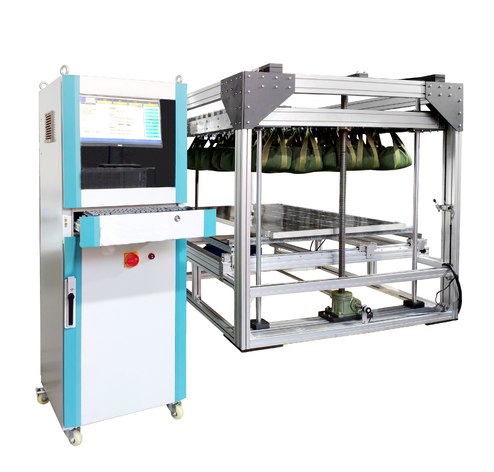

Automatic sandbag load testing equipment | Seller: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The machine is widely used f... |
