Ejection Kinetic Energy tester
Product Introduction:
Velocity measuring ejection kinetic energy tester, suitable for ejection projectiles, energy storage ejection toys, non-energy storage ejection toys kinetic energy test, such as toy guns, crossbows, etc.
All kinds of Rojectile Toyscan be tested on the Kinetic Energy tester
Compliant standards:
ISO 8124-1 section 5.15
GB6675-2 section 5.15
EN-71-1 section 8.24
ASTM F963section 8.14
Standard configuration:
1 kinetic energy meter, 1 power cord, 1 operating manual.
Technical parameters:
1. Power supply 200/220 AC / 50Hz
2. Size: 36cm x 31cm x 18cm.
3. Weight: 6.5KG
4. Time display: 0.00000
5. Joule: 0.0000E +00J
6. Projectile diameter: up to 0.5mm -- less than 40mm. （internal sensor）
7. Inner channel distance: 152.4mm
Send product request
Other supplier products
 |
KES - QM Contact Coolness Tester | It is used to measure and evaluate the contact coolness index "q max" (peak heat flux). When the skin comes into contact with fabrics, different am... |
 |
STD Series self rotating rotary spray balls | STD seriescip rotary spray balls Model Number: STD38 Working Principle: ●Using the force and reaction force of cleaning liquid to generate self-... |
 |
Car seat fatigue tester-QINSUN | Applicable standards: GB/T 18941-2003"Test method of foam polymer materials for car seats" : This standard specifies the test method of foam polym... |
 |
High Temperature Oxygen Index Tester | Application Evaluating material combustion performance in R&D. Quality control for product acceptance. High-temperature safety assessment in... |
 |

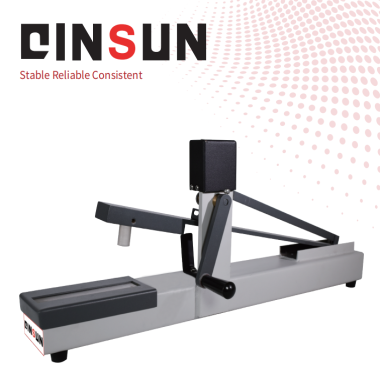

JIS Colour Fastness Rubbing Tester (Gakushin)-QINSUN | Product Overview TheJapanese Standard Color Fastness to Rub Tester (Gakushin)is a specialized instrument designed to evaluate the colorfastness of... |
