Fully Automatic AC/DC High - Voltage Tester for Wires and Cables-QINSUN

The fully automatic AC/DC high - voltage tester for wires and cables is specially used to test the insulation between wire cores or between wire cores and outer sheaths of finished wire and cable products, as well as optical fiber and optical cable products.During operation, voltage is applied to the test piece and gradually increased to the required voltage and current values to check whether the test piece can withstand this voltage value. The high - voltage part of this machine adopts oil - immersed high - voltage transformers and dry - type voltage regulators.

Standards:

IEC60060. UL1581. UL62. WDE, CCC, JIS, CSA, EEMA,GB/T3048.8

Functional Features:

1) Full digital technology is adopted. The test voltage, test time, breakdown current and voltage - rising speed can be set through the touch screen. 2) The voltage - rising speed is controlled by a servo motor, enabling precise control of the test speed. 3) Safety lock function: A safety lock is set for the test operation. The high - voltage cannot be activated without unlocking. 4) Safety door function: The high - voltage cannot be activated if the safety door is not closed, ensuring the safety of testers.

Main Parameters:

1. Input voltage: 220V/50HZ

2. Power: 5KVA 3. Output voltage: 0.00~50.000KV

3. Breakdown current: Can be arbitrarily set within the range of 1.0~100.0mA

4. Voltage - rising speed: Can be arbitrarily set within the range of 100V~5000V/S

5. Accuracy: Class 1.0

6. Test time: Can be arbitrarily set within the range of 0.00~999.9H/M

7. Dimensions of the control console: 800 X 800 X 1300mm, dimensions of the high - voltage transformer: 500 X 500 X 1000mm

8. Weight: 150KG

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.


Send product request

To: Standard International Group (HK) Limited
Your E-mail:
Message text:


Send to other suppliers

Other supplier products

Nissan 4-Station Abrasion Tester for Multi-Material Durability Tester-QINSUN
Nissan 4-Station Abrasion Tester for Multi-Material Durability Tester-QINSUN Standard ASTM D3884(Standard Guide for Abrasion Resistance of Textile Fabrics) ISO 5470-1(Rubber- or Plastics-Coated Fabrics - Abrasion Resistanc...
Initial drying resistance test machine
Initial drying resistance test machine Standards GB9779-2015 GB14907-2002 GB/T9271-2008 JG/T24-2000 Technical parameters 1. axial fan, can be stepless speed regulation 2.Test th...
Friction Tester for Non - woven Fabrics
Friction Tester for Non - woven Fabrics Instrument Description This fabric friction tester can measure the static and kinetic friction coefficients of non - woven fabrics. It can be used...
Footwear Dynamic Waterproof Tester
Footwear Dynamic Waterproof Tester Product Introduction: It is used to test the dynamic waterproof performance of various finished shoes, and the number of times when no water enter...
Universal Wear Tester(UWT)/Stoll Quartermaster
Universal Wear Tester(UWT)/Stoll Quartermaster Application: Universal Wear Tester (UWT) is used to determines the wear and abrasion resistance of fabric used in clothing, footwear and industr...
All supplier products

Same products

Photovoltaic module backplane peeling strength testing machine
Photovoltaic module backplane peeling strength testing machine Seller: Standard Groups The Photovoltaic Module Backplane Peeling Strength Testing Machine is a specialized device design...

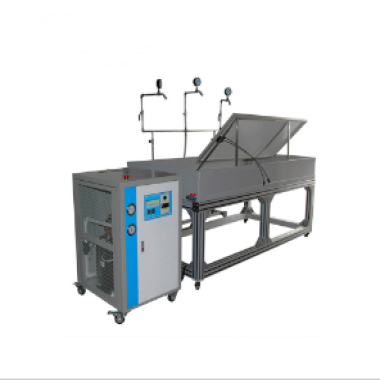

Wet leakage current test system of photovoltaic module
Wet leakage current test system of photovoltaic module Seller: Standard Groups The Wet Leakage Current Test System is designed for high-precision evaluation of insulation resis...

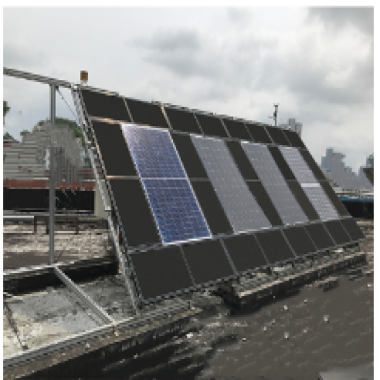

Photovoltaic module outdoor exposure test system
