Coated fabric flexing resistance testing machine - Test Equipment

Get a quote:

Whats/App: +86 185 0176 3615

Web: qinsun-lab.com

The instrument tests coated fabric strips by winding them into cylindrical samples between two rotating cylinders. One cylinder reciprocates along its axis to alternately compress and relax the fabric tube, creating folds until predetermined cycles are completed or sample failure occurs.

Compliance Standards

ISO 7854,GB/T 12586-B,BS 3424:9

Product Features

  • Precise motor control system for disc rotation and movement
  • Reliable cam-driven mechanism ensures stability
  • Imported precision guide rails for durability

Technical Specifications

Clamps 6 sets
Rotation Speed 8.3Hz±0.4Hz (498±24 rpm)
Cylinders Outer diameter 25.4±0.1mm
Test Path
Stroke 11.7±0.35mm
Clamp Width 10±1mm
Clamp Distance 36±1mm
Sample Size 50×105mm
Dimensions 40×55×35cm
Weight ≈65kg
Power 220V 50Hz

Configuration List

  • 1 host unit
  • 1 sampling template
  • 1 product qualification certificate
  • 1 user manual
  • 1 delivery note
  • 1 acceptance certificate

Send product request

To: Standard Groups
Your E-mail:
Message text:


Send to other suppliers

Other supplier products

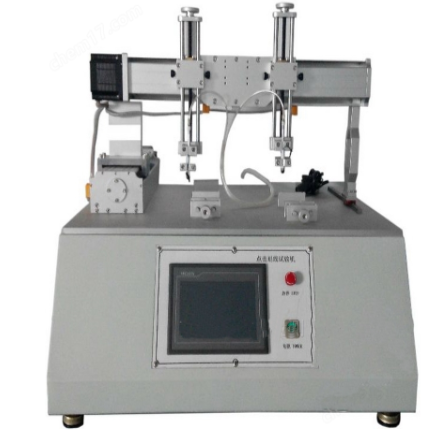

Screen Click Scratch Life Tester
Screen Click Scratch Life Tester Screen Click Scratch Life Tester is used to evaluate the durability of touchscreens under repeated clicking and scratching actions during long-term...
Leather Water Vapor Permeability Testing Machine
Leather Water Vapor Permeability Testing Machine Get a quote: Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The vaporpermeability of leather is evaluated by means of measuring the weight of ...

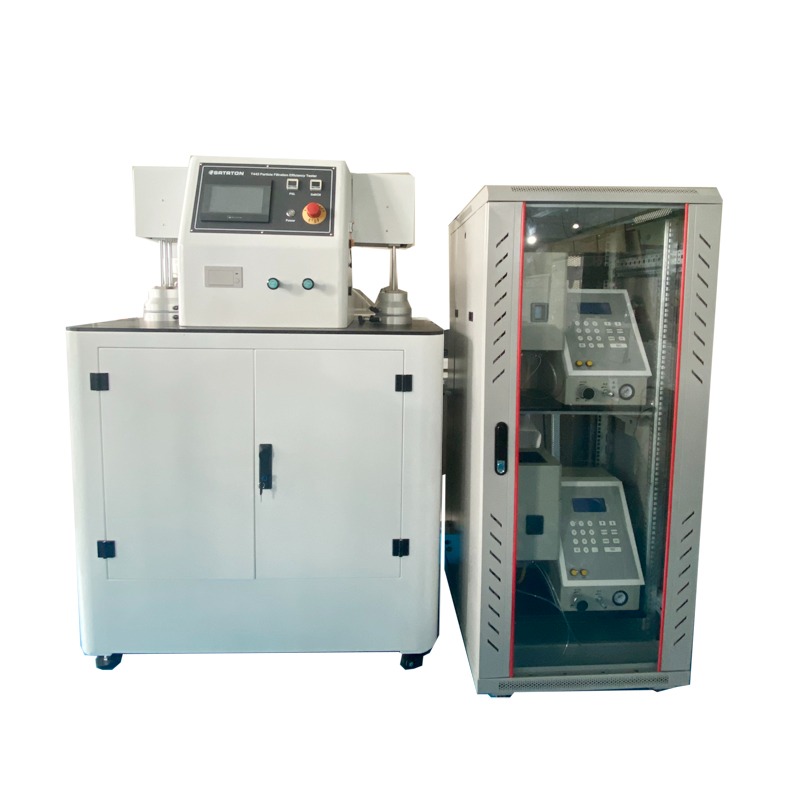

Filter Flow Resistance Tester
Filter Flow Resistance Tester Get a quote: Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Filter Flow Resistance Tester operates by circulating a test fluid (such as hy...
Textile Flatness Tester
Textile Flatness Tester The Textile Flatness Tester is ideal for industries and scenarios including: Apparel and Garment Manufacturing – Ensures fabric evenness and...
Thermal Manikin System
Thermal Manikin System Get a quote: Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Full-body mannequin for enhanced clothing testing Walter Sweating Fabric Manikin ...
All supplier products

Same products

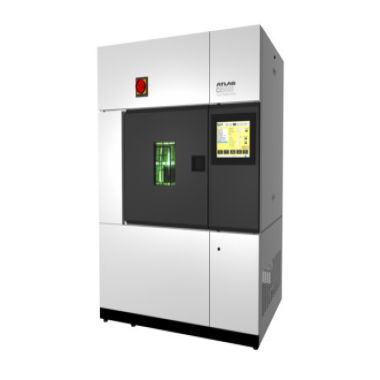

Tabletop Xenon Arc Weathering Tester (SunMaster)
