Multi-Functional Scratch Tester
Multi-Functional Scratch Tester is suitable for testing automotive interior materials, plastic, rubber, leather, coated fabric, coating materials, composite materials, paint, ink, soft metal and other industries, and widely used in product quality control, new product development performance verification, detection mechanism test and other fields.
Standards
PV 3952 Plastic interior parts scratch resistance test
Ford BN 108-03.13 Scratch resistance test
BMW 0180. PA-P 028 Scratch resistance test (Cross-cut method)
BMW GS 97034-9. PA 0015 Scratch resistance test
DAF KEUR 00824-401 Scratch resistance test (Cross-cut method)
DAF KEUR 00824-402 Scratch resistance test
GME 60401 Scratch resistance test (Cross-cut method)
GM 14829 Scratch resistance test (Cross-cut method)
Jaguar-Landrover TPJLR.52.004 Scratch resistance test
GM N 3943 Scratch resistance and scratches for plastics - Five fingers test
LP 463DD-18-01 Scratch resistance and scratches for plastics - Five fingers test
GMW 14130.14688 Scratch resistance test
8350Z-SDA-9000 Scratch resistance test
NES M M0159 Polypropylene interior parts scratch resistance test
Features
1. The instrument consists of the motor drive mechanism, scraping components, sample clamping fixtures and other components.
2. Scratch components include scraper brackets, scraping fingers, Scratches positioning sleeve, presses device (weights and weight support bars).
3. The instrument can be free to install, replace, disassemble different specifications of the scraping fingers. it also can impliments uniform speed unidirectional straight line scratch movement under different load .
4. The instrument that adopts embedded systems, man-machine interface operation automatically controls the test process . The use of precision servo motor, ball screw drive has a decisive role in controlling the scratch speed accuracy under the relevant standards .
5. The instrument uses tungsten carbide material to make scraping finger for increasing the instrument life.
6.The instrument which uses aluminum and stainless steel is appearance concisely、 lightweight and corrosion-resistant.
Technical Parameters
| Items | Parameters |
| Test partition | Finger / plastic finger scratch test |
| Stroke range | 10-200mm |
| Speed range | 10-200mm/s |
| Speed buffer | 10±1mm |
| Scratch pressure | 2N，3N，5N，7N，8N，10N，12N，15N，20N (Optional) |
| 100 cross-cut scratches moving distance | 0.5mm-2mm(Below 2mm should be equipped with a special scratch) |
| Scratch head material | Stainless steel; tungsten carbide (optional) |
| Scratch head diameter | 0.5mm、0.75mm、1mm（Erichsen318）、3mm、5mm、7mm |
| Plastic finger (optional) |
Poly (PMMA); diameter 16 mm, thickness 1 mm, edge radius 0.5 mm, hardness shore D85. |
Send product request
Other supplier products
 |
Safety Helmets Against Molten Metal Splashing Tester | The Safety Helmets Against Molten Metal Splashing Tester is designed to evaluate helmet performance under extreme thermal hazards, simulating molte... |
 |

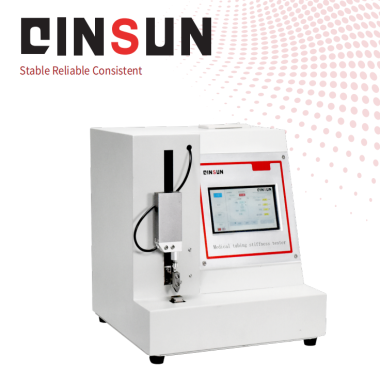

Medical injection needle rigidity tester | The Medical Injection Needle Rigidity Tester is designed to evaluate the mechanical rigidity of medical injection needles. It measures deflection a... |
 |
