Fabric Anti-Electromagnetic Radiation Performance Tester

Get a quote:

Whats/App: +86 185 0176 3615

Web: qinsun-lab.com

Application

This tester is widely used for:

Evaluating shielding performance of electromagnetic shielding fabrics for garments and protective materials.

Testing coatings, conductive films, and metal meshes for electronics, aerospace, and automotive applications.

Assessing absorptive and reflective properties of planar materials against electromagnetic waves.

Research and development of EMI/EMC compliant textiles and composite materials.

Quality control in textile manufacturing and material certification labs.

Standards

GB/T 23326 – Electromagnetic shielding textile test standard (China)

GB/T 25471 – Electromagnetic shielding material testing method (China)

ASTM D4935 – Standard test method for measuring the electromagnetic shielding effectiveness of planar materials using a coaxial transmission line

SJ2054 – Coaxial method for conductive materials (China)

Features

(1) Uses coaxial test method, ensuring high transmission characteristics and testing accuracy.

(2) Supports full-frequency scanning, list scanning, and point-frequency measurements.

(3) Automatic control of signal emission and reception, data collection, curve display, and micro-printer output.

(4) Evaluates both absorption and reflection performance of planar materials.

(5) RS232 interface for computer connection, curve display, data analysis, and storage.

(6) USB interface for mobile data storage via flash drives.

(7) User-friendly interface with automated measurement and data processing.

Technical Parameters

1. Signal Source

ParameterSpecification
Frequency Range 300 KHz – 3000 MHz
Frequency Stability ≤ ±5×10⁻⁶
Frequency Resolution 1 Hz
Signal Purity ≤ -65 dBc/Hz (10 KHz offset)
Output Level -45 dBm – +10 dBm
Level Accuracy ±1.5 dB
Harmonic Suppression ≥30 dB (1 MHz–3 GHz), ≥25 dB (300 KHz–1 MHz)
Directivity ≥50 dB
Power Scanning -8 dBm – +5 dBm
System Impedance 50 Ω

Send product request

To: Standard Groups
Your E-mail:
Message text:


Send to other suppliers

Other supplier products

Water Vapour Permeability Tester
Water Vapour Permeability Tester Get a quote: Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Water Vapour Permeability Tester is a constant temperature and humidity instru...
Footwear Dynamic Waterproof Tester
Footwear Dynamic Waterproof Tester Get a quote: Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Footwear Dynamic Waterproof Tester is designed to evaluate the waterproof perf...
Fire Retardant Coating Tester – Large Plate Method | ASTM ISO Testing Machine
Fire Retardant Coating Tester – Large Plate Method | ASTM ISO Testing Machine Get a quote: Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Fire Retardant Coating Tester (Large Plate Method) is designed to evaluate the...
Fabric thickness tester - lab instrument
Fabric thickness tester - lab instrument Get a quote: Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Email: serving@qinsun-lab。com We are a professional testing instrument manufactur...

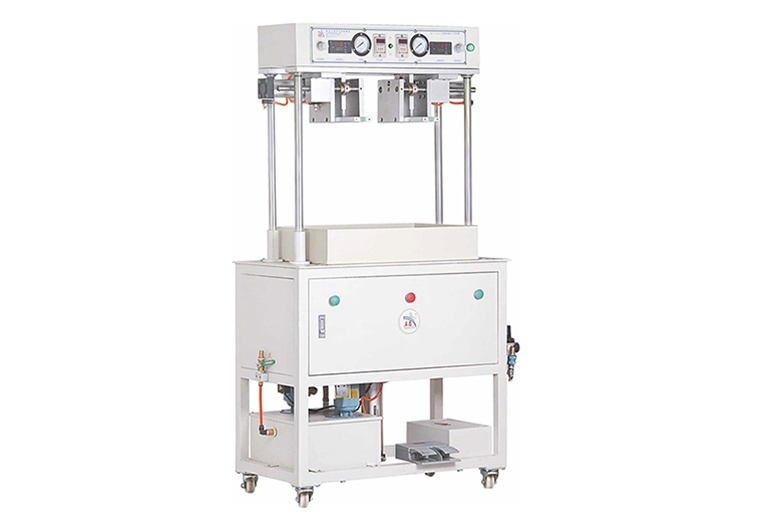

Waterproof socks testing machine
