Coated fabric flexing resistance testing machine
The Coated Fabric Flexing Resistance Testing Machine evaluates the flexing resistance of coated fabrics by winding fabric strips into cylindrical samples and placing them between two rotating cylinders. One cylinder reciprocates along its axis to compress and relax the fabric tube, simulating repeated folding and bending until the preset cycle count is reached or the sample fails. This provides critical data on the durability and mechanical performance of coated fabrics under repeated stress.
Application
(1) Testing coated fabrics for upholstery in furniture and automotive interiors.
(2) Evaluating protective clothing materials such as PVC-coated or PU-coated fabrics.
(3) Quality control for outdoor gear including tents, backpacks, and tarpaulins.
(4) Assessment of industrial textiles like conveyor belts, protective covers, and chemical-resistant coatings.
(5) R&D for high-durability laminated fabrics, synthetic leather, and decorative coatings.
(6) Testing medical textiles such as coated bed sheets, surgical drapes, and protective garments.
(7) Evaluation of fashion and apparel coated fabrics for performance under bending and folding stress.
Standards
(1) ISO 7854 – Coated fabrics — Determination of resistance to flexing (dynamic method)
(2) GB/T 12586-B – Coated fabrics — Flexing endurance test
(3) BS 3424:9 – British standard for coated fabric flexing resistance
(4) ASTM D2097 – Standard test method for tearing strength of coated fabrics
(5) JIS L1096 – Japanese standard for coated fabric mechanical performance
(6) EN 1421 – European standard for PVC-coated fabrics — Flexing resistance
(7) ISO 5470-2 – Rubber- or polymer-coated textiles — Determination of abrasion and flexing properties
Features
(1) Precise motor control system ensures consistent cylinder rotation and reciprocation.
(2) Cam-driven mechanism guarantees stable performance during prolonged test cycles.
(3) Imported precision guide rails enhance durability and reduce wear.
(4) Compact laboratory-friendly design.
(5) Easy operation with adjustable cycle counts for different fabric types.
Parameters
| Parameter | Specification |
|---|---|
| Clamps | 6 sets |
| Rotation Speed | 8.3 Hz ±0.4 Hz (498 ±24 rpm) |
| Cylinder Outer Diameter | 25.4 ±0.1 mm |
| Stroke | 11.7 ±0.35 mm |
| Clamp Width | 10 ±1 mm |
| Clamp Distance | 36 ±1 mm |
| Sample Size | 50 × 105 mm |
| Dimensions (L×W×H) | 40 × 55 × 35 cm |
| Weight | ≈65 kg |
| Power Supply | 220V, 50Hz |
Send product request
Other supplier products
 |
Mullen & G229B Bursting Strength Tester | Bursting Strength Testeris widely used in textile , leather , paper and other fields. The bursting strength and height of woven, knitted, non-woven... |
 |
xenon lamp aging test chamber | The Ci Series Weather-Ometers are the most widely used rotating rack water-cooled xenon-arc weathering testing instruments in the world. Their larg... |
 |
Automotive connector insertion and withdrawal force testing machine | StandardsDesigned to meet rigorous automotive industry standards, including ISO 5023, IEC 60512, and USB-IF specifications, our testing machine ens... |
 |
versatile xenon lamp weathering aging tester | Standard The Qinsun 440 is engineered to meet stringent international testing standards, including ASTM G155. ISO 105 B02. SAE J2412. and IEC 68-2... |
 |
Multi-Functional Scratch Tester | Multi-Functional Scratch Tester is suitable for testing automotive interior materials, plastic, rubber, leather, coated fabric, coating materials, ... |
Same products
 |

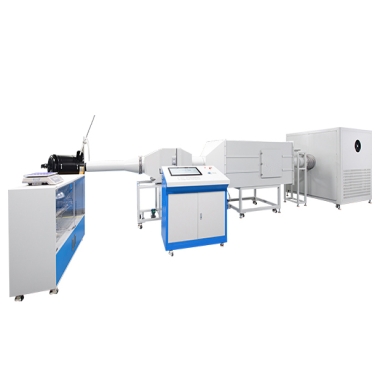

Air Intake Filter Test System | Seller: Standard Groups | The Air Intake Filter Test System is designed for testing industrial air filters and engine air f... |
 |
