Automatic dry cleaning tester
Automatic dry cleaning testers have wide applications in multiple fields, primarily including the following:
Textile Industry: Testing the appearance, color, and dimensional changes of various textiles (such as heat-fused interlinings and garment fabrics) after dry cleaning to assess their quality.
Apparel Manufacturing and Retail: Apparel manufacturers use dry cleaning and washing cylinder instruments to conduct dry cleaning tests on finished products during production to ensure that garments maintain their original appearance and quality after dry cleaning.
Combustion Test Preparation: Dry cleaning and washing cylinder instruments can also be used to prepare samples for combustion tests. Through dry cleaning, the samples are brought to the specific state required for combustion testing, thereby improving the accuracy and reliability of the test.
Scientific Research and Education: In the fields of textile science and materials science, dry cleaning and washing cylinder instruments can be used to study the influence of different factors on the dry cleaning performance of textiles, providing experimental support for scientific research.
Education and Training: In teaching experiments in textile, apparel, and related majors, dry cleaning and washing cylinder instruments are used for practical teaching, helping students master the methods and skills for testing the dry cleaning performance of textiles.
Instrument Purpose
The YG-6 Fully Automatic Dry Cleaning Tester is used to evaluate the physical properties of wool, fur, cotton-linen, worsted, and synthetic fabrics, as well as garments, after dry cleaning. It measures changes in appearance color, dimensional stability, and peel strength.
Standards
GB/T 19981.2:Textiles - Professional care, drycleaning and wetcleaning of fabrics and garments - Part 2: Procedure for testing performance when cleaning and finishing using tetrachloroethene
ISO 3175.1:Textiles - Drycleaning and finishing - Part 1: Performance specifications for the drycleaning and finishing of garments
FZ/T 01013:Textiles - Determination of dimensional change after perchloroethylene drycleaning by mechanical method
FZ/T 80007.3:Dry wash resistance test method for garments using adhesive interlining
FZ/T 01083:Testing method for surface appearance and dimensional change on dry cleaning for fusible interlinings
Technical Parameters
| Working Mode | Microcomputer-controlled; automatic testing; LCD Chinese display; alarm sound prompt |
| Rated Capacity | 8kg |
| Drum Specifications | φ715×340mm |
| Liquid Tank Capacity | 90L (1st tank), 80L (2nd tank), 98L (3rd tank) |
| Distillation Tank Capacity | 72L |
| Washing Speed | 45r/min |
| Dehydration Speed | 420r/min |
| Drying Time | 1–99 minutes |
| Odor Exhaustion Time | 1–99 minutes |
| Drying Temperature | Room temperature to 60±3°C |
| Power | AC380V, 50Hz, 5KW, three-phase four-wire system |
Send product request
Other supplier products
 |
Coating Thickness Gauge | The Coating Thickness Gauge is a high-precision contact-type thickness measuring instrument designed for accurate determination of thickness for fi... |
 |

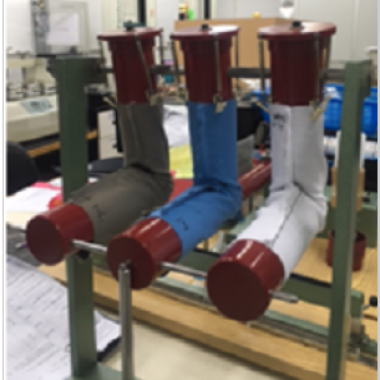

Fabric Static Stress Resistance Tester - Test Equipment | Product Name Fabric Static Stress Resistance Tester Applicable Standards DIN 53860 - 1: Inspection of textiles - Inspection of planar fabric sac... |
 |

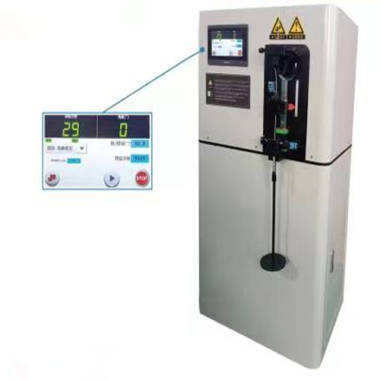

Metal Wire Repeated Bending Tester | The Metal Wire Repeated Bending Tester is designed to evaluate the bending fatigue performance of metal wires under repeated stress. It measures th... |
 |

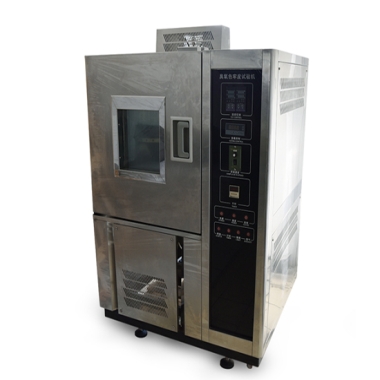

Ozone Test Chamber | Ozone testing laboratories have wide applications in various fields, including but not limited to: Material aging testing: Used to evaluate the ag... |
 |

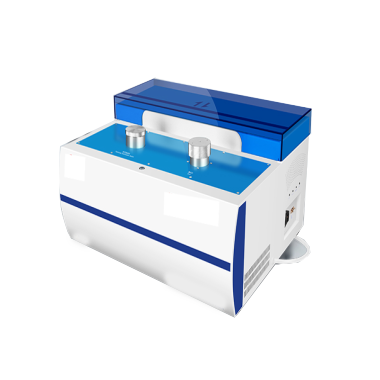

Bubble Pressure Method Membrane Pore Size Analyzer| Testing Equipment | Instrument Standard Standard AbbreviationEnglish Translation GB/T 42269-2022 Pore Size of Separation Membranes - Gas Permeation Method... |
