Medical Compression Stocking Tester
The MST Medical Compression Stocking Tester is a professional instrument designed to evaluate the compression performance, elasticity, and durability of medical-grade compression stockings. It ensures compliance with international and domestic healthcare and textile standards by measuring pressure distribution, hysteresis loss, and fabric resilience under repeated stress cycles. The compact design makes it suitable for laboratory and clinical environments.
Applications
The instrument is widely used for quality control of medical compression stockings, research and development of pressure-mapping hosiery, clinical validation of therapeutic compression levels, and forensic evaluation of garment failures.
Standards
(1) ISO 13994 – Medical Compression Garments Standard
(2) AATCC 139 – Textile Elasticity Test Standard
(3) YY/T 0561 – Chinese Medical Hosiery Standard
(4) ISO 17025 – Calibration of Testing and Measuring Equipment
(5) ASTM D 3100 – Standard Test Methods for Stretch and Recovery of Textile Fabrics
(6) EN 13795 – Performance Requirements for Surgical Clothing and Drapes
(7) IEC 60601-1 – Safety Requirements for Medical Electrical Equipment
Parameters
| Parameter | Specification |
|---|---|
| Pressure Measurement | Capacitive sensor array, 0.1 mmHg resolution |
| Pressure Range | 15–50 mmHg, adjustable |
| Test Modes | Static pressure (1-minute hold) / Dynamic cyclic loading (10–100 cycles) |
| Elastic Recovery Rate | ≥95% |
| Sample Size | 30×300 mm (calf segment simulation) |
| Sample Clamping | Adjustable vacuum chuck (5–50 N grip force) |
| Data Output | Pressure-time curve and CSV export |
| Power Supply | 220V/50Hz, 0.8 kW |
| Dimensions (L×W×H) | 600×400×800 mm |
Send product request
Other supplier products
 |
MST clothing pressure tester - lab instrument | TheMST Medical Compression Stocking Testeris a specialized instrument designed to evaluate the compression performance, elasticity, and durability ... |
 |
Dental material color stability tester | The Dentistry Base Polymer Search Stability tester evaluates color stability of dental base polymers (used in restorations like dentures) under var... |
 |

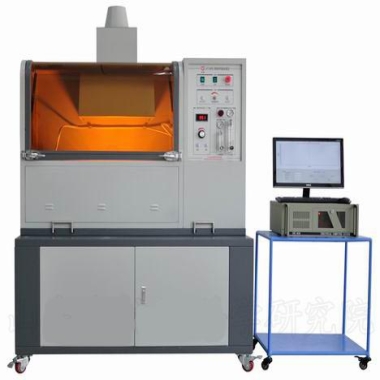

Thermal Radiation Performance Tester(RPP) | Thermal protective clothing and some fire-retardant properties of the material refers that human body carry out security protection who work under ... |
 |
