Glow wire tester
F242 Glow-wire tester simulates thermal stress from heat sources to test circuit component flammability, widely used in electronics, appliances, etc. It predicts circuit safety, controls production, and verifies performance. The test applies short-term heat to samples, assessing fire risk by observing light-off states. It measures ignition hazards of materials by burning them at specified temps and pressures.
Standards
ASTM D 6194-03:Standard Test Method for Glow-Wire Ignition of Materials
ASTM D6194:Standard Test Method for Glow-Wire Ignition of Materials
IEC 60695-2-10:2021:：Fire hazard testing - Part 2-10: Glowing/hot-wire based test methods - Glow-wire apparatus and common test procedure
IEC 60335:Household and similar electrical appliances – Safety
IEC60695-2-1:Fire hazard testing - Part 2-1: Test methods - Section 1: Glow-wire test methods - General
IEC60695-2-10:Fire hazard testing - Part 2-10: Glowing/hot-wire based test methods - Glow-wire apparatus and common test procedure
IEC60695-2-11:Fire hazard testing - Part 2-11: Glowing/hot-wire based test methods - Glow-wire flammability test method for end-products
IEC60695-2-12:Fire hazard testing - Part 2-12: Glowing/hot-wire based test methods - Glow-wire flammability index (GWFI) test method for materials
IEC60695-2-13:Fire hazard testing - Part 2-13: Glowing/hot-wire based test methods - Glow-wire ignition temperature (GWIT) test method for materials
UL 746 A:Standard for Polymeric Materials - Use in Electrical Equipment Evaluations
VDE 0620:Electrical Appliances - Safety Requirements for Household and Similar Purposes
GB/T 5169.10-2006:Fire hazard testing for electric and electronic products - Part 10: Glow-wire test method - General
EC :Fire hazard testing for Electrical and electronic products -- Part 10: Glowing-wire/ Hot-wire based test method, Glowing-wire apparatus and common test procedure.
GB/T 5169.11-2006/IEC :Fire hazard testing for Electrical and electronic products -- Part 11: Glowing-wire/Hot wire basic test method, Glowing-wire flammability test method for finished products.
GB/T 5169.12-2006/IEC :Electrical and electronic products ,Part 12: Glowing- wire/Hot-wire based test method, Glowing-wire flammability index (GWFI) test method for materials.
GB/T 5169.13-2006/IEC :Electrical and electronic products ,Part 13: Glowing- wire/Hot wire basic test method, Glowing-wire flammability (GWFI) test method.
Parameters
|
Enclosure: It is equipped with observation window, inner black fireproof material coating. |
special standard ring, horizontal static Temperature sensing delay : 1.7S |
|
Control screen: Intelligent touch Observation window: transparent |
Transformer parameters: 500VA, secondary: 2.5V, 150A Sample load: 1.0N ± 0.1N |
|
Test speed: 10mm/s ~~25mm/sadjustable |
Glowing depth: 0~9mm can be preset |
|
End of test: buzzer sounds, test piece automatically detaches |
which is controlled by high-precision steppermotor. Glowing time: 0~99s |
|
Test cabinet size: 885mmX580 mm× 1000 mm |
Effective volume ofthe test area : ≥0.5m3 |
|
Pressure limiting depth: 7mm |
Exhaust pipe diameter: 100mm |
|
Testtemperature: room temperature~999C (adjustable) |
Physical dimension: 1000mm×650mm×1250mm |
|
Glowing-wire material: ¢4mm, Ni/Cr (80/20), |
Weight: 90kg |
|
Temperature measuring element: armored K-type thermocouple(¢0.5mm), -200~1300C, precision 1C |
Power supply: 220V 50Hz |
Send product request
Other supplier products
 |
Cabin Air Filter Test System（Gas Adsorption） | The Filter Test System for gas adsorption/desorption of air filters for passenger compartments (DIN 71460-2, ISO 11155-2). The Adsorption Test Stan... |
 |

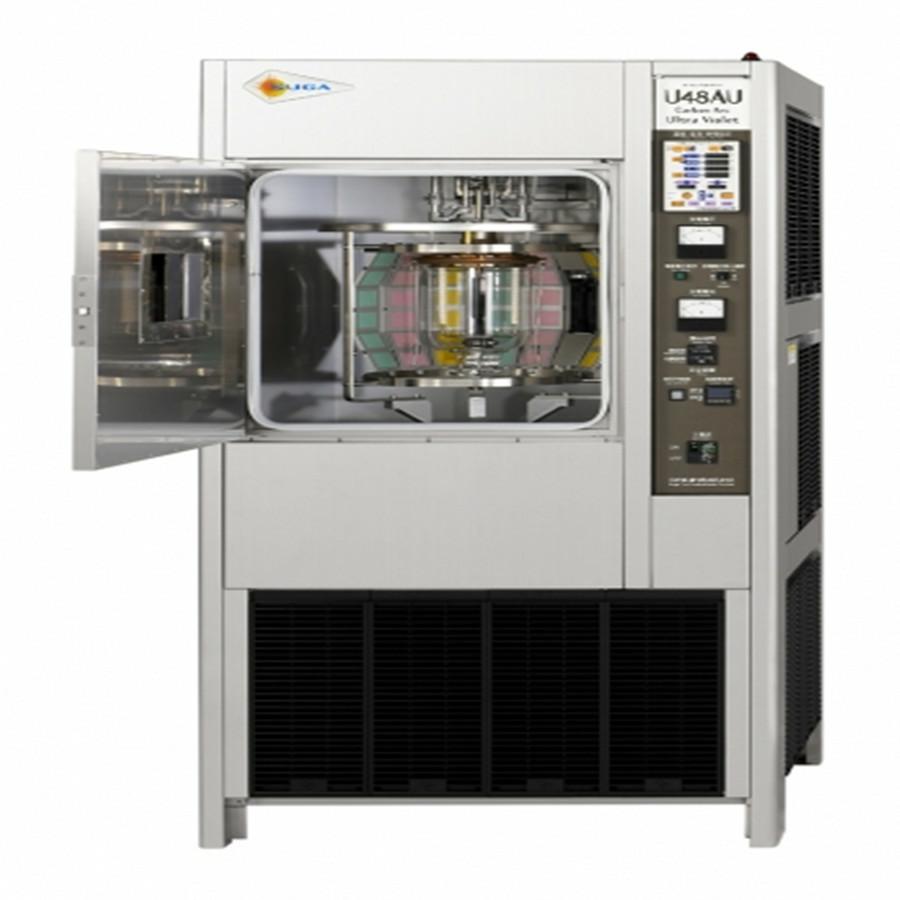

Carbon Arc Weathering Tester | Carbon Arc Weathering Tester utilizes eight sunlight carbon arc lamps capable of providing approximately 78 hours of continuous illumination. These... |
 |
