Indicative Fire Resistance Test Furnace | ISO 834-1, EN 1363-1
The Fireproof Coating Test Furnace evaluates thermal insulation and fire resistance of steel-structure coatings, complying with GB 14907-2018. It features automatic fire-curve tracking, stable pressure control, precise temperature measurement, and an intelligent platform, offering a reliable, highly automated testing environment for labs, inspection centers, manufacturers, and certifiers.
Standards
This instrument is developed and manufactured in accordance with the following standards:
Primary Standards
GB 14907-2018 – Fire-Resistant Coatings for Steel Structures
GB/T 9978-2008 – Fire-Resistance Tests for Building Construction Elements
International Standards
Although the furnace is primarily based on Chinese national requirements, its fire-curve control and measurement systems align with major global fire-test methodologies, including:
ISO 834 – Standard Fire Resistance Test Curve
EN 13381 Series – Test methods for determining the contribution of fire protection materials to structural elements
ASTM E119 – Standard Test Methods for Fire Tests of Building Construction and Materials
BS 476 (Part 20–24) – Fire tests on building materials and structures
This compatibility allows the furnace to support laboratories that reference or compare international fire-test systems.
Parameters
| Item | Specification |
|---|---|
| Working Voltage | AC 220V ± 10%, 50 Hz |
| Power Consumption | 3 kW |
| Furnace Pressure Range | 0–100 Pa |
| Pressure Control Accuracy | 20 ± 3 Pa |
| Airflow Range | 0–50 m³/min |
| Airflow Accuracy | ≤ ±0.5 m³/min |
| Fuel Type | 0# or −10# diesel |
| Standard Fire-Curve Temperature Program | 60 min: RT–925°C; 120 min: RT–1050°C; 180 min: RT–1115°C; 240 min: RT–1150°C; 300 min: RT–1180°C; 360 min: RT–1210°C |
| Furnace Temperature Sensors | 4 pcs K-type armored thermocouples |
| Back-Surface Temperature Sensors | 2 pcs, accuracy ±4°C |
| Temperature Control Mode | Average or independent control |
| Heating Mode | Fully automatic diesel spray burner |
| Cooling Mode | Automatic exhaust and cooling |
| Timing Range | 0–360 min |
| Data Storage Capacity | ≥100 sets |
| Sample Size | 500 × 500 × 6 mm |
| Overall Dimensions | 1.6 m × 1.6 m × 1.6 m |
Send product request
Other supplier products
 |
Computer-controlled Explosion-proof Capillary Rheometer | The Computer-controlled Explosion-proof Capillary Rheometer is a laboratory rheological testing instrument used to determine the melt flow behavior... |
 |
Color Fastness Automatic Grading System | The Color Fastness Automatic Grading System is a precision instrument designed to evaluate textile colorfastness, including color change, staining,... |
 |
Mullen & G229B Bursting Strength Tester | Bursting Strength Testeris widely used in textile , leather , paper and other fields. The bursting strength and height of woven, knitted, non-woven... |
 |
Sweating Guarded Hotplate - Test Equipment | TheThermal and Water-vapour Resistance Testeris a special measurement device used for measurement of thermal and water-vapour resistance under stea... |
 |

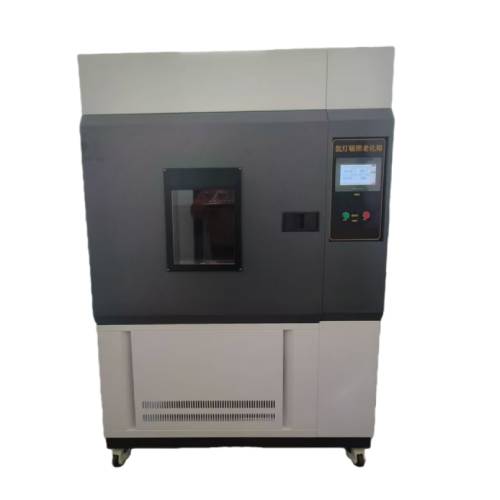

Flat-Panel Air-Cooled Xenon Lamp Weathering Test Chamber | Flat-Panel Air-Cooled Xenon Lamp Weathering Test Chamber employs xenon arc lamps capable of simulating the full solar spectrum to reproduce destruc... |
