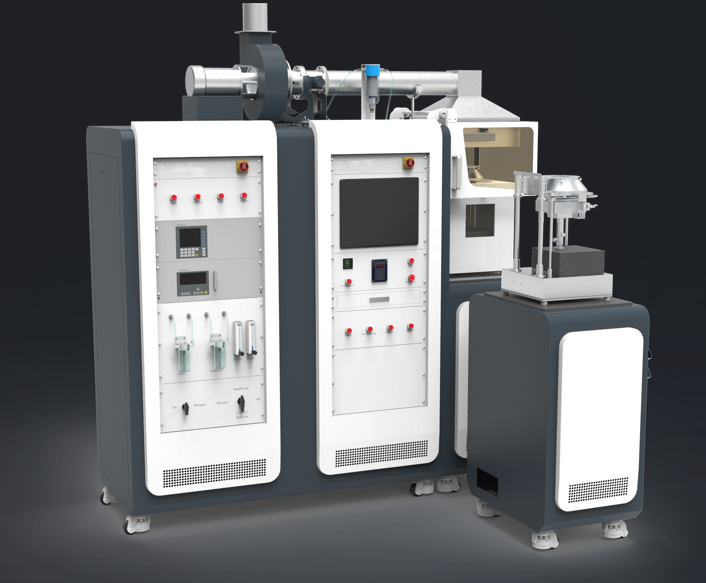

Cone calorimeter fire testing equipment
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
You can apply this apparatus in the following scenarios:
Material development: Evaluate thermal and combustion properties of building, decorative, or industrial materials.
Fire safety research: Study heat release, smoke generation, and flame propagation under controlled atmospheres.
Quality control: Monitor material performance to ensure compliance with fire safety standards.
Automotive and transportation: Assess heat release and smoke production of interior materials under varying atmospheric conditions.
Compatible test components: Loading unit, electric spark ignition system, exhaust and adsorption ducts, optical smoke measurement system, mass balance, data acquisition and processing software.
Standards
This apparatus conforms to the following international and national standards:
GB/T 16172‑2007 — Determination of heat release rate and total heat release of building materials and products (Cone Calorimeter Method)
ISO 5660‑1 — Heat release, smoke production, and mass loss measurement for building materials (Cone Calorimeter Method, Part 1)
ISO 5660‑2 — Heat release, smoke production, and mass loss measurement (Part 2: Flame spread testing)
ISO 5660‑4 — Heat release and smoke generation test for automotive interior materials
ISO 5660‑5 — Heat release, smoke production, and mass loss measurement: Additional assessment requirements
ASTM E1354 — Cone calorimeter method for heat release rate and visible smoke release
ASTM E2965 — Guidelines for assessing material combustibility using oxygen consumption
Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 2135 × 915 × 2810 mm |
| Weight | 650 kg |
| Mass Balance Range | 6000 g, resolution 0.01 g |
| Gas Analysis | German Siemens analyzer, high precision |
| Exhaust System | Condensation-type smoke treatment with triple filtration |
| Material Handling | Sample loading unit with automated placement |
| Software | Integrated data acquisition and analysis system |
| Operating Gas | Compressed air |
| Calibration Gases | Methane, N2. CO2/CO mixed gas |
| Power Requirement | 220V / 380V, 50 Amps |
| Operating Temperature | 10–35°C |
Accessories
Loading unit with automated sample placement
Electric spark ignition system
Condensation and exhaust duct system with triple filtration
Optical smoke measurement system
High-precision mass balance
Gas analysis system (Siemens analyzer)
Data acquisition and integrated software system
Calibration gases: Methane, N2. CO2/CO mixture
