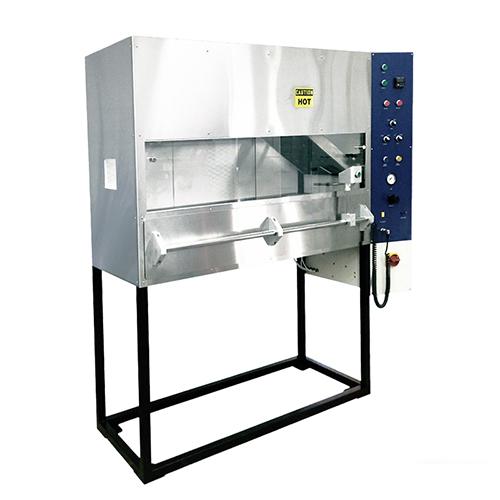

Flame spread tester for thermal and acoustic insulation materials
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
You can apply this tester in the following scenarios:
Aerospace material testing: Evaluate flame propagation of thermal and acoustic insulation materials in aircraft interiors.
Civil aviation compliance: Test materials in accordance with FAA FAR Part 25 Appendix F Part VI.
Material development: Assess thermal and acoustic insulation performance during R&D.
Quality control: Monitor flame spread properties in production lines to ensure safety compliance.
Compatible test standards and protocols: FAR Part 25 Appendix F Part VI, Airbus AITM 2.0053. Boeing BSS 7365. MH/T 6042‑2006. and relevant national standards.
Standards
This tester conforms to the following national and international standards:
GB/T 27904‑2011 — Test method for flame spread of interior decoration materials
GB/T 25207‑2010 — Classification of combustion performance of building decorative materials
GB 8624‑2012 — Classification of burning behavior of building materials and products
GB/T 16172‑2007 — Determination of heat release rate and total heat release of building materials and products (Cone Calorimeter Method)
BSS 7365 — UK aerospace standard for combustion and smoke density of aerospace composite and interior materials
AITM 2.0053 — European aerospace industry method for heat release rate and smoke evaluation
FAR Part 25 Appendix F Part VI — FAA regulatory requirement for flame propagation, smoke density, and toxicity in civil aircraft cabin materials
Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 1220 × 570 × 520 mm; 1200 × 1150 × 1350 mm; 800 × 800 × 400 mm |
| Weight | 185 kg |
| Thermal Radiation Source | 400 VAC, 3-phase electric heating plate, PID control, ±0.1°C accuracy |
| Radiation Strip Width | 76 mm, six strips, operational up to 704°C |
| Sample Angle | 30° relative to horizontal plane |
| Ignition System | Axially symmetric propane burner, 0.15 mm nozzle |
| Burner Height | Flame at least 51 mm above sample plane |
| Flame Spread Measurement | Laser pointer for accurate monitoring |
| Thermocouple Placement | Back wall 279 mm, right wall 292 mm, below radiation plate 51 mm, ±2°C accuracy |
| Heat Flux Range | ≥60 kW/m², with self-circulating cooling water |
| Heat Flux Mounting | Steel plate 3.2 mm thick, with 3 × 25.4 mm insertion holes |
| Sample Holders | Standard and short versions (for hook-and-loop tests) |
| Data Acquisition | Computer and printer, automatic test timing ±0.1 s |
Accessories
Enclosed radiation test chamber with integrated chimney
3-phase electric heating plate with PID temperature control
Pneumatic sliding drawer for sample insertion and removal
Propane burner with 0.15 mm nozzle
Laser pointer for flame spread measurement
Thermocouples and mounting accessories
Water-cooled heat flux measurement system
Standard and short sample holders
Computer and printer with data acquisition system
